HEAD LAMP

ZX1100C1 ZZR1100 1990 EUROPE UK FR FG GR IT NR SD SP ST

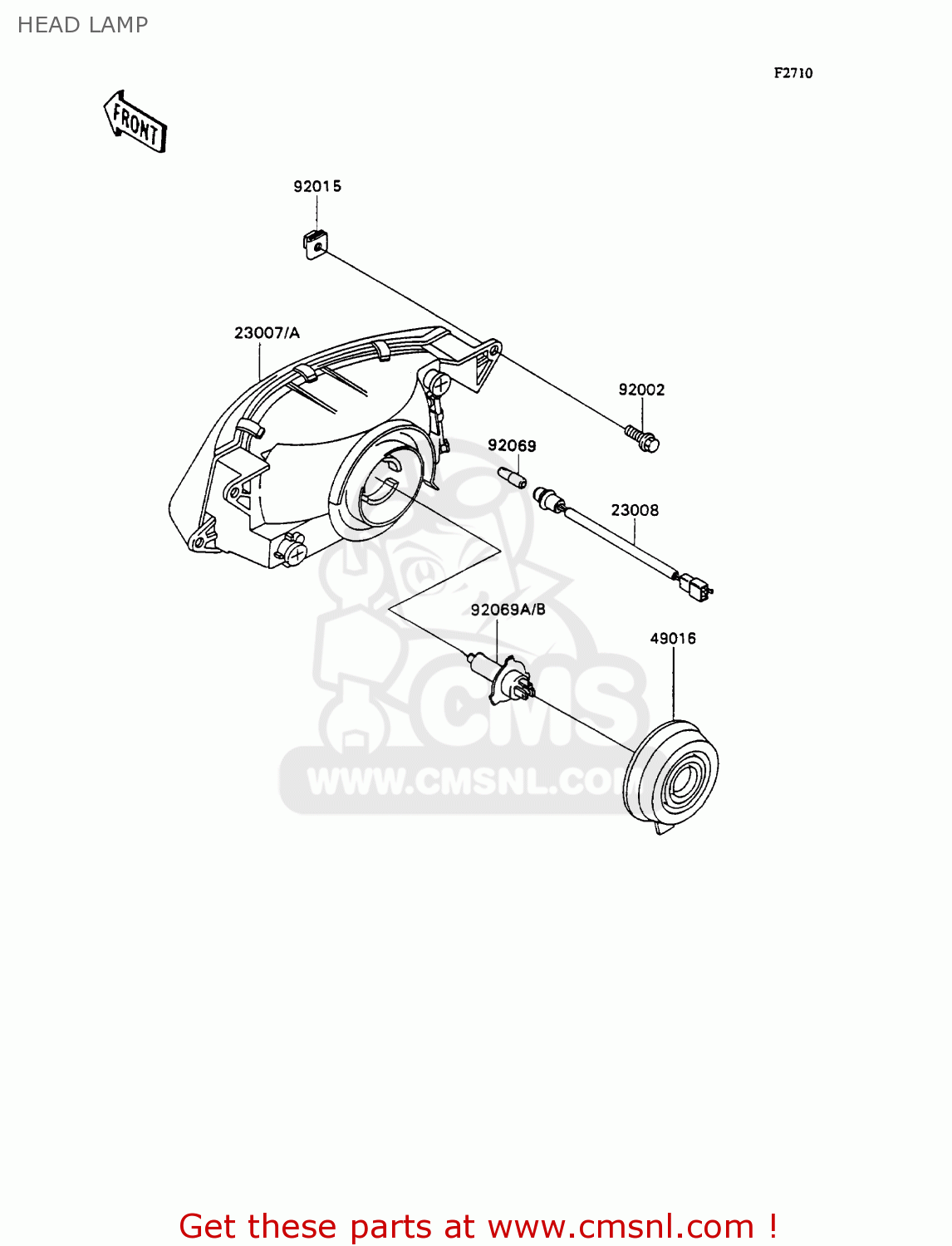

Head lamp diagram ZX1100C1 ZZR1100 1990 EUROPE UK FR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

23007

230071231
ref: 23007
AREUFGFRGRITNRSDSPST

LENS-COMP,HEAD LAMP

€ 309.50

23007A

230071232
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 364.50

23008

230081362
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 15.50

49016

490161137
ref: 49016

COVER-SEAL,HEAD LAMP

€ 10.50

92002

920021262
ref: 92002

BOLT,6X22

€ 2.00

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A
AREUFGGRITNRSDSPSTUK

BULB,12V-60155W

€ 15.00

92069B

920691004
ref: 92069B
FR

BULB,12V 60/55W,H4,YE

€ 15.00
