CRANKCASE BOLT PATTERN

ZX1100C1 ZZR1100 1990 EUROPE UK FR FG GR IT NR SD SP ST

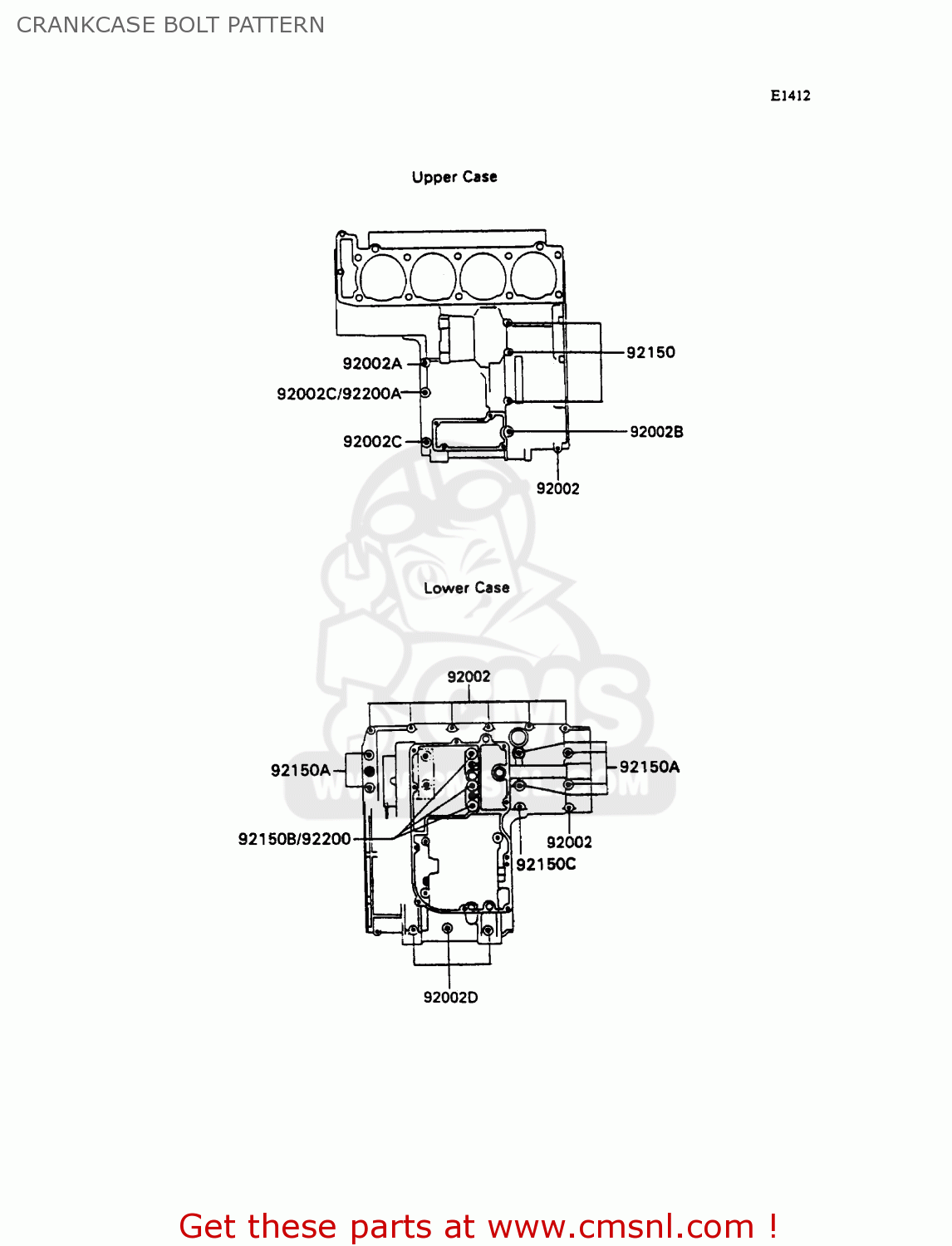

Crankcase bolt pattern diagram ZX1100C1 ZZR1100 1990 EUROPE UK FR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

92002

920011899
ref: 92002

BOLT,6X38

€ 2.50

92002A

920021054
ref: 92002A

BOLT,6X55

€ 3.00

92002B

920021306
ref: 92002B

BOLT

€ 3.50

92002C

920021308
ref: 92002C

BOLT

€ 5.50

92002D

920021654
ref: 92002D

BOLT

€ 4.50

92150

921501140
ref: 92150

BOLT

€ 4.00

92150A

921501364
ref: 92150A

BOLT,9X90

€ 5.50

92150B

921501365
ref: 92150B

BOLT,9X140

€ 6.50

92150C

921501367
ref: 92150C

BOLT,7X38

€ 4.50

92200

922001037
ref: 92200

WASHER,9.5X18X1.2

€ 2.00

92200A

922001063
ref: 92200A

WASHER

€ 2.50
