STAND(S)

ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST

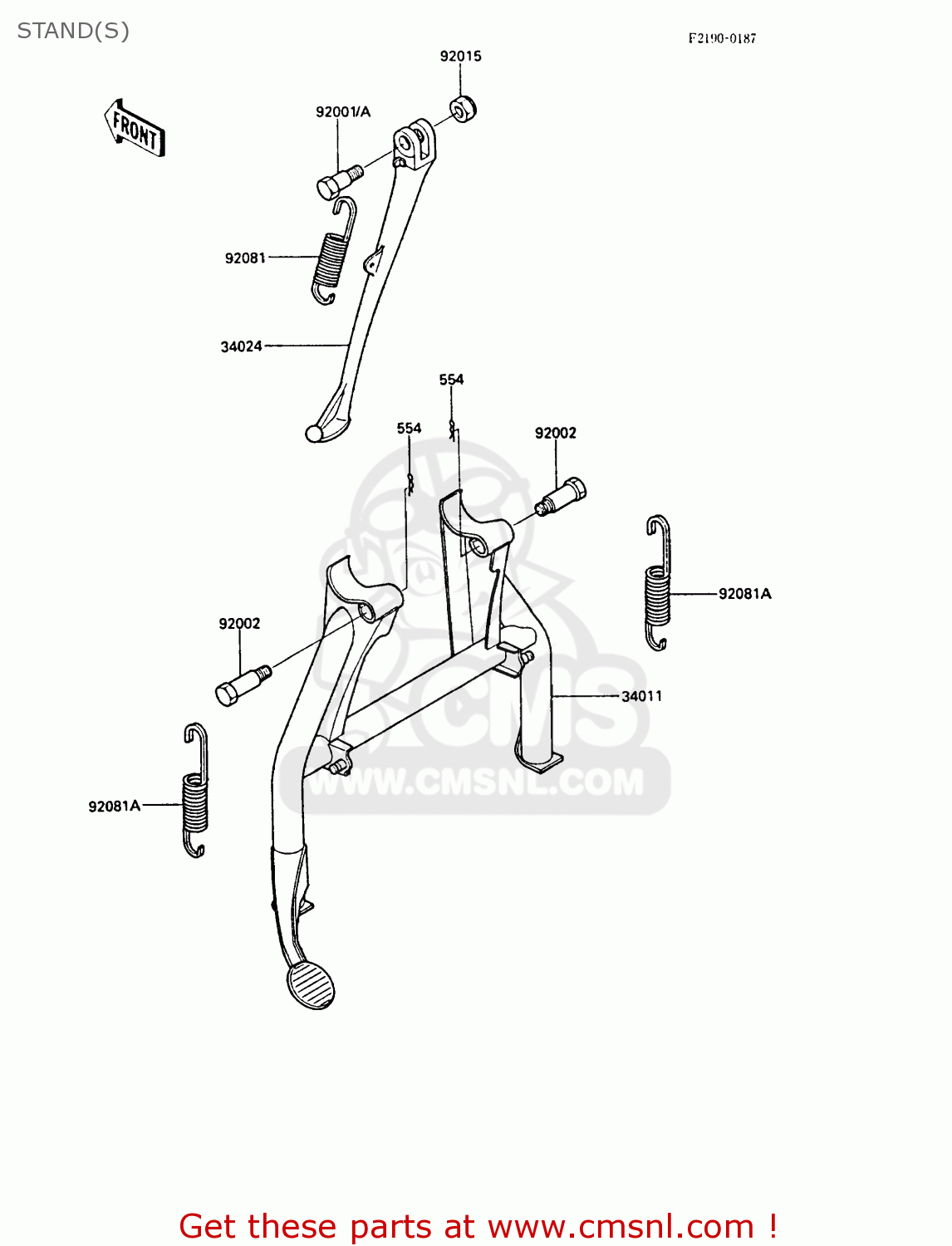

Stand(s) diagram ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

554

554A1000
ref: 554

PIN-SNAP,10MM

€ 1.00

34011

340111123
ref: 34011

STAND-CENTER

€ 133.50

34024

340241194
ref: 34024

STAND-SIDE

€ 78.50

92001A

92003157
ref: 92001A

BOLT,SIDE STAND FIT

€ 6.50

92002

920021630
ref: 92002

BOLT,CENTER STAND,10M

€ 8.00

92015

92019021
ref: 92015

NUT,LOCK,10M/M

€ 2.00

92081

920811952
ref: 92081

SPRING,SIDE STAND

€ 14.50

92081A

920811989
ref: 92081A

SPRING,CENTER STAND

€ 14.00
