HEADLIGHT(S)

ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST

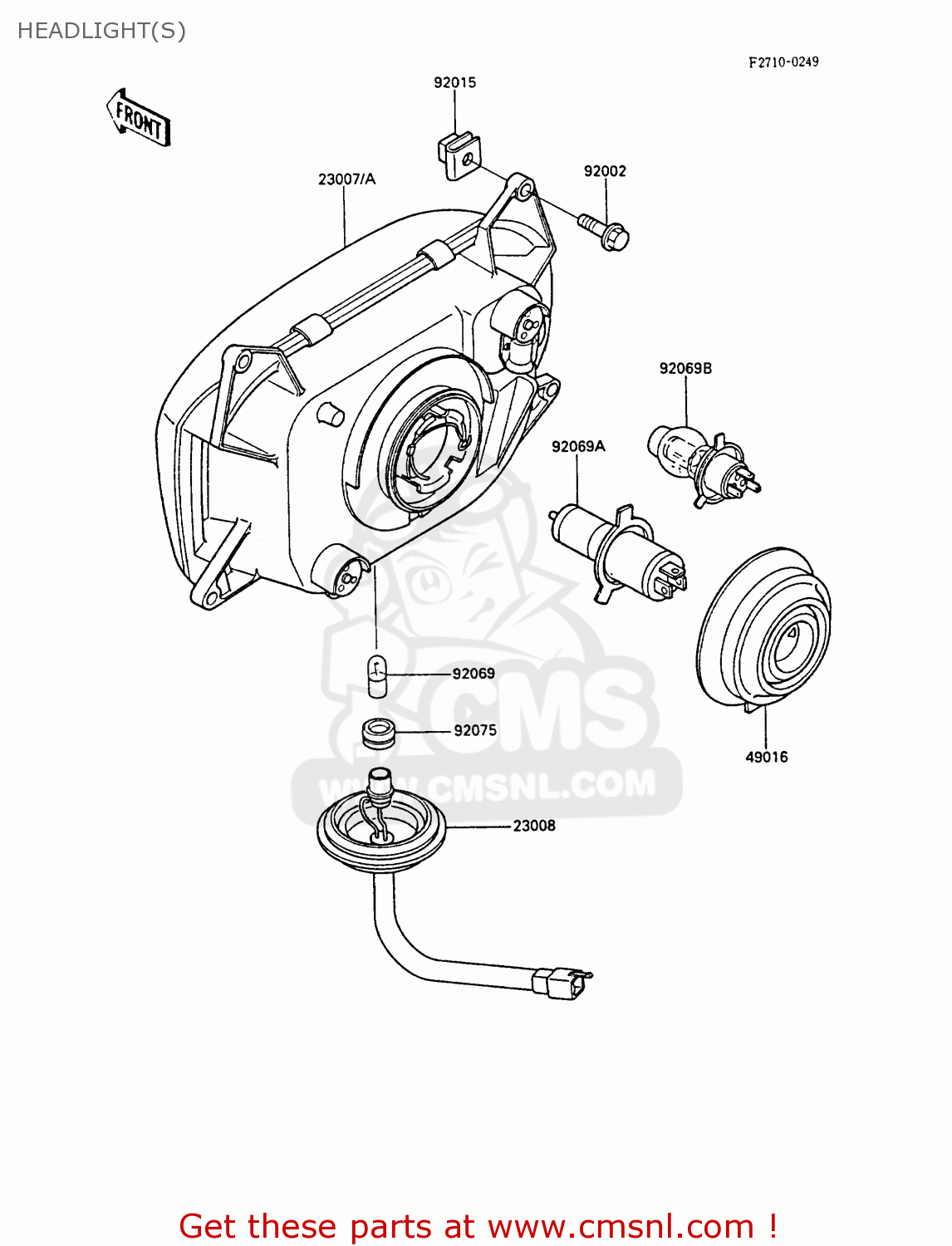

Headlight(s) diagram ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

23007

230071133
ref: 23007
EUFGFRGRITNRSDSPST

LENS-COMP,HEAD LAMP

€ 124.00

23007A

230071134
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 341.00

23008

230081268
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 15.50

49016

490161108
ref: 49016

COVER-SEAL,HEAD LAMP

€ 11.00

92002

920021135
ref: 92002

BOLT,6X25

€ 2.50

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A
EUFGGRITNRSDSPSTUK

BULB,12V-60155W

€ 15.00

92069B

920691004
ref: 92069B
FR

BULB,12V 60/55W,H4,YE

€ 15.00

92075

23066008
ref: 92075

DAMPER,PARKING LAMP

€ 3.00
