SHOCK ABSORBER(S)

ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST

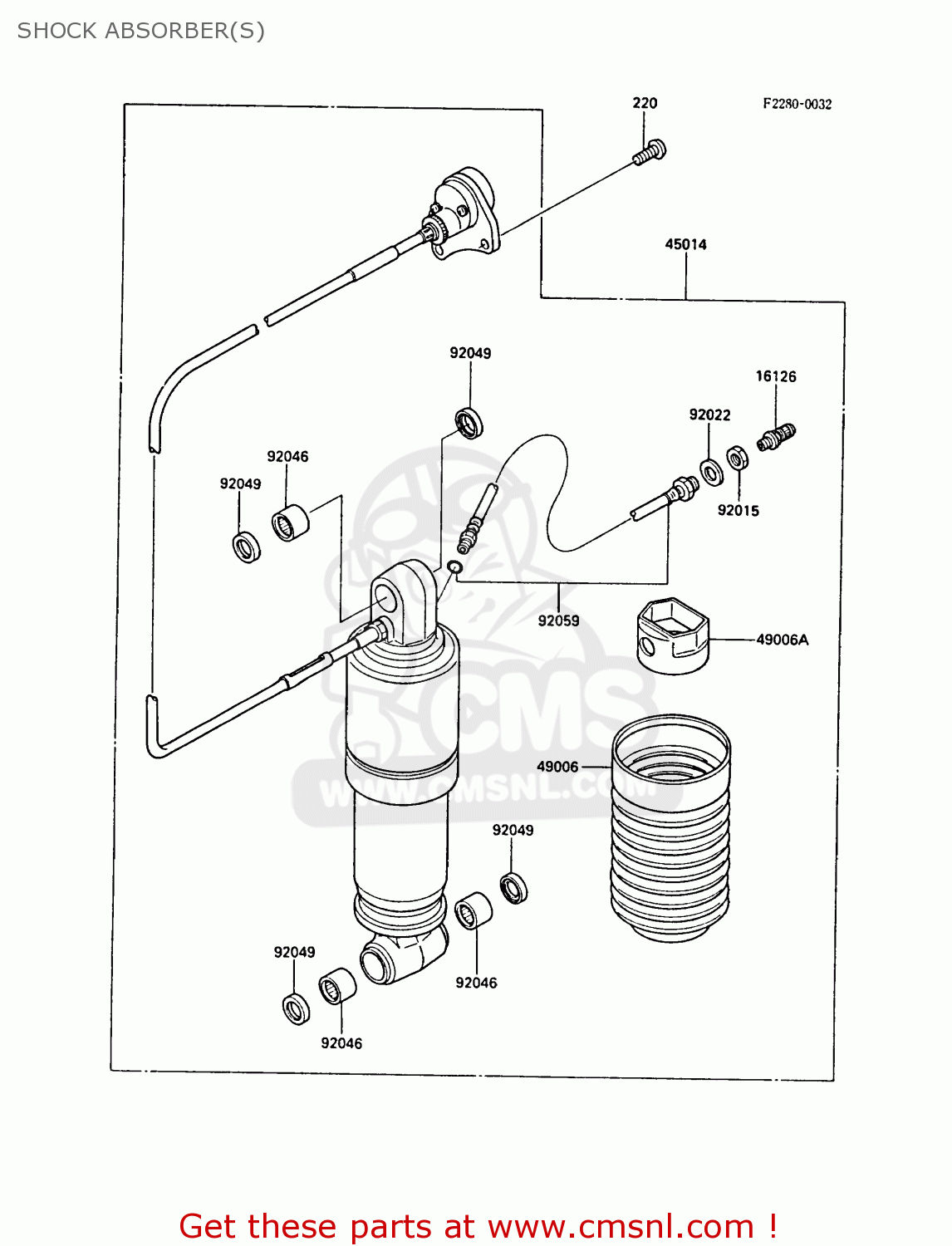

Shock absorber(s) diagram ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

220

220B0512
ref: 220

SCREW-PAN-CROS

€ 0.50

16126

161261143
ref: 16126

VALVE,AIR

€ 21.50

45014

450141311
ref: 45014

SHOCKABSORBER

€ 1,080.00

49006

490061151
ref: 49006

BOOT,RR SHOCKABSORBER

€ 36.00

49006A

490061186
ref: 49006A

BOOT,SHOCKABSORBER

€ 8.00

92015

920151305
ref: 92015

NUT,14MM

€ 4.00

92022

920221494
ref: 92022

WASHER

€ 3.00

92046

920461144
ref: 92046

BEARING-NEEDLE,18BM24

€ 27.50

92049

920491225
ref: 92049

SEAL-OIL,MHA18244

€ 7.50

92059

920591669
ref: 92059

TUBE,SHOCKABSORBER

€ 54.00
