Genuine ZX Kawasaki Parts delivered quickly!


IGNITION SWITCH

ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST

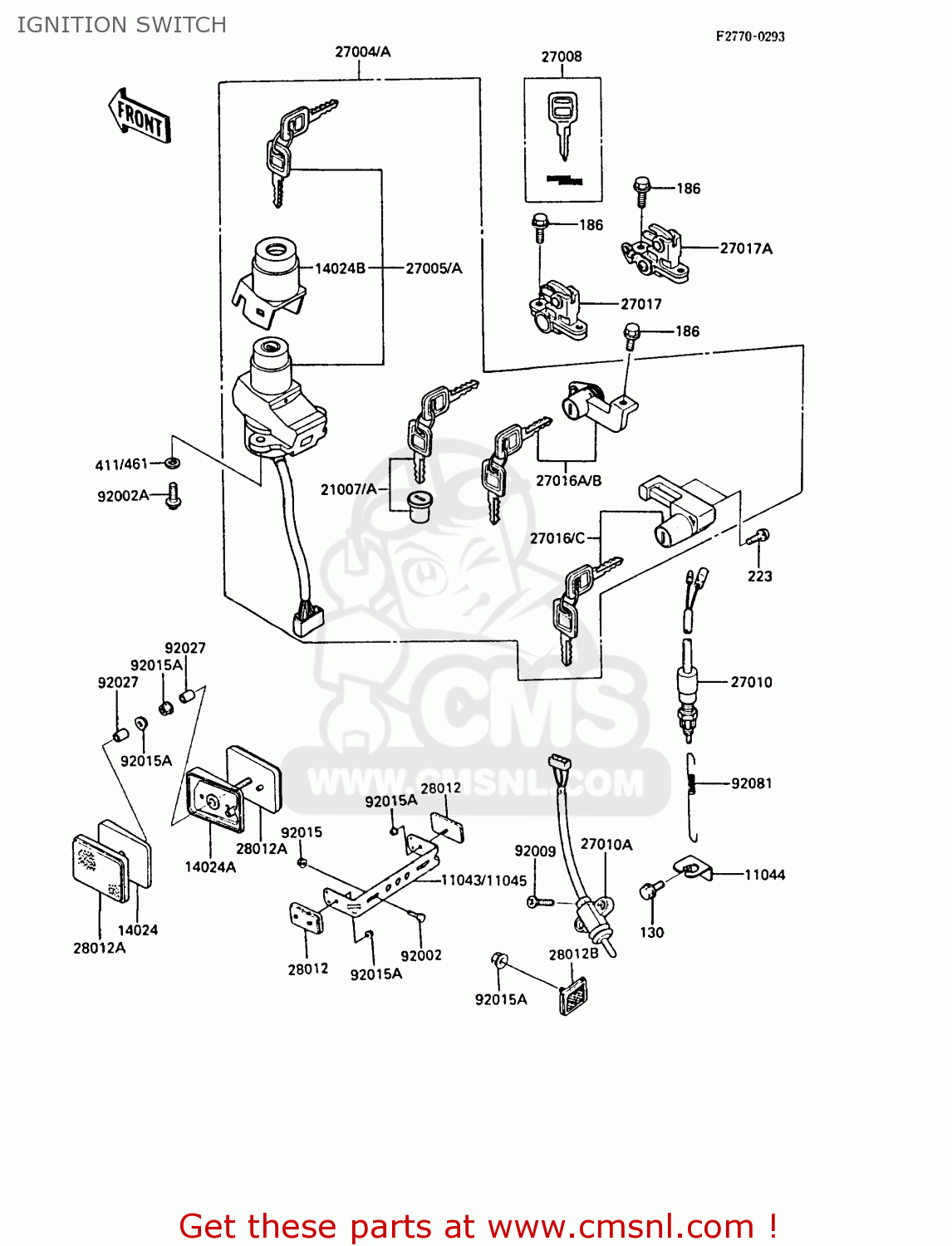

Ignition switch diagram ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST

IGNITION SWITCH ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST
IGNITION SWITCH ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST
IGNITION SWITCH ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11043
110431619
ref: 11043
EU
BRACKET,REFLECTOR,RR
110431619
€ 9.00
11044
110441210
ref: 11044
BRACKET,BRAKE SWITCH,
110441210
€ 3.50
14024
140241098
ref: 14024
EU
COVER,REFLECTOR,FR,LH
140241098
€ 8.00
14024A
140241099
ref: 14024A
EU
COVER,REFLECTOR,FR,RH
140241099
€ 8.50
14024B
140241630
ref: 14024B
EUFRGRITSPSTUK
COVER,IGNITION SWITCH
140241630
€ 9.00
21007
210075008
ref: 21007
EUFRGRITSPSTUK
ROTOR,TANK CAP
210075008
€ 65.50
21007A
210075011
ref: 21007A
FGNRSD
ROTOR,LOCK,TANK CAP
€ 65.50
27004
270045259
ref: 27004
EUFRGRITSPSTUK
SWITCH-ASSY
€ 275.50
27004A
270045260
ref: 27004A
FGNRSD
SWITCH-ASSY
€ 275.50
27005
270055051
ref: 27005
EUFRGRITSPSTUK
SWITCH-ASSY-IGNITION
270055051
€ 267.50
27005A
270055057
ref: 27005A
FGNRSD
SWITCH-ASSY-IGNITION
270055057
€ 143.00
27008
270081103
ref: 27008
KEY-LOCK,BLANK
270081103
€ 13.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
270101019
€ 23.00
27010A
270101193
ref: 27010A
SWITCH,SIDE STAND
270101193
€ 38.00
27016
270165070
ref: 27016
EUFRGRITSPSTUK
LOCK-ASSY,HELMET
270165070
€ 43.00
27016A
270165095
ref: 27016A
EUFRGRITSPSTUK
LOCK-ASSY,SEAT,TAIL
270165095
€ 66.50
27016B
270165096
ref: 27016B
FGNRSD
LOCK-ASSY,SEAT,TAIL
€ 66.50
27016C
270165097
ref: 27016C
FGNRSD
LOCK-ASSY,HELMET
€ 43.00
27017
270171112
ref: 27017
LOCK,SEAT,LH
€ 61.50
130
130J0608
ref: 130
BOLT-FLANGED,6X8
€ 2.50
186
186C0612
ref: 186
BOLT-UPSET-WP
186C0612
€ 0.50
223
223B0512
ref: 223
SCREW-PAN-WS-CROS
223B0512
€ 2.50
411
411E0600
ref: 411
EUFRGRITSPSTUK
W-PLAIN-S
411E0600
€ 0.50
461
461L0600
ref: 461
FGNRSD
WASHER-SPRING
€ 0.50
27017A
270171113
ref: 27017A
LOCK,SEAT,RH
€ 61.50
28012
280121003
ref: 28012
EU
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121052
ref: 28012A
EU
REFLECTOR-REFLEX,FR
280121052
€ 17.50
28012B
280121054
ref: 28012B
REFLECTOR-REFLEX,RR
280121054
€ 15.00
92002
920021132
ref: 92002
EU
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
BOLT
920021333
€ 1.50
92009
920091359
ref: 92009
SCREW
920091359
€ 2.50
92015
920151193
ref: 92015
EU
NUT,FLANGED,6MM
920151193
€ 0.50
92015A
920151259
ref: 92015A
FGFRGRITNRSDSPSTUK
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151259
ref: 92015A
EU
NUT,FLANGED,5MM
920151259
€ 2.50
92027
920271923
ref: 92027
EU
COLLAR,5.6X8X8.8
920271923
€ 3.50
92081
27011017
ref: 92081
SPRING,BRK LIGHT SW
27011017
€ 6.50
