GEAR CHANGE DRUM/SHIFT FORK(S)

ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST

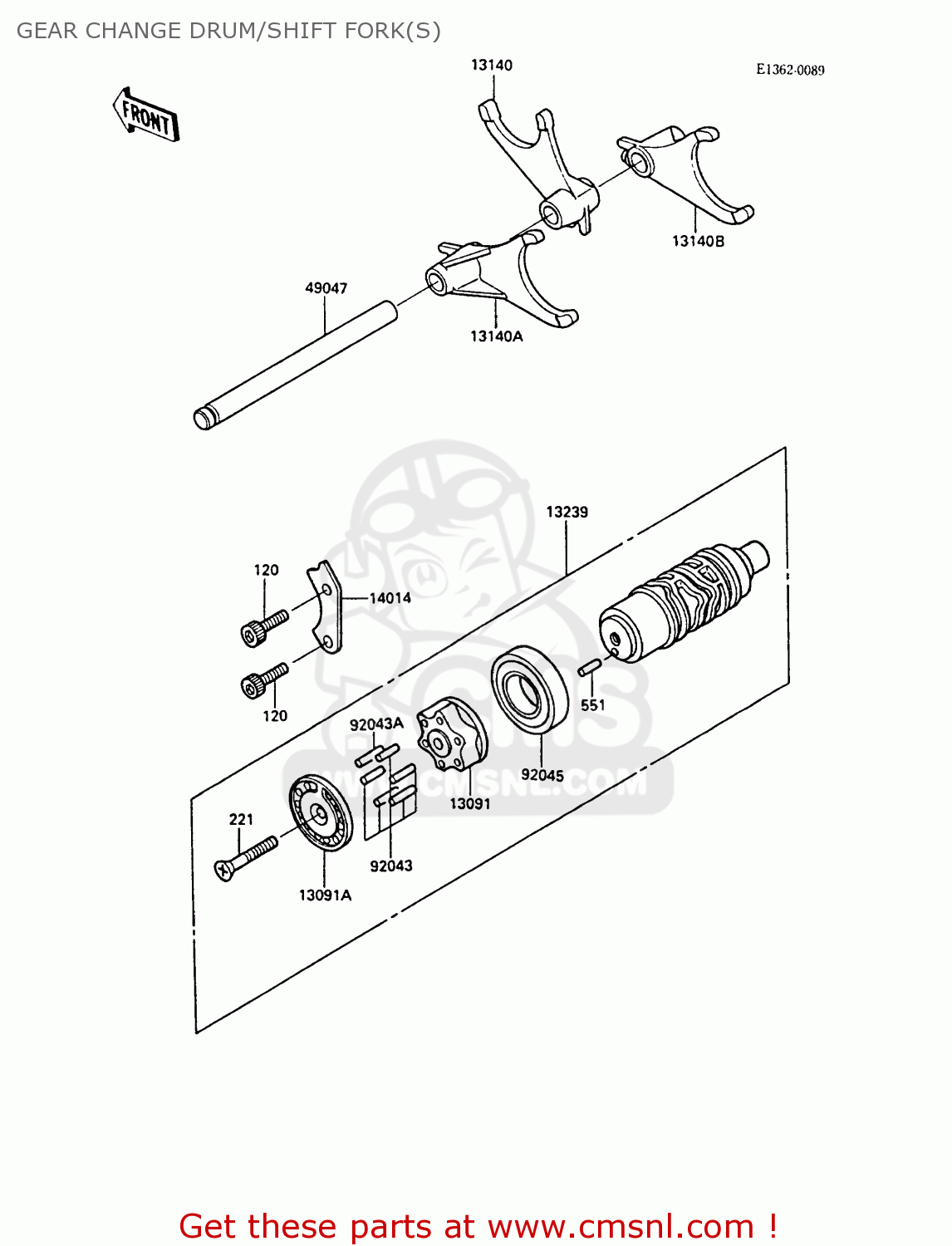

Gear change drum/shift fork(s) diagram ZX1000A1 GPZ1000RX 1986 EUROPE FR UK FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

120

120P0616
ref: 120

BOLT,SOCKET,6X16

€ 1.50

221

221B0645
ref: 221

SCREW-CSK-CROS,6X45

€ 2.50

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50

13091

130911275
ref: 13091

HOLDER,CHANGE DRUM

€ 26.50

13091A

130911334
ref: 13091A

HOLDER,NEUTRAL

€ 14.50

13140

131401127
ref: 13140

FORK-SHIFT

€ 79.00

13140A

131401128
ref: 13140A

FORK-SHIFT

€ 79.00

13140B

131401129
ref: 13140B

FORK-SHIFT

€ 79.00

13239

132391116
ref: 13239

DRUM-ASSY-CHANGE

€ 155.50

14014

140141059
ref: 14014

PLATE-POSITION,CHANGE

€ 10.00

49047

490471055
ref: 49047

ROD-SHIFT

€ 25.00

92043

92042014
ref: 92043

PIN-GEAR CHANGE DRUM

€ 0.50

92043A

92042020
ref: 92043A

PIN-GEAR CHANGE DRUM

€ 3.00

92045

920451045
ref: 92045

BEARING-BALL,16005

€ 27.00

GEAR CHANGE DRUM/SHIFT FORK(S)

all assemblies
