TRANSMISSION
ZR750D2 ZEPHYR 750 1997 AUSTRIA FG

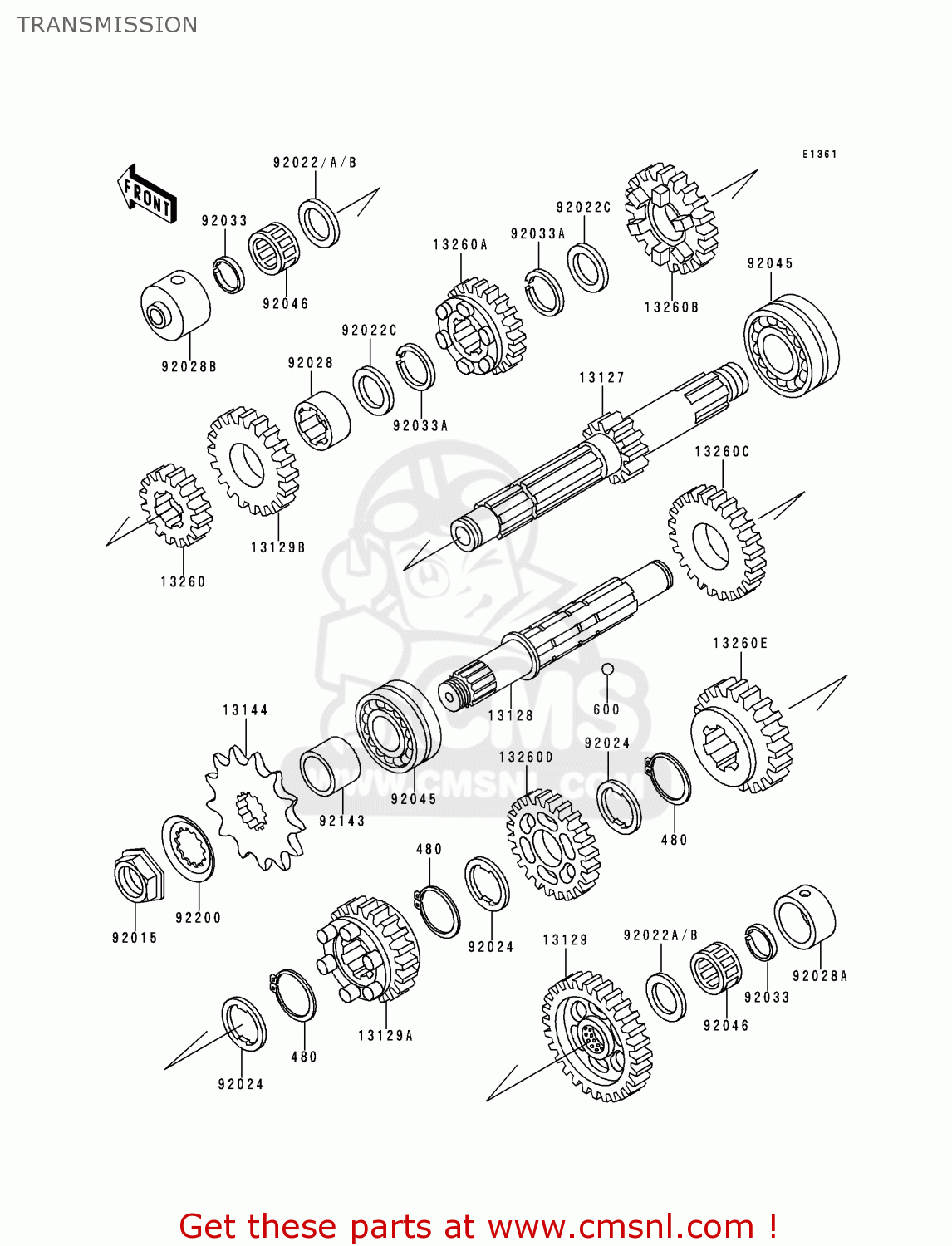

Transmission diagram ZR750D2 ZEPHYR 750 1997 AUSTRIA FG
TRANSMISSION ZR750D2 ZEPHYR 750 1997 AUSTRIA FG
×
prices are in EUR
ref
part #
description
quantity
480
480J3000
ref: 480
CIRCLIP-TYPE-C,30MM
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131271018
ref: 13127
SHAFT-TRANSMISSION IN
€ 232.50
13128
131281206
ref: 13128
SHAFT-TRANSMISSION OU
€ 198.50
13129
131291046
ref: 13129
GEAR,OUTPUT LOW,35T
€ 105.00
13129A
131291201
ref: 13129A
GEAR,OUTPUT TOP,21T
€ 142.50
13129B
131291425
ref: 13129B
GEAR,INPUT TOP,24T
€ 151.50
13144
131441246
ref: 13144
SPROCKET-OUTPUT,15T
€ 36.50
13260
132601511
ref: 13260
GEAR,INPUT 2ND,19T
€ 69.50
13260A
132601512
ref: 13260A
GEAR,INPUT 3RD,22T
€ 84.50
13260B
132601513
ref: 13260B
GEAR,INPUT 4TH,25T
€ 134.00
13260C
132601514
ref: 13260C
GEAR,OUTPUT 2ND,31T
€ 107.00
13260D
132601515
ref: 13260D
GEAR,OUTPUT 3RD,28T
€ 100.00
13260E
132601516
ref: 13260E
GEAR,OUTPUT 4TH,26T
€ 107.00
92015
920151963
ref: 92015
NUT,20MM
€ 10.50
92022
920221026
ref: 92022
WASHER,20.3X30X0.7,ST
€ 4.00
92022A
92022112
ref: 92022A
WASHER,20.5X30X1,STEE
€ 6.00
92022B
92022144
ref: 92022B
SHIM-KICK SHAFT
€ 4.50
92022C
92022161
ref: 92022C
WASHER-THRUST,25MM
€ 7.00
92024
92024069
ref: 92024
WASHER,TOOTHED,30.5X3
€ 3.50
92028
920281007
ref: 92028
BUSHING,INPUT TOP GEA
€ 26.50
92028A
920281151
ref: 92028A
BUSHING,27X34X18.6
€ 19.00
92028B
920281199
ref: 92028B
BUSHING,INPUT SHAFT
€ 52.00
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
€ 66.50
92046
920461045
ref: 92046
BEARING-NEEDLE,20V271
€ 25.00
92143
921431744
ref: 92143
COLLAR
€ 14.50
92200
922001065
ref: 92200
WASHER
€ 4.50
