AIR CLEANER
ZR750D2 ZEPHYR 750 1997 AUSTRIA FG

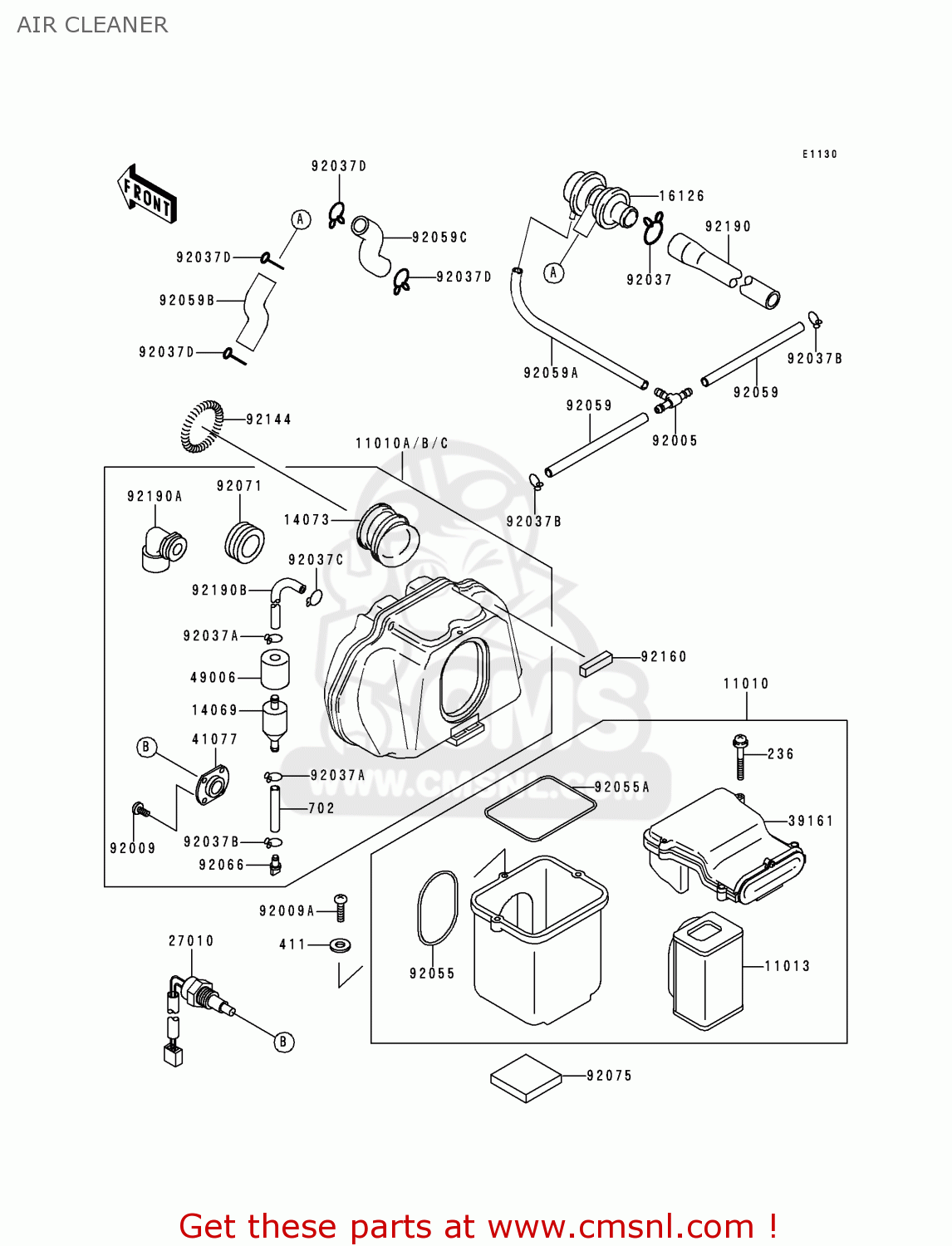

Air cleaner diagram ZR750D2 ZEPHYR 750 1997 AUSTRIA FG
AIR CLEANER ZR750D2 ZEPHYR 750 1997 AUSTRIA FG
×
prices are in EUR
ref
part #
description
quantity
11010
110101424
ref: 11010
FILTER-ASSY-AIR
€ 203.50
11010C
110101546
ref: 11010C
FILTER-ASSY-AIR,FR
€ 176.00
11013
110131157
ref: 11013
ELEMENT-AIR FILTER
€ 28.50
14069
140691051
ref: 14069
BREATHER
€ 6.50
14073
140731211
ref: 14073
DUCT,CARBURETOR
€ 24.00
16126
161261005
ref: 16126
VALVE,AIR SWITCH
€ 130.50
27010
270101320
ref: 27010
SWITCH
€ 61.50
39161
391611065
ref: 39161
SILENCER-ASSY-INTAKE
€ 38.50
41077
410771075
ref: 41077
ADAPTER
€ 23.00
49006
490061267
ref: 49006
BOOT,BREATHER
€ 5.00
92005
920051017
ref: 92005
FITTING,TUBE
€ 6.50
92009
920091051
ref: 92009
SCREW,5X12
€ 2.50
92009A
920091399
ref: 92009A
SCREW,TAPPING,5X20
€ 2.00
92037
920371076
ref: 92037
CLAMP,TUBE
€ 4.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371712
ref: 92037B
CLAMP
€ 3.00
92037C
920371972
ref: 92037C
CLAMP,TUBE
€ 2.50
92037D
92037213
ref: 92037D
CLAMP, BREATHER TUBE
€ 2.50
92055
920551137
ref: 92055
RING-O,91X6
€ 6.00
92055A
920551457
ref: 92055A
RING-O,AIR FILTER CAP
€ 5.50
92059
920591033
ref: 92059
TUBE,4X9X155
€ 12.50
92059A
920591043
ref: 92059A
TUBE,TUBE 4X9X290
€ 7.00
92059B
920591065
ref: 92059B
TUBE,LH
€ 7.00
92059C
920591066
ref: 92059C
TUBE,RH
€ 7.00
236
236B0540
ref: 236
SCREW-PAN-WSP-CROS
€ 2.50
411
411F0500
ref: 411
WASHER,PLANE,5MM
€ 0.50
702
702A0745
ref: 702
TUBE-RUBBER
€ 4.00
92066
920661211
ref: 92066
PLUG
€ 5.50
92071
920711028
ref: 92071
GROMMET AIR FILTER
€ 4.50
92075
920751979
ref: 92075
DAMPER,50X50X10
€ 3.00
92144
921441771
ref: 92144
SPRING,AIR FILTER DUC
€ 8.00
92160
921601183
ref: 92160
DAMPER
€ 2.50
92190
921901144
ref: 92190
TUBE,VALVE-AIR FILTER
€ 7.50
92190A
921901178
ref: 92190A
TUBE,BREATHER
€ 8.00
92190B
921901213
ref: 92190B
TUBE,AIR FILTER
€ 10.00
