FRONT FORK
ZR750D2 ZEPHYR 750 1997 AUSTRIA FG

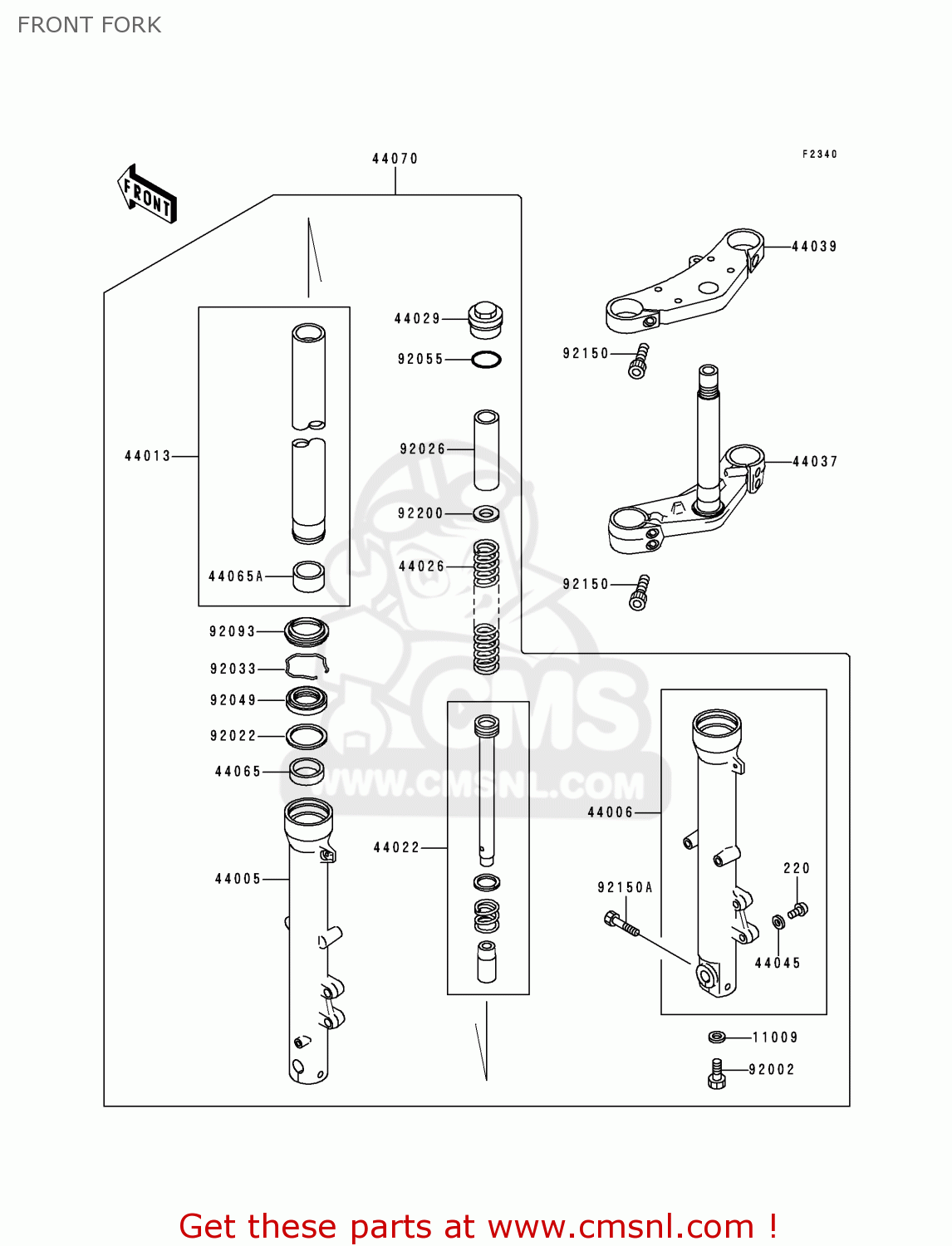

Front fork diagram ZR750D2 ZEPHYR 750 1997 AUSTRIA FG
FRONT FORK ZR750D2 ZEPHYR 750 1997 AUSTRIA FG
×
prices are in EUR
ref
part #
description
quantity
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
11009
110091553
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44005
440051344
ref: 44005
PIPE-LEFT FORK OUTER
€ 332.00
44006
440061342
ref: 44006
PIPE-RIGHT FORK OUTER
€ 332.00
44013
440131427
ref: 44013
PIPE-FORK INNER
€ 288.00
44022
440221313
ref: 44022
CYLINDER-FORK
€ 118.50
44026
440261611
ref: 44026
SPRING-FRONT FORK
€ 58.00
44029
440291147
ref: 44029
SEAT-FORK SPRING
€ 31.50
44037
440371278
ref: 44037
HOLDER-FORK UNDER
€ 283.00
44039
440391209
ref: 44039
HOLDER-FORK UPPER
€ 242.00
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44065
440651085
ref: 44065
BUSHING-FRONT FORK
€ 21.00
44065A
440651086
ref: 44065A
BUSHING-FRONT FORK,IN
€ 21.00
44070
440701497
ref: 44070
DAMPER-ASSY,FORK
€ 1,629.50
92002
920021650
ref: 92002
BOLT,FORK DRAIN
€ 10.00
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92026
920261404
ref: 92026
SPACER
€ 5.50
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92049
920491356
ref: 92049
SEAL-OIL
€ 13.00
92055
920551321
ref: 92055
RING-O
€ 1.00
92093
920931359
ref: 92093
SEAL,FORK OUTER TUBE
€ 14.00
92150
921501172
ref: 92150
BOLT,SOCKET,8X25
€ 1.50
92150A
921501468
ref: 92150A
BOLT
€ 6.00
92200
922001191
ref: 92200
WASHER
€ 6.50
