CRANKCASE
ZR750D2 ZEPHYR 750 1997 AUSTRIA FG

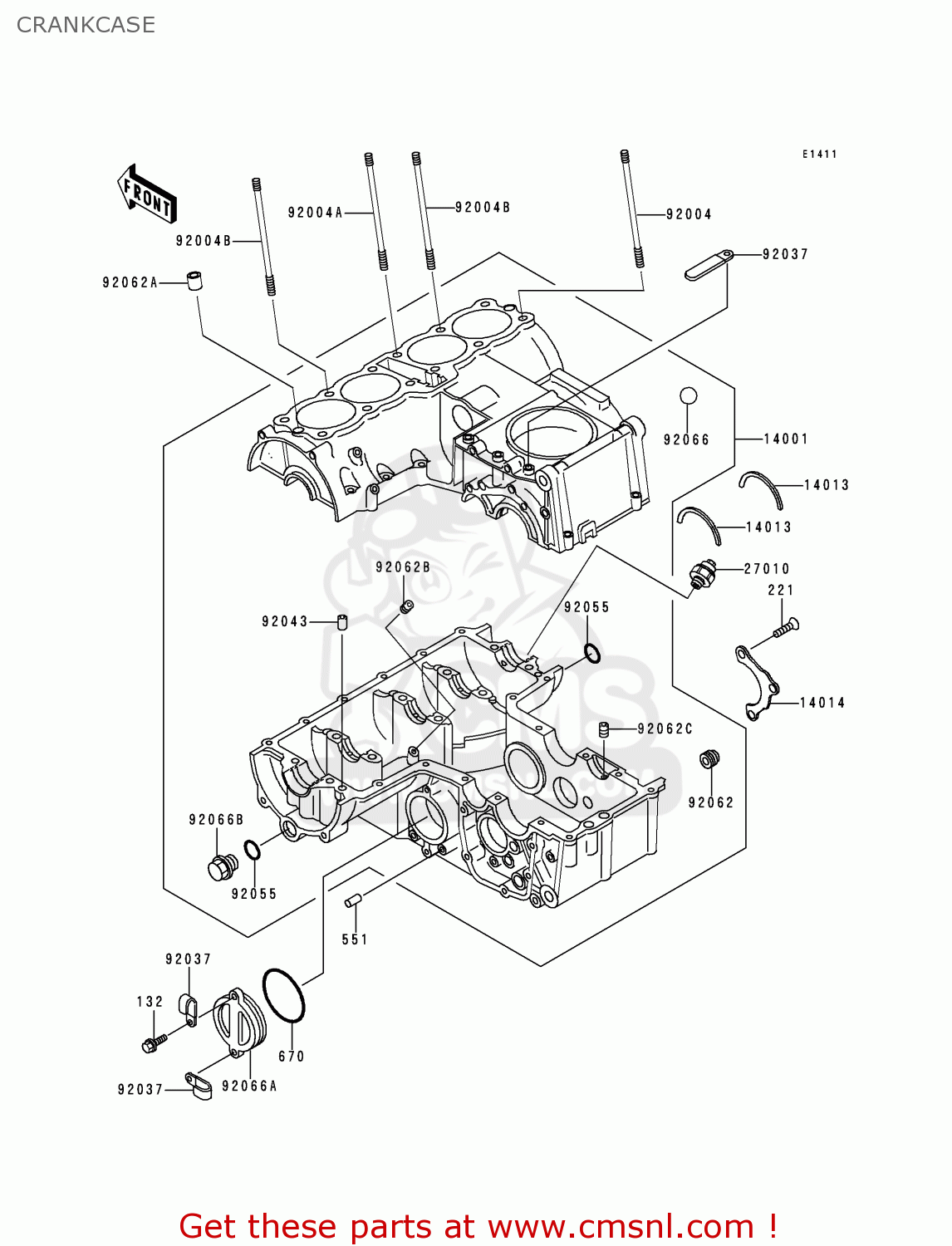

Crankcase diagram ZR750D2 ZEPHYR 750 1997 AUSTRIA FG
CRANKCASE ZR750D2 ZEPHYR 750 1997 AUSTRIA FG
×
prices are in EUR
ref
part #
description
quantity
132
132Y0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
221
221B0620
ref: 221
SCREW-CNTSNK HD,6X20
€ 0.50
551
551A0614
ref: 551
PIN,DOWEL, 6X14
€ 2.50
670
670B3046
ref: 670
O RING,46MM
€ 3.50
14001
140015343
ref: 14001
SET-CRANKCASE
€ 1,821.00
14013
14013004
ref: 14013
RING-BEARING SETTING
€ 7.00
14014
140141007
ref: 14014
PLATE-POSITION,SECOND
€ 7.00
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
€ 28.00
92004
920041231
ref: 92004
STUD,10X133
€ 11.50
92004A
920041232
ref: 92004A
STUD,10X153
€ 13.50
92004B
920041233
ref: 92004B
STUD,10X116
€ 12.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
€ 0.50
92055
920551146
ref: 92055
RING-O
€ 5.50
92062
92062014
ref: 92062
NOZZLE
€ 6.00
92062A
92062016
ref: 92062A
NOZZLE
€ 3.50
92062B
920621079
ref: 92062B
NOZZLE
€ 5.50
92062C
920621081
ref: 92062C
NOZZLE
€ 4.00
92066
92066057
ref: 92066
PLUG,RUBBER BALL,6.7
€ 3.00
92066A
920661019
ref: 92066A
PLUG,SECONDARY SHAFT,
€ 12.50
92066B
920661394
ref: 92066B
PLUG,MAIN GALLERY,18X
€ 7.00
