REAR HUB

ZR750D2 ZEPHYR 750 1997 AUSTRIA FG

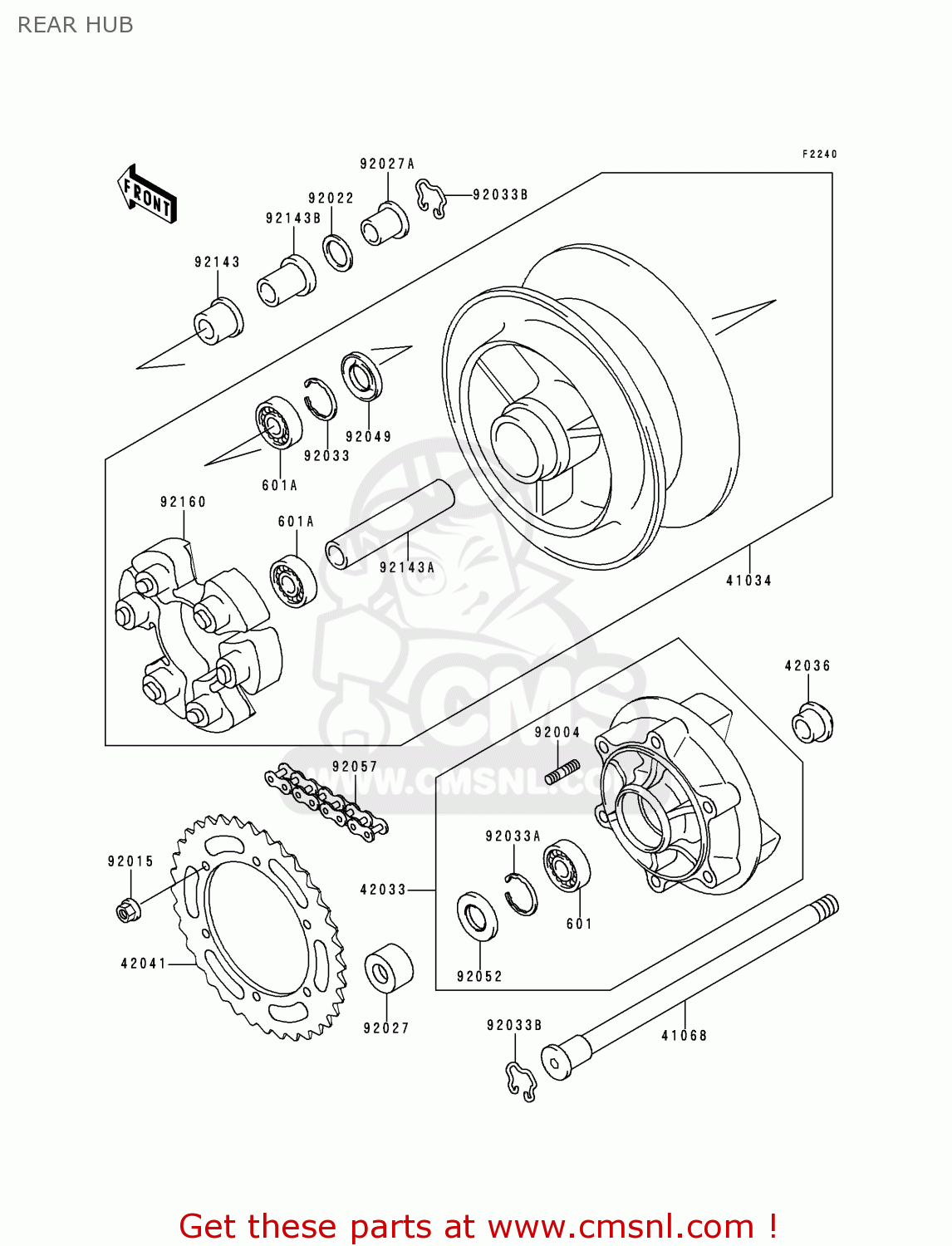

Rear hub diagram ZR750D2 ZEPHYR 750 1997 AUSTRIA FG

REAR HUB ZR750D2 ZEPHYR 750 1997 AUSTRIA FG
REAR HUB ZR750D2 ZEPHYR 750 1997 AUSTRIA FG
REAR HUB ZR750D2 ZEPHYR 750 1997 AUSTRIA FG
prices are in EUR
ref
part #
description
quantity
601
601B6205G
ref: 601
BEARING BALL
601B6205G
€ 14.00
601A
601B6303UU
ref: 601A
BEARING-BALL,6303LLUC
601B6303UU
€ 30.50
41034
410341256
ref: 41034
DRUM-ASSY,REAR BRAKE
410341256
€ 1,032.50
41068
410681323
ref: 41068
AXLE,RR
410681323
€ 59.00
42033
420331142GD
ref: 42033
COUPLING-ASSY,RR HUB,
420331142GD
€ 194.00
42036
420361233
ref: 42036
SLEEVE,RR AXLE,L=22
420361233
€ 17.00
42041
420411371
ref: 42041
SPROCKET-HUB,39T
420411371
€ 42.00
92004
920041151
ref: 92004
STUD,10X19.5
920041151
€ 6.50
92015
920151720
ref: 92015
NUT,10MM
920151720
€ 3.50
92022
920221618
ref: 92022
WASHER,23X32X2.3
920221618
€ 4.00
92027
920271661
ref: 92027
COLLAR,L=21
920271661
€ 19.50
92027A
920271810
ref: 92027A
COLLAR,RR AXLE,L=28
920271810
€ 21.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
920331043
€ 6.00
92033B
920331156
ref: 92033B
RING-SNAP,RR AXLE
920331156
€ 3.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92052
92052006
ref: 92052
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571320
ref: 92057
CHAIN,DRIVE,EK525MV-O
920571320
€ 165.00
92143
921431210
ref: 92143
COLLAR,RR AXLE,L=26
921431210
€ 13.50
92143A
921431393
ref: 92143A
COLLAR,RR HUB,L=125
921431393
€ 14.50
92143B
921431440
ref: 92143B
COLLAR,RR AXLE,L=38
€ 19.50
92160
921601458
ref: 92160
DAMPER,SHOCK,RR HUB
921601458
€ 46.00
