FRONT FORK
ZR550A1 1983 EUROPE UK FR IT NR SD WG

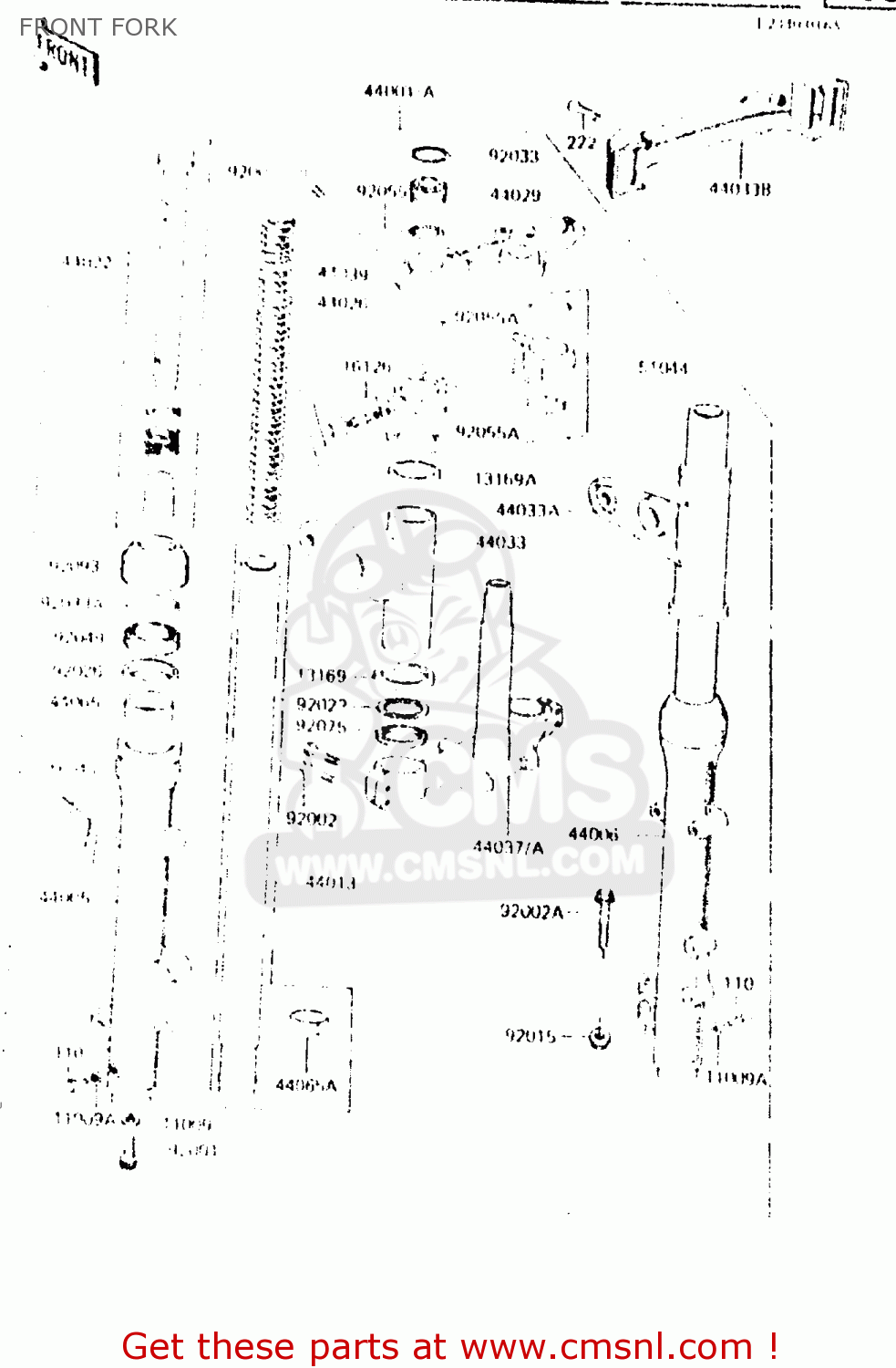

Front fork diagram ZR550A1 1983 EUROPE UK FR IT NR SD WG
FRONT FORK ZR550A1 1983 EUROPE UK FR IT NR SD WG
×
prices are in EUR
ref
part #
description
quantity
11009
44045051
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
15169
131691840
ref: 15169
PLATE,FORK COVER,LWR
€ 10.50
13169
131691840
ref: 13169
PLATE,FORK COVER,LWR
€ 10.50
13169A
131691841
ref: 13169A
PLATE,FORK COVER,UPP
€ 8.50
16126
161261043
ref: 16126
VALVE,AIR
€ 24.50
44001
440011392
ref: 44001
EU, FR, IT, NR, UK
FORK-FRONT
€ 1,231.50
44001A
440011411
ref: 44001A
SD, WG
FORK-FRONT
€ 909.50
44005
440051129
ref: 44005
PIPE-LEFT FORK OUTER
€ 246.00
44006
440061129
ref: 44006
PIPE-RIGHT FORK OUTER
€ 232.00
44013
440131096
ref: 44013
PIPE-FORK INNER
€ 142.50
44022
440221082
ref: 44022
CYLINDER-FORK
€ 71.50
44026
440261153
ref: 44026
SPRING-FRONT FORK,L=5
€ 68.50
44029
440291006
ref: 44029
SEAT-FORK SPRING
€ 9.50
44033
440331091
ref: 44033
COVER-FORK,LH
€ 100.00
44033A
440331092
ref: 44033A
COVER-FORK,RH
€ 100.00
44033B
440331106
ref: 44033B
COVER-FORK
€ 25.50
44037
440371085
ref: 44037
EU, FR, IT, NR, UK
HOLDER-FORK UNDER
€ 346.50
44037A
440371086
ref: 44037A
SD, WG
HOLDER-FORK UNDER,WG
€ 346.50
44065
440651020
ref: 44065
BUSHING-FRONT FORK
€ 13.00
44065A
440651053
ref: 44065A
BUSHING-FRONT FORK,IN
€ 16.00
51044
510441017
ref: 51044
TUBE-ASSY
€ 191.50
56040
560401044
ref: 56040
LABEL-WARNING,FRONT F
€ 2.00
92001
44041078
ref: 92001
BOLT, FORK CYLINDER
€ 6.50
92002
920021156
ref: 92002
BOLT,8X40
€ 4.00
92002A
920021297
ref: 92002A
BOLT,FLANGED,8X45
€ 4.50
92015
920151408
ref: 92015
NUT,FLANGED,8MM
€ 1.00
92022
920221111
ref: 92022
WASHER,FORK COVER
€ 7.50
92022A
920221552
ref: 92022A
WASHER,SPRING,8MM
€ 2.50
92026
920261108
ref: 92026
SPACER
€ 13.50
92033
920331023
ref: 92033
CIRCLIP
€ 3.00
92033A
920331055
ref: 92033A
RING,SNAP
€ 4.00
92049
920491089
ref: 92049
SEAL-OIL
€ 25.50
92055
920551034
ref: 92055
RING-O
€ 5.00
92055A
920551129
ref: 92055A
RING-O
€ 3.00
92075
920751137
ref: 92075
DAMPER,FORK COVER
€ 5.50
92093
920931017
ref: 92093
DUST SHIELD,FORK
€ 18.50
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
222
222C0530
ref: 222
SCREW-CSK-RD-CROS
€ 2.00
