CARBURETOR
ZR550A1 1983 EUROPE UK FR IT NR SD WG

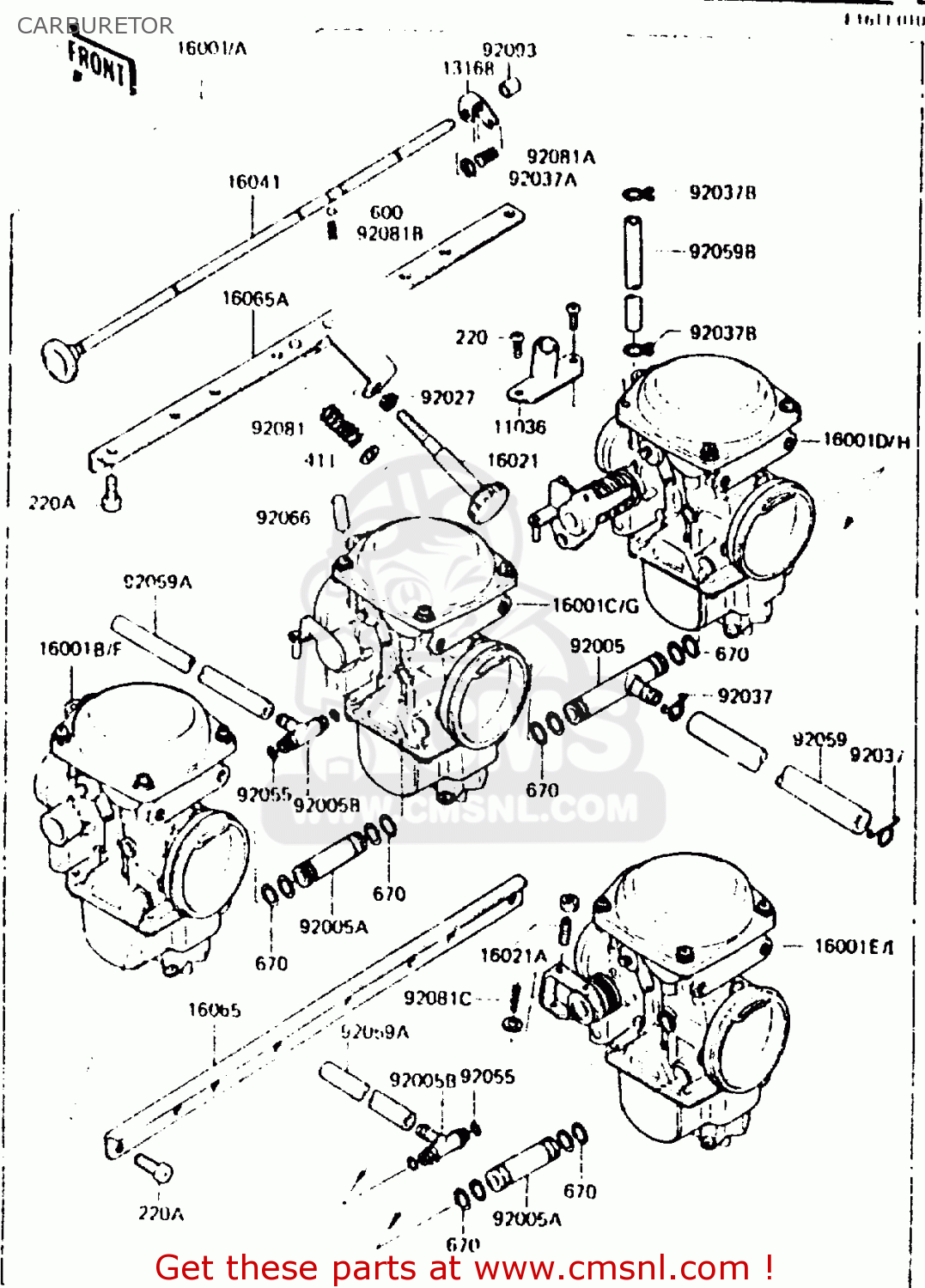

Carburetor diagram ZR550A1 1983 EUROPE UK FR IT NR SD WG
CARBURETOR ZR550A1 1983 EUROPE UK FR IT NR SD WG
×
prices are in EUR
ref
part #
description
quantity
11036
110361760
ref: 11036
BRACKET-A,THROTTLE
€ 16.50
13168
131681110
ref: 13168
LEVER
€ 3.50
16001
160011785
ref: 16001
EU, FR, IT, NR, SD,
CARBURETOR
€ 1,037.50
16001A
160011786
ref: 16001A
WG
CARBURETOR
€ 869.50
16001B
160011854
ref: 16001B
EU, FR, IT, NR, SD,
CARBURETOR,LH,OUTSIDE
€ 271.50
16001C
160011855
ref: 16001C
EU, FR, IT, NR, SD,
CARBURETOR,LH,INSIDE
€ 271.50
16001D
160011856
ref: 16001D
EU, FR, IT, NR, SD,
CARBURETOR,RH,INSIDE
€ 271.50
16001E
160011857
ref: 16001E
EU, FR, IT, FR, SD,
CARBURETOR,RH,OUTSIDE
€ 271.50
16001F
160011872
ref: 16001F
WG
CARBURETOR,LH,OUTSIDE
€ 271.50
16001G
160011873
ref: 16001G
WG
CARBURETOR,LH,INSIDE
€ 271.50
16001H
160011874
ref: 16001H
WG
CARBURETOR,RH,INSIDE
€ 271.50
16001I
160011875
ref: 16001I
WG
CARBURETOR,RH,OUTSIDE
€ 271.50
16021
160211038
ref: 16021
SCREW-THROTTLE STOP
€ 12.00
16021A
160211043
ref: 16021A
SCREW-THROTTLE STOP
€ 6.50
16041
160411027
ref: 16041
SHAFT-CARBURETOR,STAR
€ 40.50
16065
160651057
ref: 16065
HOLDER-CARBURETOR
€ 42.00
16065A
160651058
ref: 16065A
HOLDER-CARBURETOR
€ 20.50
92005
920051020
ref: 92005
FITTING,FUEL,T-TYPE
€ 20.50
92005A
920051021
ref: 92005A
FITTING,FUEL,I-TYPE
€ 20.00
92005B
920051058
ref: 92005B
FITTING
€ 9.50
92027
920271432
ref: 92027
COLLAR,STOP SCREW
€ 6.00
92037
920371158
ref: 92037
CLAMP,FUEL HOSE
€ 4.50
92037A
920371302
ref: 92037A
CLAMP
€ 2.00
92037B
920371378
ref: 92037B
CLAMP,TUBE
€ 6.00
92055
920551134
ref: 92055
RING-O
€ 4.50
92059
920591214
ref: 92059
TUBE
€ 10.50
92059A
920591215
ref: 92059A
TUBE
€ 7.50
92059B
920591260
ref: 92059B
TUBE,5X9X220
€ 10.50
92066
92068006
ref: 92066
RUBBER PLUG
€ 2.50
92081
920811193
ref: 92081
SPRING,ADJUST SCREW
€ 4.50
92081A
920811439
ref: 92081A
SPRING
€ 2.50
92081B
920811440
ref: 92081B
SPRING,SHAFT STOP
€ 3.00
92081C
920811442
ref: 92081C
SPRING
€ 2.50
92093
920931074
ref: 92093
SEAL
€ 6.50
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220B0614
ref: 220A
SCREW-PAN HEAD,6X14
€ 2.00
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
600
600A0400
ref: 600
BALL-STEEL,1/8
€ 2.00
670
670B1507
ref: 670
O RING,7MM
€ 1.00
