CRANKCASE
ZR550A1 1983 EUROPE UK FR IT NR SD WG

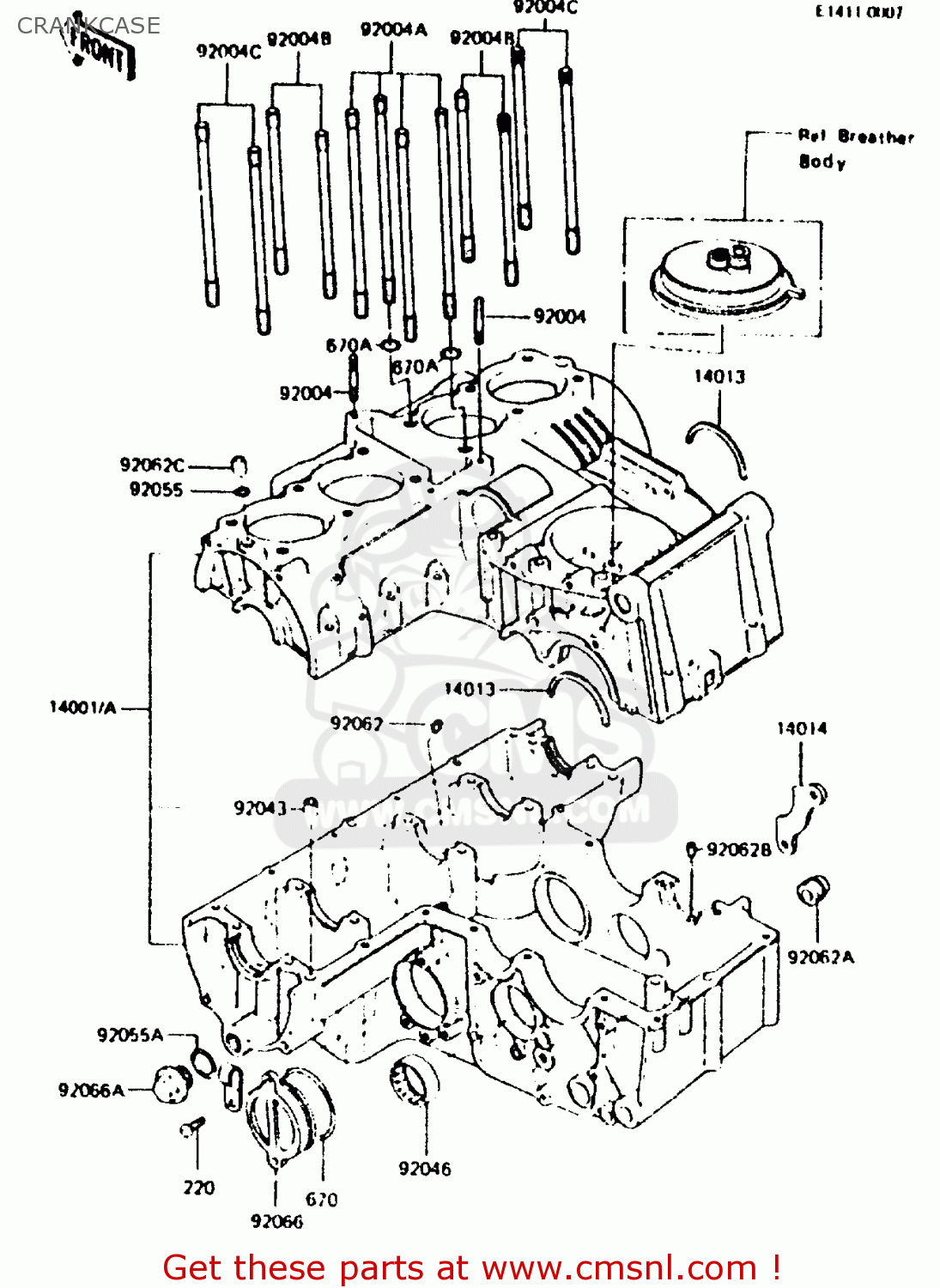

Crankcase diagram ZR550A1 1983 EUROPE UK FR IT NR SD WG
CRANKCASE ZR550A1 1983 EUROPE UK FR IT NR SD WG
×
prices are in EUR
ref
part #
description
quantity
14001
140015133
ref: 14001
SET, CRANK CASE
€ 1,999.00
14013
14013004
ref: 14013
RING-BEARING SETTING
€ 7.00
14014
140141006
ref: 14014
PLATE-POSITION
€ 7.50
92004
92004059
ref: 92004
STUD
€ 4.00
92004A
920041016
ref: 92004A
STUD,8X146
€ 7.50
92004B
920041017
ref: 92004B
STUD,8X108.5
€ 8.00
92004C
920041018
ref: 92004C
STUD,8X128.5
€ 8.00
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
€ 0.50
92046
92046051
ref: 92046
BEARING-NEEDLE,37BTM4
€ 23.00
92055
92055101
ref: 92055
O RING, 9.8MM
€ 1.00
92055A
920551146
ref: 92055A
RING-O
€ 5.50
92062
92062011
ref: 92062
NOZZLE,OIL
€ 5.50
92062A
92062014
ref: 92062A
NOZZLE
€ 6.00
92062B
92062015
ref: 92062B
NOZZLE
€ 4.00
92062C
92062016
ref: 92062C
NOZZLE
€ 3.50
92066
920661019
ref: 92066
PLUG,SECONDARY SHAFT,
€ 12.50
92066A
920661096
ref: 92066A
PLUG,MAIN GALLARY,18X
€ 7.50
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
670
670B3046
ref: 670
O RING,46MM
€ 3.50
670A
670D1508
ref: 670A
O RING,8MM
€ 2.50
