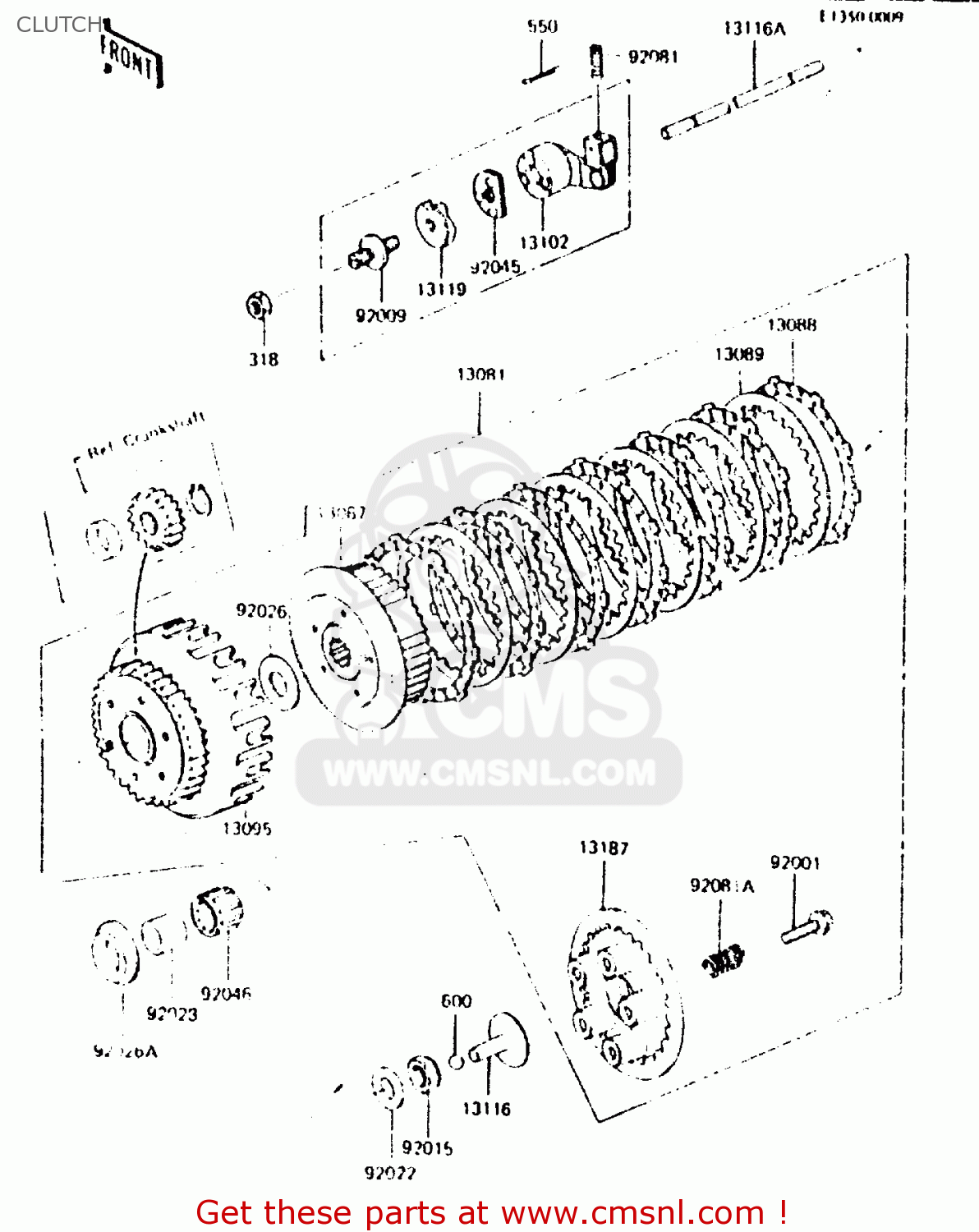

CLUTCH

ref

part #

description

quantity

13081

130811044
ref: 13081

CLUTCH ASSY

€ 568.50

13087

130871004
ref: 13087

HUB,CLUTCH

€ 96.00

13088

13088040
ref: 13088

PLATE,CLUTCH FRICTION (NAS)

€ 12.50

13089

13089026
ref: 13089

PLATE,CLUTCH STEEL (NAS)

€ 6.50

13095

130951030
ref: 13095

HOUSING-COMP-CLUTCH

€ 307.00

13102

131021008
ref: 13102

RELEASE-COMP-CLUTCH

€ 34.50

13116

13116029
ref: 13116

ROD-PUSH,CLUTCH SPRIN

€ 18.00

13116A

131161007
ref: 13116A

ROD-PUSH,CLUTCH,8X270

€ 27.00

13119

131191003
ref: 13119

CAM-RELEASE,CLUTCH

€ 11.50

13187

13187008
ref: 13187

PLATE,CLUTCH SPRING (NAS)

€ 50.00

92001

920011066
ref: 92001

BOLT, CLUTCH SPR FITT

€ 4.00

92009

920091009
ref: 92009

SCREW,SLOTTED,8M/M

€ 2.50

92015

920151053
ref: 92015

NUT,20M/M

€ 9.00

92022

920221116
ref: 92022

WASHER,20.3X36X2.3

€ 5.50

92026

92026022
ref: 92026

SPACER,25.5X47X2.5

€ 6.50

92026A

92026116
ref: 92026A

SPACER,THRUST,T=5.5MM

€ 12.00

92028

92028178
ref: 92028

BUSHING,CLUTCH

€ 17.00

92045

920451001
ref: 92045

BEARING,B.CLUTCH

€ 8.00

92046

92046028
ref: 92046

BEARING-NEEDLE,KTV323

€ 20.50

92081

92081069
ref: 92081

SPRING-CLUTCH RELEASE

€ 4.50

92081A

92081139
ref: 92081A

SPRING,CLUTCH

€ 5.50

318

318B0800
ref: 318

NUT,8MM

€ 0.50

500

550D1615
ref: 500

PIN-COTTER,1.6X15

€ 1.50

600

600A1200
ref: 600

BALL-STEEL,3/8

€ 0.50

all assemblies
