TRUNK

ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA

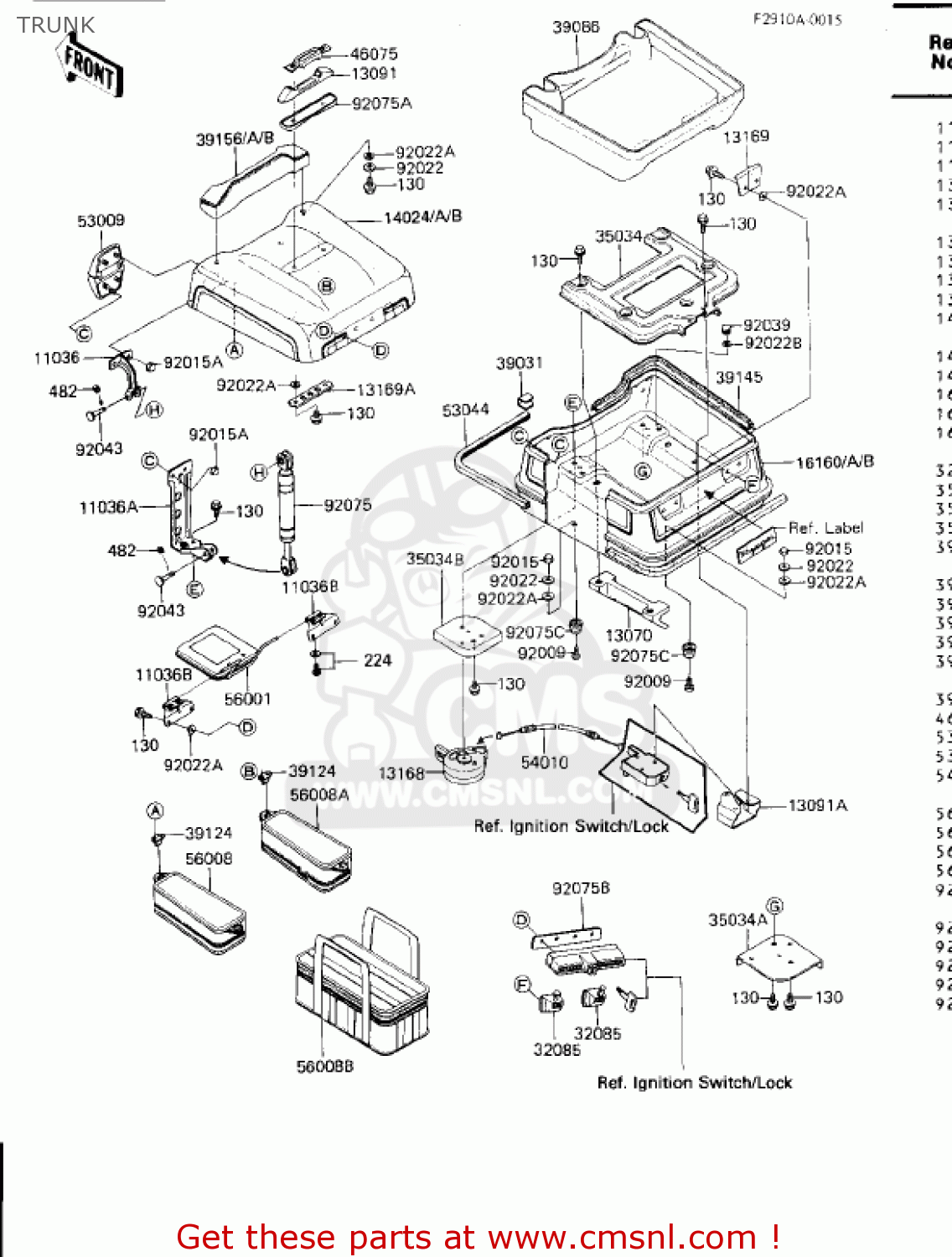

Trunk diagram ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA

TRUNK ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
TRUNK ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
TRUNK ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11036
110361866
ref: 11036
BRACKET-A,TRUNK DAMPE
€ 9.50
11036A
110361867
ref: 11036A
BRACKET-A,TRUNK DAMPE
€ 19.50
11036B
110361893
ref: 11036B
BRACKET-A,TRUNK COVER
€ 7.50
13070
130701079
ref: 13070
GUIDE,TRUNK
€ 39.50
13091
130911179
ref: 13091
HOLDER,TRUNK GRIP
€ 25.00
13091A
130911256
ref: 13091A
HOLDER,TRUNK LOCK
€ 15.00
13168
131681141
ref: 13168
LEVER,TRUNK LOCK
131681141
€ 34.00
13169
131691590
ref: 13169
PLATE,TRUNK STOPPER
€ 3.00
13169A
131691591
ref: 13169A
PLATE,TRUNK
€ 5.50
14024
140255186H8
ref: 14024
COVER,TRUNK,EBONY
€ 686.00
14024A
140255186H8
ref: 14024A
COVER,TRUNK,EBONY
€ 686.00
14024B
140255240P5
ref: 14024B
TRUNK COVER,LUMINOUS VINTAGE RED
€ 456.50
16160
161605010H8
ref: 16160
BODY,TRUNK,EBONY
€ 805.50
16160A
161605010H8
ref: 16160A
BODY,TRUNK,EBONY
€ 805.50
16160B
161605013P5
ref: 16160B
BODY,TRUNK,L.V.RED
€ 918.50
32085
320851125
ref: 32085
STOPPER,TRUNK LOCK
€ 18.00
35034
350341089
ref: 35034
REINFORCE,TRUNK BOTTO
€ 35.00
35034A
350341154
ref: 35034A
REINFORCE,TRUNK DAMPE
€ 4.00
35034B
350341156
ref: 35034B
REINFORCE,TRUNK DAMPE
€ 4.00
39031
390311053
ref: 39031
CAP-END,TRUNK TRIM
€ 2.00
39086
390861001
ref: 39086
PAD-STORAGE,TRUNK
€ 140.50
39124
391241001
ref: 39124
SNAP,TRUNK BAG
€ 1.50
39145
391451002
ref: 39145
TRIM-SEAL,TRUNK
€ 40.00
39156
391561051
ref: 39156
PAD
€ 127.00
39156A
391561054
ref: 39156A
PAD,TRUNK,RED
€ 114.50
39156B
391561060
ref: 39156B
TRUNK PAD
€ 117.50
46075
460751034
ref: 46075
GRIP,TRUNK
€ 30.00
53009
530091035
ref: 53009
HINGE,TRUNK
€ 41.00
53044
530441041
ref: 53044
TRIM,TRUNK SIDE
€ 19.00
54010
540101007
ref: 54010
CABLE,TRUNK LOCK
€ 28.50
56001
560011137
ref: 56001
MIRROR-ASSY
€ 104.00
56008
560081021
ref: 56008
BAG,LH
€ 87.50
56008A
560081022
ref: 56008A
BAG,RH
€ 87.50
56008B
560081024
ref: 56008B
BAG,CRT,INNER
€ 196.00
92009
920091066
ref: 92009
SCREW,6X28
€ 2.00
92015
920151262
ref: 92015
NUT,LOCK 6MM
920151262
€ 3.50
92015A
920151263
ref: 92015A
NUT,LOCK 5MM
920151263
€ 4.50
92022
920221392
ref: 92022
WASHER,7X28X1.6,BLACK
920221392
€ 3.00
92022A
920221477
ref: 92022A
WASHER,RUBBER
920221477
€ 2.50
92022B
920221483
ref: 92022B
WASHER,3.5X10X1.0
€ 1.50
92039
920391041
ref: 92039
RIVET
920391041
€ 2.50
92043
920431142
ref: 92043
PIN
€ 6.00
92075
920751449
ref: 92075
DAMPER,GASS
€ 83.00
92075A
920751451
ref: 92075A
DAMPER,TRUNK GRIP
€ 3.00
92075B
920751479
ref: 92075B
DAMPER,TRUNK LOCK
€ 17.00
92075C
920751510
ref: 92075C
DAMPER,TRUNK & SIDEBA
920751510
€ 9.00
130
130C0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
224
224C0514
ref: 224
SCREW-PAN-WP-CROS,5X1
€ 0.50
482
482L4000
ref: 482
CIRCLIP-TYPE-E,4MM
482L4000
€ 0.50
