HANDLEBAR

ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA

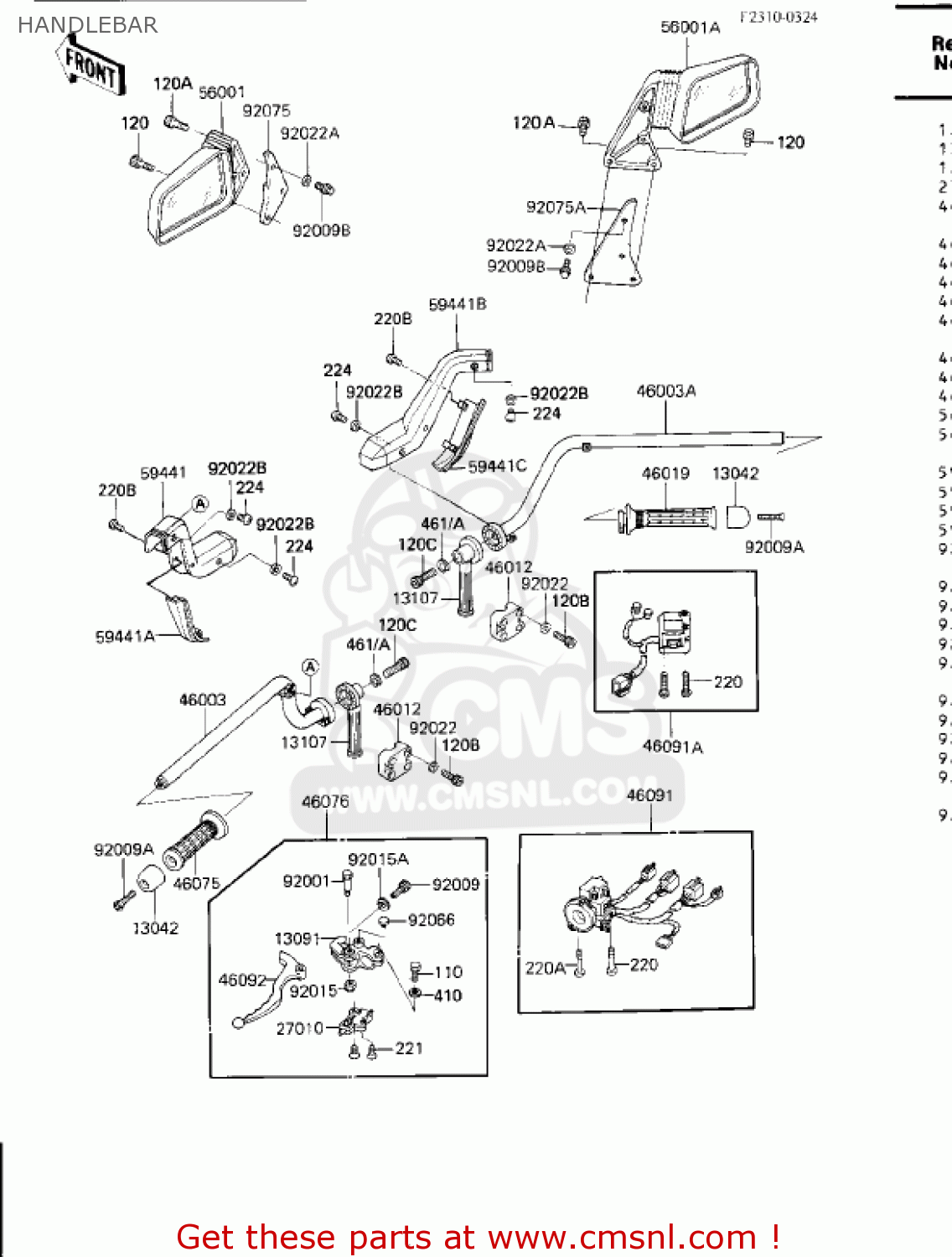

Handlebar diagram ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA

HANDLEBAR ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
HANDLEBAR ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
HANDLEBAR ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13042
130421051
ref: 13042
WEIGHT,HANDLE
130421051
€ 25.00
13091
130911254
ref: 13091
HOLDER,CLUTCH LEVER
€ 28.00
13107
131071040
ref: 13107
SHAFT,HANDLE
€ 62.00
27010
270101094
ref: 27010
SWITCH,CLUTCH
270101094
€ 20.50
46003
460031131
ref: 46003
HANDLE,LH
€ 115.50
46003A
460031132
ref: 46003A
HANDLE,RH
€ 116.50
46012
460121039
ref: 46012
HOLDER-HANDLE
460121039
€ 21.00
46019
460191053
ref: 46019
GRIP-ASSY,THROTTLE
460191053
€ 30.00
46075
460751036
ref: 46075
GRIP,LH
460751036
€ 9.00
46076
460761042
ref: 46076
LEVER-ASSY-GRIP
€ 36.00
46091
460911420
ref: 46091
HOUSING-ASSY-CONTROL,
€ 258.50
46091A
460911322
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 112.00
46092
460921101
ref: 46092
LEVER-GRIP,CLUTCH
460921101
€ 13.50
56001
560011138
ref: 56001
MIRROR-ASSY,LH
560011138
€ 216.00
56001A
560011139
ref: 56001A
MIRROR-ASSY,RH
€ 216.00
59441
594411013
ref: 59441
COVER-HANDLE,LH,UPP
€ 25.00
59441A
594411014
ref: 59441A
COVER-HANDLE,LH,LWR
€ 15.50
59441B
594411015
ref: 59441B
COVER-HANDLE,RH,UPP
€ 28.50
59441C
594411017
ref: 59441C
COVER-HANDLE,RH,LWR
€ 15.50
92001
920011548
ref: 92001
BOLT,CLUTCH LEVER,BLA
920011548
€ 5.50
92009
920091134
ref: 92009
SCREW,CBL ADJUST,8MM
920091134
€ 10.50
92009A
920091257
ref: 92009A
SCREW,HANDLE WEIGHT
920091257
€ 3.00
92009B
920091288
ref: 92009B
SCREW,6X14
920091288
€ 2.00
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
920151191
€ 2.00
92015A
920151197
ref: 92015A
NUT,CABLE ADJUST LOCK
920151197
€ 6.50
92022
920221401
ref: 92022
WASHER,9X15.5X2
920221401
€ 1.50
92022A
920221505
ref: 92022A
WASHER,MIRROR ASSY
€ 4.50
92022B
920221516
ref: 92022B
WASHER,3.3X8X0.5
920221516
€ 1.50
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
920661077
€ 3.00
92075
920751457
ref: 92075
DAMPER,MIRROR,LH
920751457
€ 11.00
92075A
920751458
ref: 92075A
DAMPER,MIRROR,RH
920751458
€ 11.00
110
110C0622
ref: 110
BOLT,6X22,BLACK
110C0622
€ 3.00
120
120S0630
ref: 120
BOLT-SOCKET,6X30,BLAC
120S0630
€ 1.00
120A
120S0635
ref: 120A
BOLT-SOCKET
120S0635
€ 1.00
120B
120S0830
ref: 120B
BOLT-SOCKET,8X30,BLAC
120S0830
€ 3.00
120C
120S1235
ref: 120C
BOLT-SOCKET,12X35,BLA
€ 3.00
220
220B0535
ref: 220
SCREW-PAN-CROS
220B0535
€ 2.00
220A
220B0545
ref: 220A
SCREW-PAN HEAD,5X45
€ 1.50
220B
220C0308
ref: 220B
SCREW-PAN-CROS
220C0308
€ 0.50
221
221C0316
ref: 221
SCREW-CSK-CROS
221C0316
€ 2.50
224
224C0510
ref: 224
SCREW-PAN-WP-CROS
€ 2.50
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
410F0600
€ 0.50
461
461F1200
ref: 461
WASHER-SPRING,12MM
461F1200
€ 0.50
461A
461K1200
ref: 461A
461K1200
