FUEL PUMP

ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA

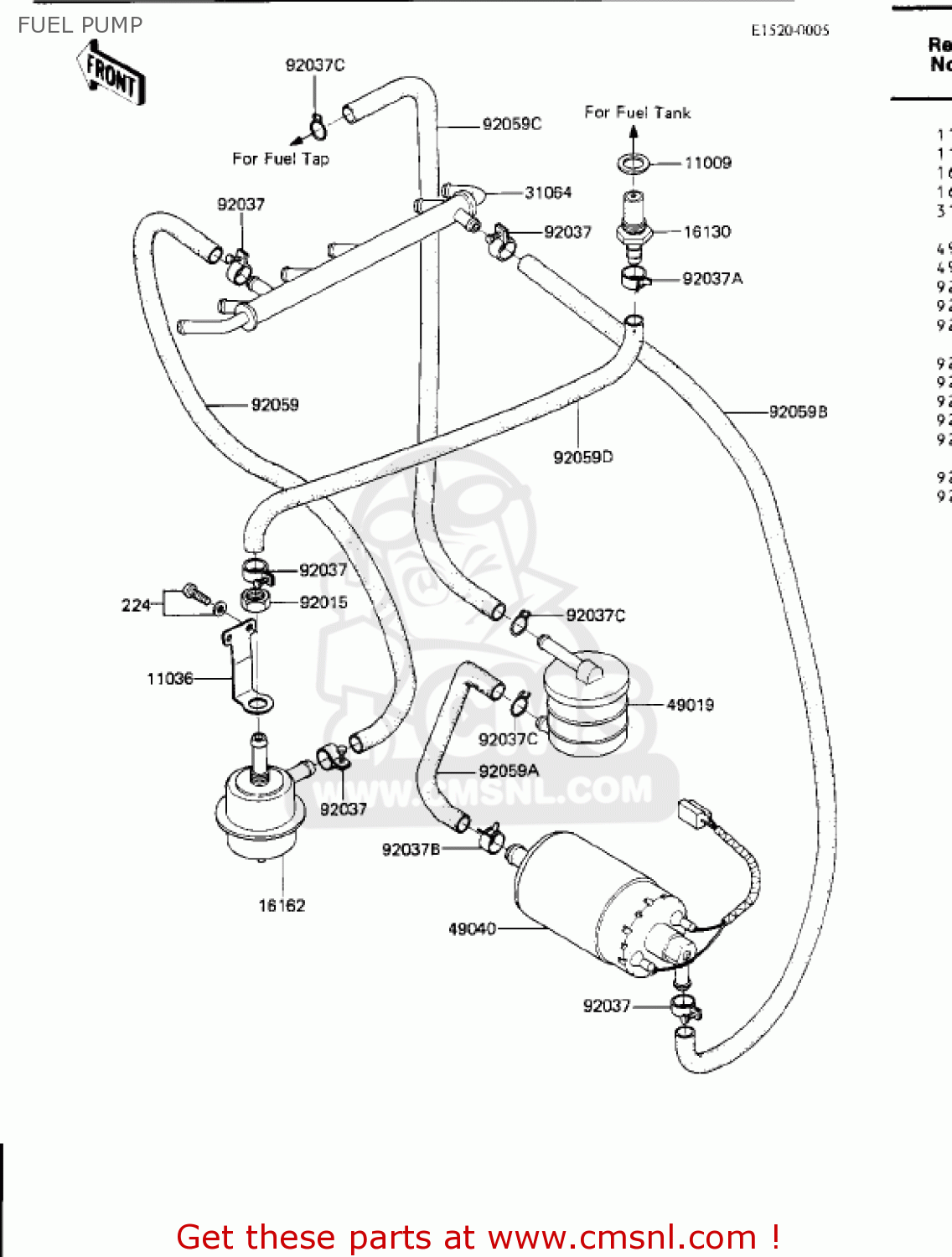

Fuel pump diagram ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA

FUEL PUMP ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
FUEL PUMP ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
FUEL PUMP ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091182
ref: 11009
GASKET,RELIEF VALVE (NAS)
110091182
€ 3.00
11036
110361960
ref: 11036
BRACKET-A,REGULATOR
110361960
€ 5.50
16130
161301002
ref: 16130
VALVE-ASSY-RELIEF
161301002
€ 47.50
16162
161621002
ref: 16162
REGULATOR-FUEL
161621002
€ 159.50
31064
310641010
ref: 31064
PIPE-COMP,FUEL
€ 50.00
49019
490191001
ref: 49019
FILTER,FUEL
490191001
€ 24.50
49040
490401007
ref: 49040
PUMP-FUEL
€ 795.00
92015
920151395
ref: 92015
NUT,12MM
920151395
€ 3.00
92037
920371178
ref: 92037
CLAMP
€ 4.50
92037A
920371181
ref: 92037A
CLAMP
920371181
€ 1.00
92037B
920371365
ref: 92037B
CLAMP,FUEL TUBE,ID=15
920371365
€ 1.50
92037C
920371271
ref: 92037C
CLAMP,FUEL TUBE
920371271
€ 2.00
92059
920591273
ref: 92059
TUBE,13.5X360
€ 117.50
92059A
920591275
ref: 92059A
TUBE,PUMP FILTER
€ 7.50
92059B
920591276
ref: 92059B
TUBE,13.5X610
920591276
€ 117.50
92059C
920591277
ref: 92059C
TUBE,7.5X13.5X590
€ 22.50
92059D
920591397
ref: 92059D
TUBE,13.5X270
€ 117.50
224
224C0508
ref: 224
SCREW-PAN-WP-CROS
224C0508
€ 3.00
