CRANKCASE

ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA

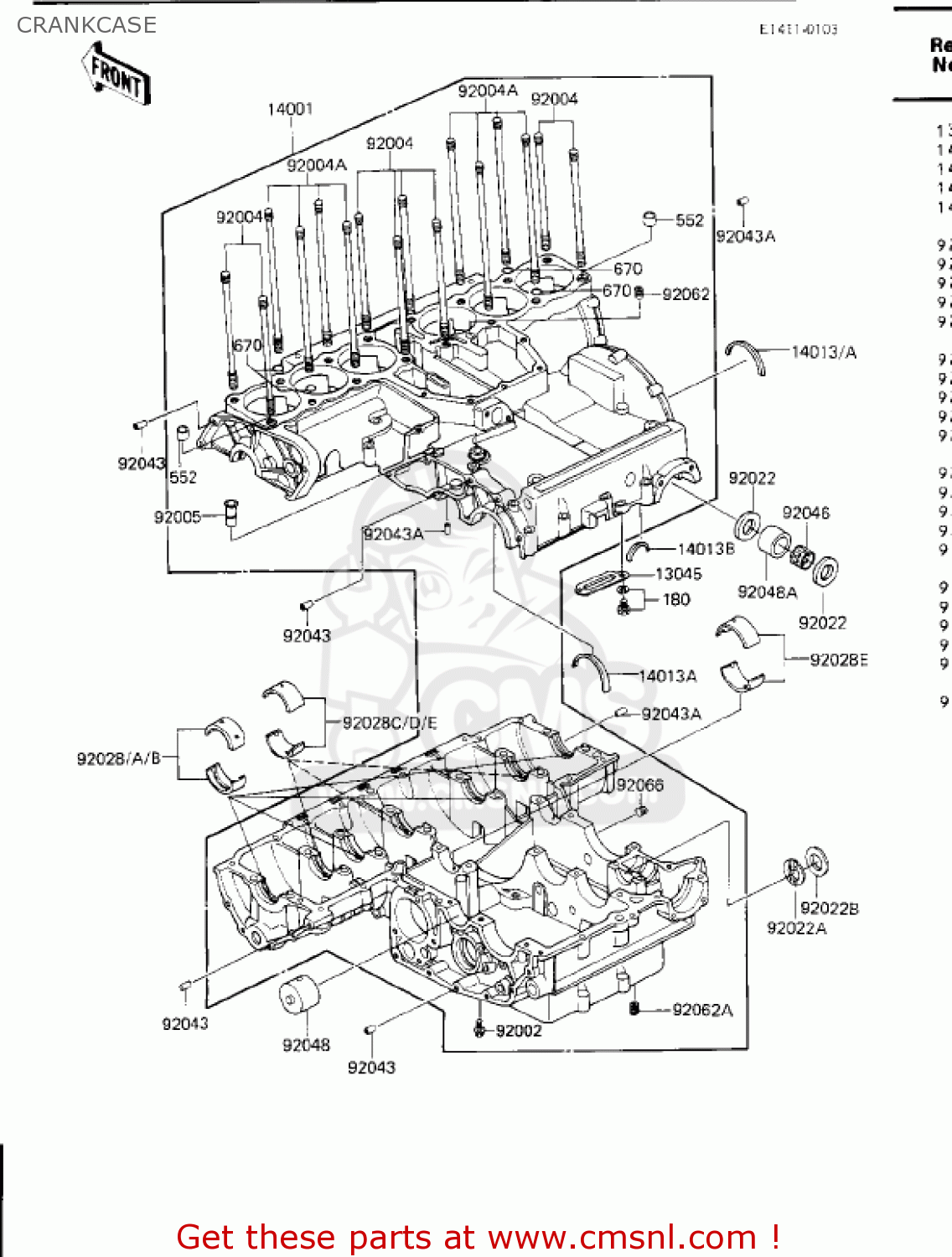

Crankcase diagram ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA

CRANKCASE ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
CRANKCASE ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
CRANKCASE ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13045
130451002
ref: 13045
RECEIVER-OIL
€ 2.50
14001
140015153
ref: 14001
SET-CRANKCASE
€ 1,824.00
14013
14013013
ref: 14013
RING-POSITION,T=1.90
14013013
€ 7.50
14013A
140131004
ref: 14013A
RING-POSITION,CRANK
140131004
€ 3.00
14013B
140131007
ref: 14013B
RING-POSITION
€ 2.00
92002
920021077
ref: 92002
BOLT,8X95
920021077
€ 7.50
92004
92004062
ref: 92004
STUD, 10X153
92004062
€ 13.50
92004A
920041019
ref: 92004A
STUD,10X195
920041019
€ 9.00
92005
14067006
ref: 92005
BREATHER JOINT
14067006
€ 14.00
92022
920221280
ref: 92022
WASHER,THRUST,20.5MM
920221280
€ 2.50
92022A
920221388
ref: 92022A
WASHER,T=2.2
€ 11.50
92022B
920221389
ref: 92022B
WASHER,15X28X2.3
€ 2.50
92028
920281103
ref: 92028
BUSHING,MAIN JOURNAL,
920281103
€ 9.50
92028A
920281104
ref: 92028A
BUSHING,MAIN JOURNAL,
920281104
€ 10.00
92028B
920281105
ref: 92028B
BUSHING,MAIN JOURNAL,
920281105
€ 9.50
92028C
920281106
ref: 92028C
BUSHING,MAIN JOURNAL,
920281106
€ 9.50
92028D
920281107
ref: 92028D
BUSHING,MAIN JOURNAL,
920281107
€ 9.50
92028E
920281108
ref: 92028E
BUSHING,MAIN JOURNAL,
920281108
€ 9.50
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92043A
92042016
ref: 92043A
PIN,DOWEL,6X16
92042016
€ 3.50
92046
920461042
ref: 92046
BEARING-NEEDLE,TK2028
920461042
€ 29.00
92048
920481008
ref: 92048
RACE,DRIVE SHAFT,LH
€ 44.00
92048A
920481018
ref: 92048A
RACE
920481018
€ 23.00
92062
92062011
ref: 92062
NOZZLE,OIL
92062011
€ 5.50
92062A
92062015
ref: 92062A
NOZZLE
92062015
€ 4.00
92066
92066059
ref: 92066
PLUG,PT1/8X7
92066059
€ 3.00
180
180B0616
ref: 180
BOLT-UPSET-WS
€ 0.50
552
552B1012
ref: 552
PIN,DOWEL,6.5X10X12
552B1012
€ 1.00
670
670B2012
ref: 670
O RING,12MM
670B2012
€ 1.00
