FRAME FITTINGS

ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA

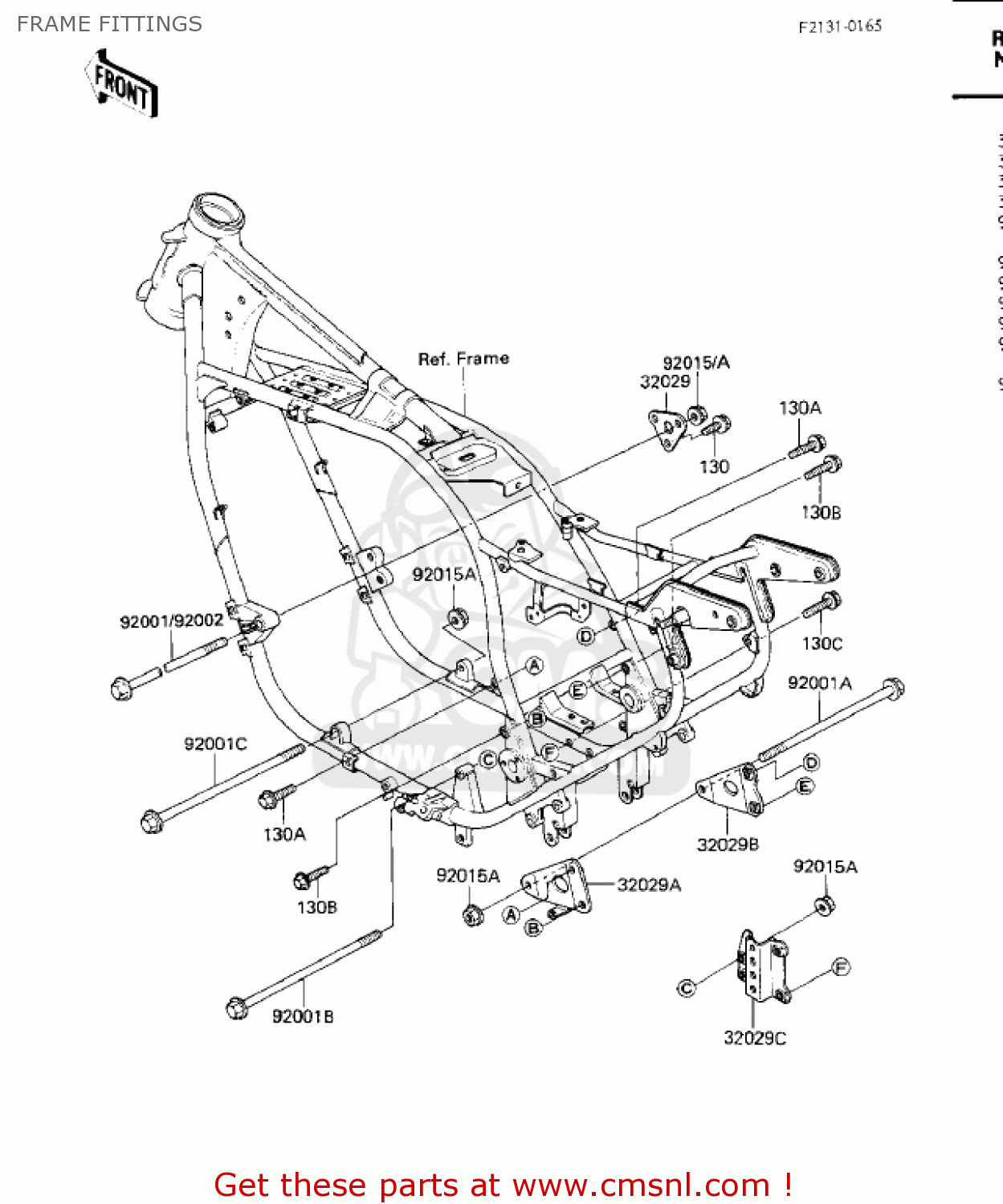

Frame fittings diagram ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA

FRAME FITTINGS ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
FRAME FITTINGS ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
FRAME FITTINGS ZN1300A1 VOYAGER 1983 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
32029
320291061
ref: 32029
BRACKET-ENGINE,FR,RH,
€ 7.00
32029A
320291260
ref: 32029A
BRACKET-ENGINE,RR,UPP
€ 17.00
32029B
320291261
ref: 32029B
BRACKET-ENGINE,RR,UPP
€ 15.00
32029C
320291262
ref: 32029C
BRACKET-ENGINE,RR,LWR
€ 18.00
92001
920011694
ref: 92001
BOLT,10X380
€ 10.00
92001A
920011988
ref: 92001A
BOLT,FLANGED,10X270
920011988
€ 12.00
92001B
920011992
ref: 92001B
BOLT,FLANGED,10X305
€ 16.50
92001C
920011993
ref: 92001C
BOLT,FLANGED,10X315
€ 16.50
92002
920021406
ref: 92002
BOLT,FLANGED,10X380
920021406
€ 10.00
92015
920151428
ref: 92015
NUT,FLANGED,10MM
920151428
€ 3.00
92015A
920151180
ref: 92015A
NUT,FLANGED,10MM,BLAC
920151180
€ 2.50
92015A
920151180
ref: 92015A
NUT,FLANGED,10MM,BLAC
920151180
€ 2.50
130
130J0820
ref: 130
BOLT-FLANGED,8X20
130J0820
€ 0.50
130A
130J0835
ref: 130A
BOLT-FLANGED,8X35,BLA
€ 2.50
130B
130J0840
ref: 130B
BOLT-FLANGED,8X40
130J0840
€ 3.00
130C
130J0855
ref: 130C
BOLT-FLANGED,8X55
€ 2.50
