VALVE(S)

ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST

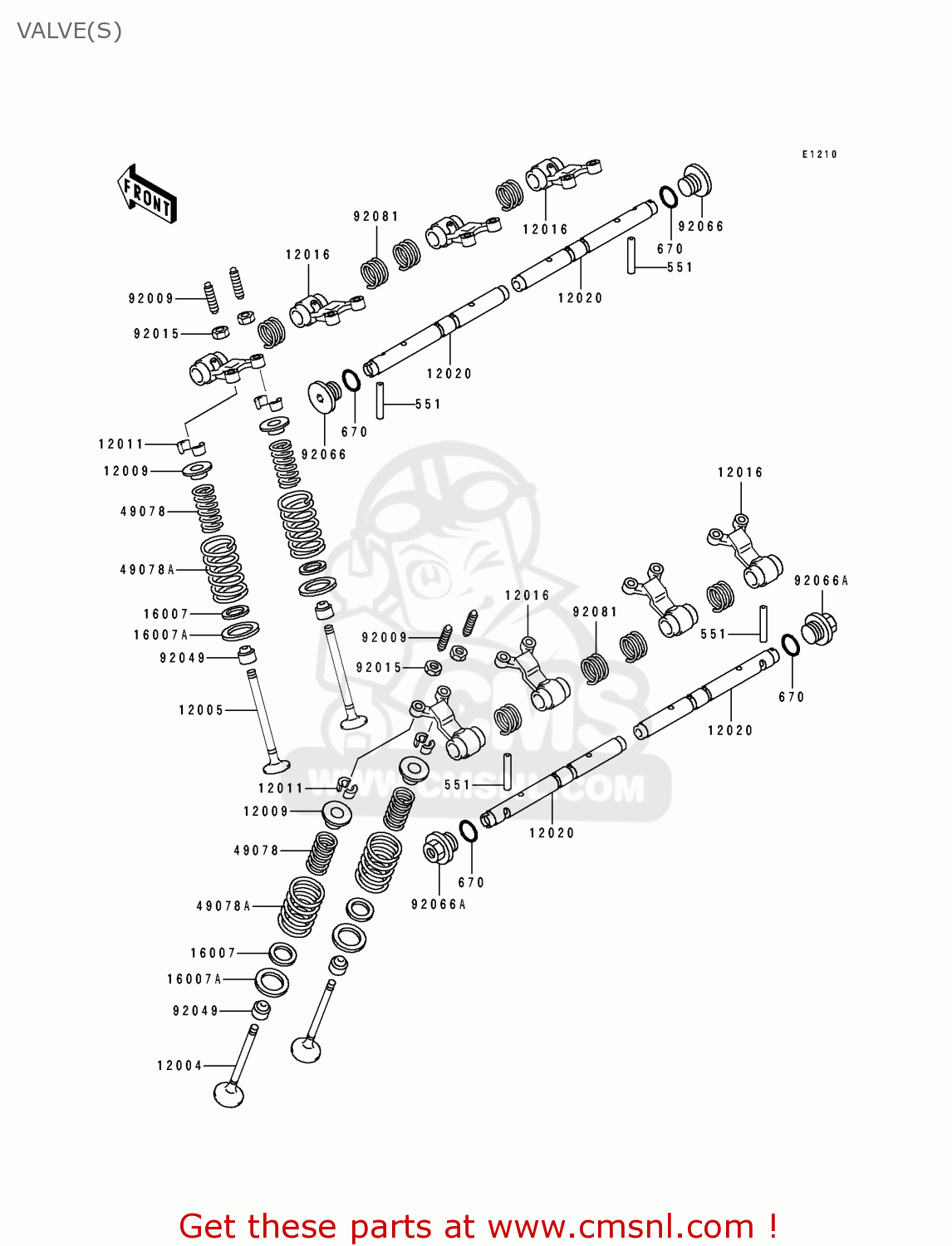

Valve(s) diagram ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

551

551A0540
ref: 551

PIN-DOWEL

€ 2.50

670

670B2015
ref: 670

O RING,15MM

€ 1.00

12004

120041114
ref: 12004

VALVE-INTAKE

€ 23.50

12005

120051062
ref: 12005

VALVE-EXHAUST

€ 45.00

12009

120091060
ref: 12009

RETAINER-VALVE SPRING

€ 7.00

12011

120111051
ref: 12011

COLLET

€ 1.50

12016

120161062
ref: 12016

ARM-ROCKER

€ 52.00

12020

120201058
ref: 12020

SHAFT-ROCKER

€ 34.50

16007

160071177
ref: 16007

SEAT-SPRING,12.1X16.2

€ 3.50

16007A

160071178
ref: 16007A

SEAT-SPRING,17.5X23.8

€ 4.00

49078

490781060
ref: 49078

SPRING-ENGINE VALVE,O

€ 8.00

49078A

490781061
ref: 49078A

SPRING-ENGINE VALVE,I

€ 9.00

92009

920091109
ref: 92009

SCREW,VALVE ADJUST

€ 1.50

92015

920151529
ref: 92015

NUT,5MM

€ 2.50

92049

920491218
ref: 92049

SEAL-OIL,VSB58.558

€ 3.50

92066

920661192
ref: 92066

PLUG,14X11.5

€ 16.00

92066A

920661257
ref: 92066A

PLUG

€ 11.50

92081

920811636
ref: 92081

SPRING,ROCKER ARM

€ 10.00
