SECONDARY SHAFT

ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST

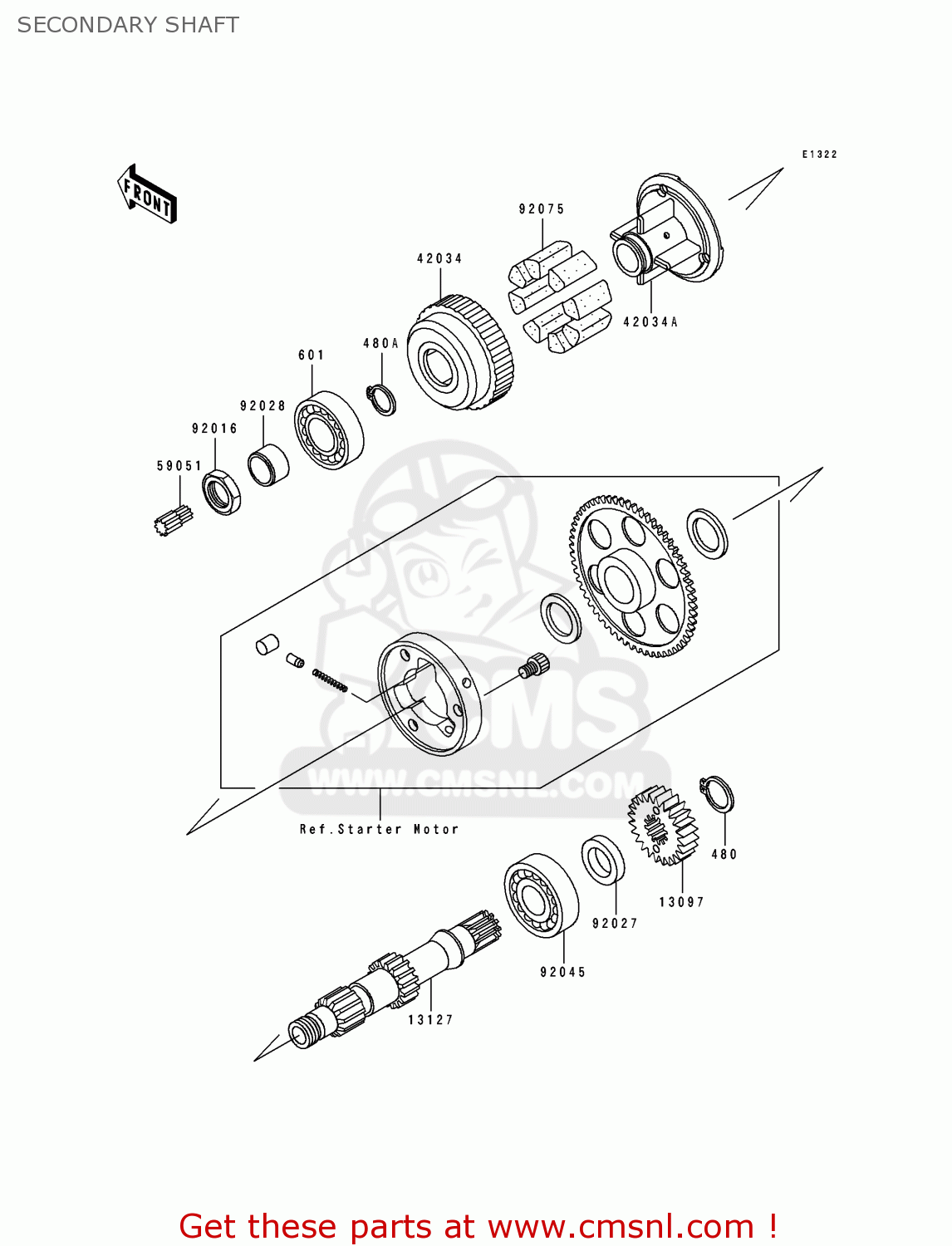

Secondary shaft diagram ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

480

480J2200
ref: 480

CIRCLIP-TYPE-C,22MM

€ 3.00

480A

480J2800
ref: 480A

CIRCLIP-TYPE-C,28MM

€ 3.50

601

601B6205
ref: 601

BEARING-BALL,#6205C3

€ 14.00

13097

130971141
ref: 13097

GEAR-PRIMARY SPUR,28T

€ 74.50

13127

131271123
ref: 13127

SHAFT,SECONDARY

€ 181.00

42034

420341004
ref: 42034

COUPLING,OUTER,SECOND

€ 109.00

42034A

420341005
ref: 42034A

COUPLING,INNER,SECOND

€ 121.00

59051

590511137
ref: 59051

GEAR-SPUR,10T,SECONDA

€ 20.00

92016

92016028
ref: 92016

NUT

€ 9.50

92027

920271438
ref: 92027

COLLAR,22X34X7.3

€ 4.00

92028

920281037
ref: 92028

BUSHING,20X25X16.6

€ 16.00

92045

920451017
ref: 92045

BEARING-BALL,#63/22X

€ 32.50

92075

920751070
ref: 92075

DAMPER,COUPLING

€ 4.50

SECONDARY SHAFT

all assemblies
