DRIVE SHAFT/FINAL GEAR

ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST

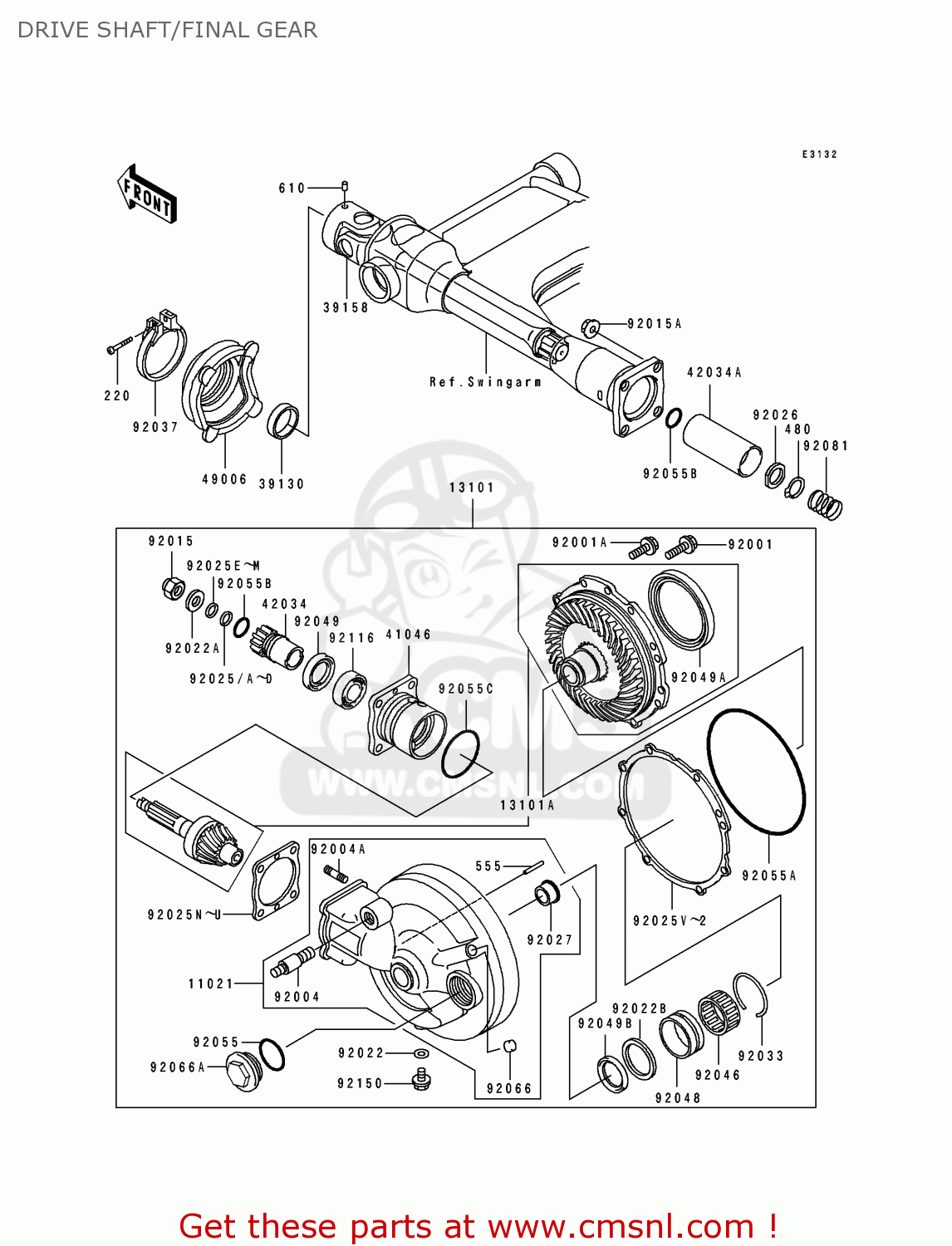

Drive shaft/final gear diagram ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST

DRIVE SHAFT/FINAL GEAR ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST
DRIVE SHAFT/FINAL GEAR ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST
DRIVE SHAFT/FINAL GEAR ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11021
110211105
ref: 11021
CASE-ASSY,FINAL GEAR
€ 954.00
13101
131011214
ref: 13101
GEAR-ASSY,FINAL
€ 2,245.50
13101A
131015035
ref: 13101A
GEAR-ASSY,FINAL BEVEL
€ 1,199.50
39130
391301002
ref: 39130
SPRING,LEAF
391301002
€ 3.00
39158
391581060
ref: 39158
SHAFT-ASSY-DRIVE
€ 241.50
41046
410461097
ref: 41046
HOUSING-BEARING,FINAL
€ 142.00
42034
420341030
ref: 42034
COUPLING,DRIVE SHAFT,
420341030
€ 81.00
42034A
420341031
ref: 42034A
COUPLING,DRIVE SHAFT,
€ 85.50
49006
490061059
ref: 49006
BOOT,PROPELLER SHAFT
490061059
€ 22.50
92001
920011095
ref: 92001
BOLT,8X28
920011095
€ 4.50
92001A
920011324
ref: 92001A
BOLT,FLANGED,8X25
€ 3.00
92004
920041047
ref: 92004
STUD,RR SHOCKABSORBER
920041047
€ 10.00
92004A
920041126
ref: 92004A
STUD
920041126
€ 7.00
92015
920151182
ref: 92015
NUT,12MM
920151182
€ 4.50
92015A
920151936
ref: 92015A
NUT,8MM
920151936
€ 3.00
92022
920221086
ref: 92022
WASHER,8.2X16X1
920221086
€ 2.50
92022A
920221293
ref: 92022A
WASHER,12.3X25X3.2
920221293
€ 4.00
92022B
920221294
ref: 92022B
WASHER,39X49.5X1
920221294
€ 4.50
92025
920251282
ref: 92025
SHIM,12.5X17X1.30
€ 6.50
92025A
920251283
ref: 92025A
SHIM,12.5X17X1.32
€ 6.00
92025B
920251284
ref: 92025B
SHIM,12.5X17X1.34
€ 6.00
92025C
920251285
ref: 92025C
SHIM,12.5X17X1.36
€ 6.00
92025D
920251286
ref: 92025D
SHIM,12.5X17X1.38
€ 6.00
92025E
920251287
ref: 92025E
SHIM,12.5X17X0.1
920251287
€ 3.50
92025F
920251288
ref: 92025F
SHIM,12.5X17X0.2
€ 3.50
92025G
920251289
ref: 92025G
SHIM,12.5X17X0.3
€ 3.50
92025H
920251290
ref: 92025H
SHIM,12.5X17X0.5
€ 4.00
92025I
920251291
ref: 92025I
SHIM,12.5X17X0.6
€ 5.50
92025J
920251292
ref: 92025J
SHIM,12.5X17X0.7
€ 6.00
92025K
920251293
ref: 92025K
SHIM,12.5X17X0.8
€ 5.50
92025L
920251294
ref: 92025L
SHIM,12.5X17X0.9
920251294
€ 5.50
92025M
920251295
ref: 92025M
SHIM,12.5X17X1.0
€ 5.50
92025N
920251312
ref: 92025N
SHIM,T=0.15
€ 7.00
92025O
920251313
ref: 92025O
SHIM,T=0.5
920251313
€ 5.50
92025P
920251314
ref: 92025P
SHIM,T=0.6
€ 6.00
92025Q
920251315
ref: 92025Q
SHIM,T=0.7
€ 6.00
92025R
920251316
ref: 92025R
SHIM,T=0.8
920251316
€ 7.00
92025S
920251317
ref: 92025S
SHIM,T=0.9
920251317
€ 6.50
92025T
920251318
ref: 92025T
SHIM,T=1.0
920251318
€ 6.50
92025U
920251319
ref: 92025U
SHIM,T=1.2
920251319
€ 6.00
220
220B0430
ref: 220
SCREW-PAN-CROS
220B0430
€ 0.50
480
480J2000
ref: 480
CIRCLIP-TYPE-C,20MM
480J2000
€ 1.00
555
555A0428
ref: 555
PIN-SPRING
555A0428
€ 1.00
610
610A0406
ref: 610
ROLLER,4X6
610A0406
€ 2.50
920250
920251341
ref: 920250
SHIM,T=0.9
920251341
€ 11.00
920251
920251342
ref: 920251
SHIM,T=1.0
€ 12.00
920252
920251343
ref: 920252
SHIM,T=1.2
€ 12.00
92025V
920251336
ref: 92025V
SHIM,T=0.15
920251336
€ 11.00
92025W
920251337
ref: 92025W
SHIM,T=0.5
920251337
€ 11.00
92025X
920251338
ref: 92025X
SHIM,T=0.6
€ 12.00
92025Y
920251339
ref: 92025Y
SHIM,T=0.7
920251339
€ 12.00
92025Z
920251340
ref: 92025Z
SHIM,T=0.8
€ 12.00
92026
920261106
ref: 92026
SPACER,DRIVE SHAFT
920261106
€ 5.50
92027
920271412
ref: 92027
COLLAR
920271412
€ 10.00
92033
920331074
ref: 92033
RING-SNAP,52MM
920331074
€ 3.00
92037
920371112
ref: 92037
CLAMP,BOOT FITTING
920371112
€ 11.50
92046
920461057
ref: 92046
BEARING-NEEDLE,KTV384
920461057
€ 47.00
92048
920481019
ref: 92048
RACE,ORT465021E01
920481019
€ 35.00
92049
920491084
ref: 92049
SEAL-OIL,SC28438
920491084
€ 9.00
92049A
920491085
ref: 92049A
SEAL-OIL,SC759510
920491085
€ 21.00
92049B
920491155
ref: 92049B
SEAL-OIL,SC32435.5
920491155
€ 10.00
92055
920551005
ref: 92055
RING-O,35.8X3.0
920551005
€ 3.50
92055A
920551039
ref: 92055A
RING-O,ID=150.4
920551039
€ 9.50
92055B
920551119
ref: 92055B
RING-O,27MM
920551119
€ 3.00
92055C
920551120
ref: 92055C
RING-0,55MM
920551120
€ 3.50
92066
920661110
ref: 92066
PLUG
920661110
€ 4.00
92066A
920661402
ref: 92066A
PLUG,OIL FILTER CAP
920661402
€ 7.50
92081
920811427
ref: 92081
SPRING,DRIVE SHAFT
920811427
€ 3.50
92116
921161010
ref: 92116
BEARING-ROLLER,4T3200
921161010
€ 37.50
92150
921501780
ref: 92150
BOLT,8X12
€ 3.00
