Genuine ZL Kawasaki Parts delivered quickly!


FRONT BEVEL GEAR

ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST

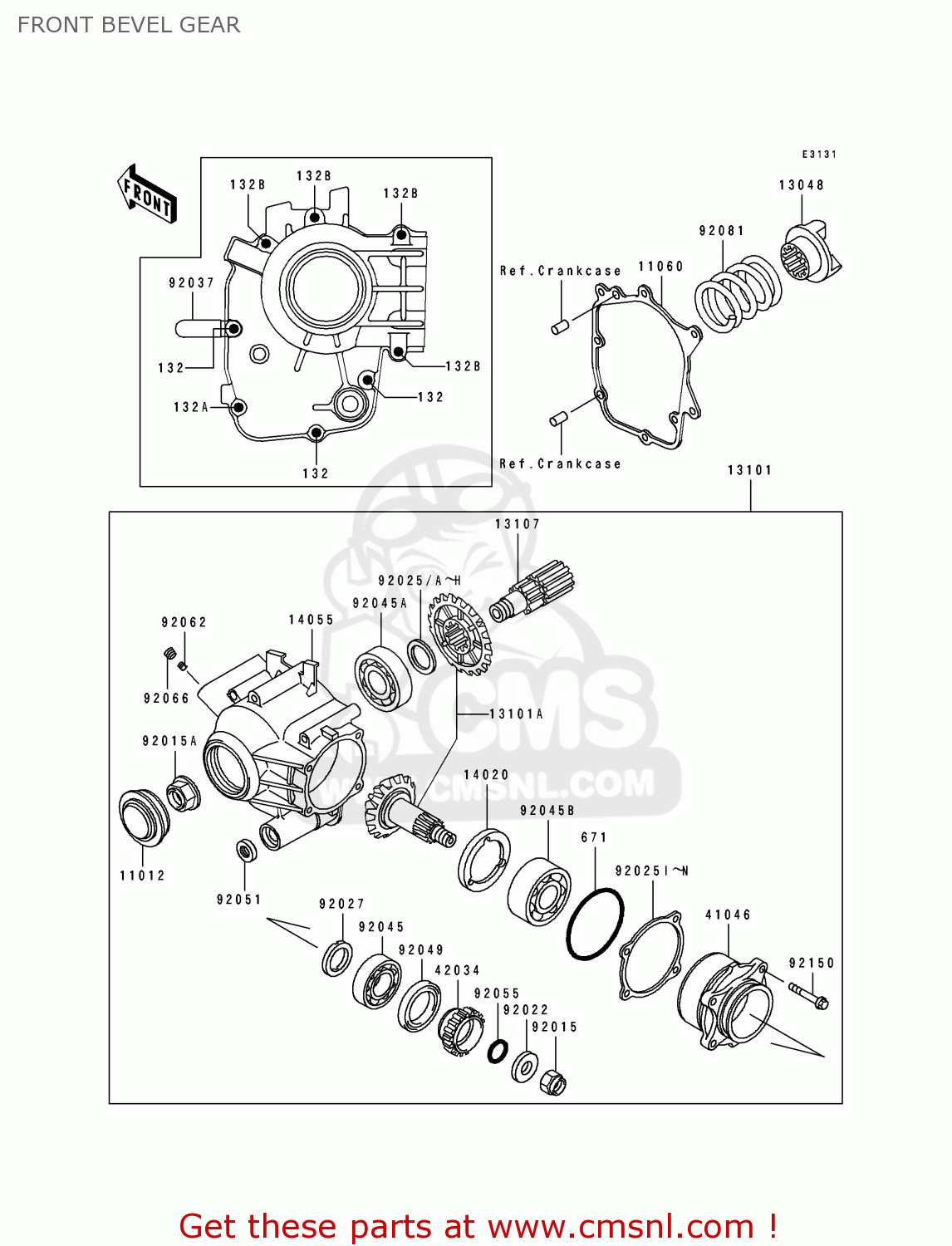

Front bevel gear diagram ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST

FRONT BEVEL GEAR ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST
FRONT BEVEL GEAR ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST
FRONT BEVEL GEAR ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121672
ref: 11012
CAP,FRONT BEVEL
110121672
€ 29.00
11060
110601152
ref: 11060
GASKET,BEVEL GEAR CAS (NAS)
110601152
€ 8.50
13048
130481068
ref: 13048
CAM-DAMPER
130481068
€ 57.50
13101
131011229
ref: 13101
GEAR-ASSY,FRONT BEVEL
€ 1,873.00
13101A
131015060
ref: 13101A
GEAR-ASSY,FRONT BEVEL
€ 1,141.50
13107
131071178
ref: 13107
SHAFT,BEVEL GEAR
€ 82.00
14020
140201065
ref: 14020
RETAINER
€ 30.50
14055
140551118
ref: 14055
CASE-GEAR,FRONT BEVEL
€ 521.50
41046
410461096
ref: 41046
HOUSING-BEARING,FRONT
€ 142.00
42034
420341091
ref: 42034
COUPLING,FR DRIVEN
420341091
€ 96.00
92015
920151067
ref: 92015
NUT,LOCK,14MM
920151067
€ 6.00
92015A
920151543
ref: 92015A
NUT
920151543
€ 12.00
92022
920221115
ref: 92022
WASHER,14.1X31X5
920221115
€ 8.00
92025
920251688
ref: 92025
SHIM,25.3X36X0.15
920251688
€ 5.50
92025A
920251689
ref: 92025A
SHIM,25.3X36X0.50
920251689
€ 5.50
92025B
920251690
ref: 92025B
SHIM,25.3X36X0.60
920251690
€ 5.50
92025C
920251691
ref: 92025C
SHIM,25.3X36X0.70
920251691
€ 5.50
92025D
920251692
ref: 92025D
SHIM,25.3X36X0.80
920251692
€ 5.50
92025E
920251693
ref: 92025E
SHIM,25.3X36X0.90
920251693
€ 5.50
92025F
920251694
ref: 92025F
SHIM,25.3X36X1.0
920251694
€ 5.50
92025G
920251695
ref: 92025G
SHIM,25.3X36X1.1
920251695
€ 5.50
92025H
920251696
ref: 92025H
SHIM,25.3X36X1.2
920251696
€ 5.50
92025I
920251772
ref: 92025I
SHIM,T=0.10
€ 4.50
92025J
920251773
ref: 92025J
SHIM,T=0.15
€ 4.50
92025K
920251774
ref: 92025K
SHIM,T=0.70
€ 5.50
92025L
920251775
ref: 92025L
SHIM,T=0.80
€ 5.50
92025M
920251776
ref: 92025M
SHIM,T=1.00
€ 5.50
92025N
920251777
ref: 92025N
SHIM,T=1.20
€ 5.50
92027
920271994
ref: 92027
COLLAR
€ 13.00
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92045
920451115
ref: 92045
BEARING-BALL,6205
920451115
€ 23.00
92045A
920451137
ref: 92045A
BEARING-BALL,TMB305
€ 43.50
92045B
920451147
ref: 92045B
BEARING-BALL,5305SH2C
920451147
€ 94.50
92049
920491038
ref: 92049
OIL SEAL,TC35527
920491038
€ 12.50
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
920551044
ref: 92055
RING-O,ID=18.64
920551044
€ 3.00
92062
920621079
ref: 92062
NOZZLE
920621079
€ 5.50
92066
920661227
ref: 92066
PLUG,OIL LINE,1/8X7
920661227
€ 4.00
92081
920811981
ref: 92081
SPRING,CAM DAMPER
€ 12.50
92150
921501777
ref: 92150
BOLT,6X25
€ 2.00
132
132E0625
ref: 132
BOLT-FLANGED-SMALL
132E0625
€ 3.00
132A
132E0640
ref: 132A
BOLT-FLANGED-SMALL
132E0640
€ 3.50
132B
132E0685
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
671
671B2570
ref: 671
O RING,70MM
671B2570
€ 4.50
