BRAKE PEDAL

ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST

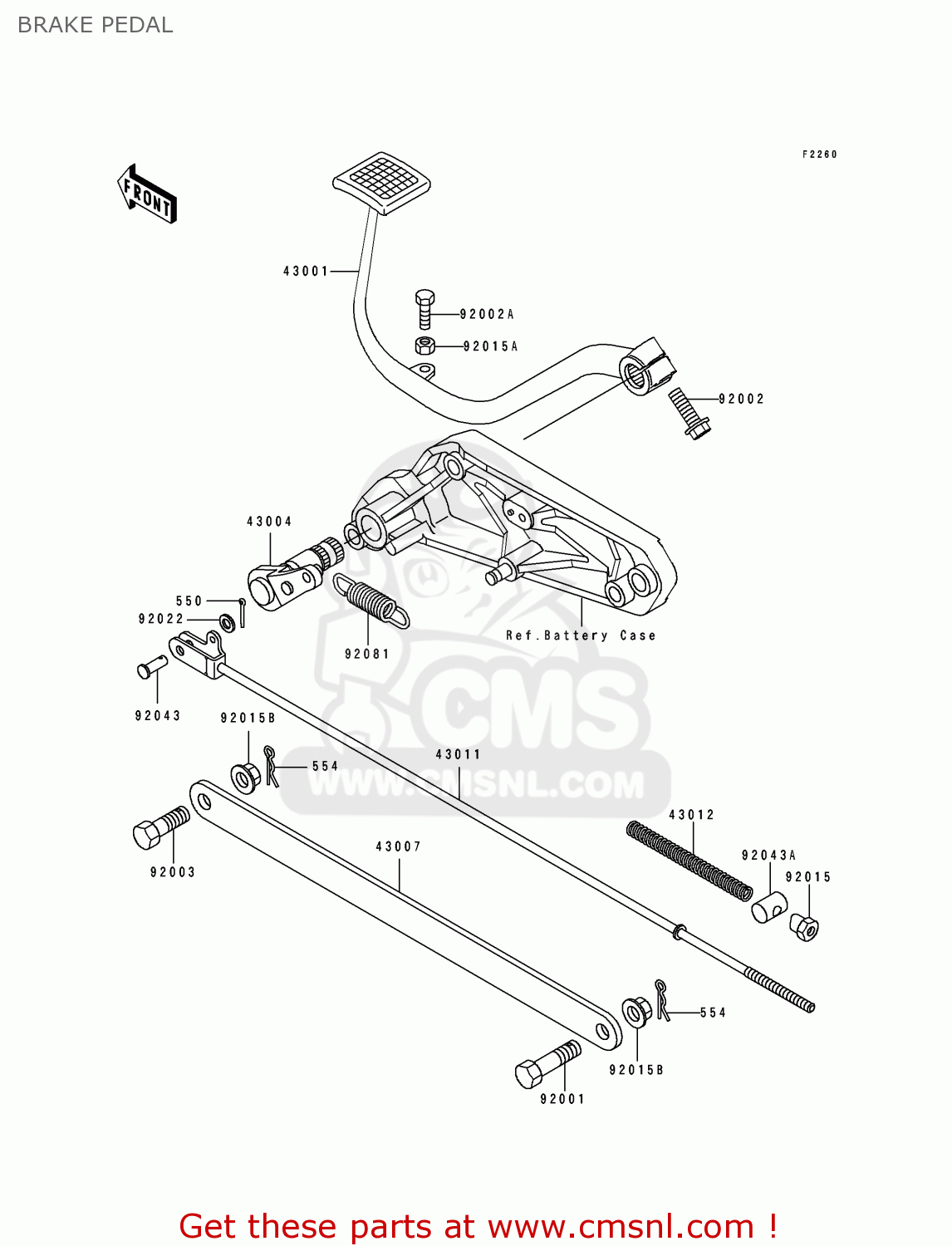

Brake pedal diagram ZL600B1 ELIMINATOR 600 1995 EU UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00

43001

430011206
ref: 43001

LEVER-BRAKE,PEDAL

€ 67.50

43004

430041116
ref: 43004

SHAFT-BRAKE

€ 36.50

43007

430071176
ref: 43007

ROD-TORQUE

€ 16.50

43011

430111162
ref: 43011

ROD-BRAKE

€ 20.50

43012

43012001
ref: 43012

SPRING,BRAKE ROD

€ 3.00

92001

920011519
ref: 92001

BOLT,10X37

€ 4.50

92002

920021201
ref: 92002

BOLT,FLANGED,8X25

€ 3.00

92002A

920021373
ref: 92002A

BOLT,6X20

€ 2.50

92003

92003096
ref: 92003

BOLT-TRQ LINK 10X29

€ 7.00

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92015A

920151391
ref: 92015A

NUT,6MM

€ 2.00

92015B

920151428
ref: 92015B

NUT,FLANGED,10MM

€ 3.00

92022

920221556
ref: 92022

WASHER,STEP,RR

€ 0.50

92043

92043064
ref: 92043

PIN-BRAKE ROD FITTING

€ 4.50

92043A

92043065
ref: 92043A

PIN-BRAKE ROD

€ 3.50

92081

920811561
ref: 92081

SPRING,SIDE STAND,BLA

€ 5.50
