RADIATOR
ZL600A2 1987 EUROPE WG ST / KPH

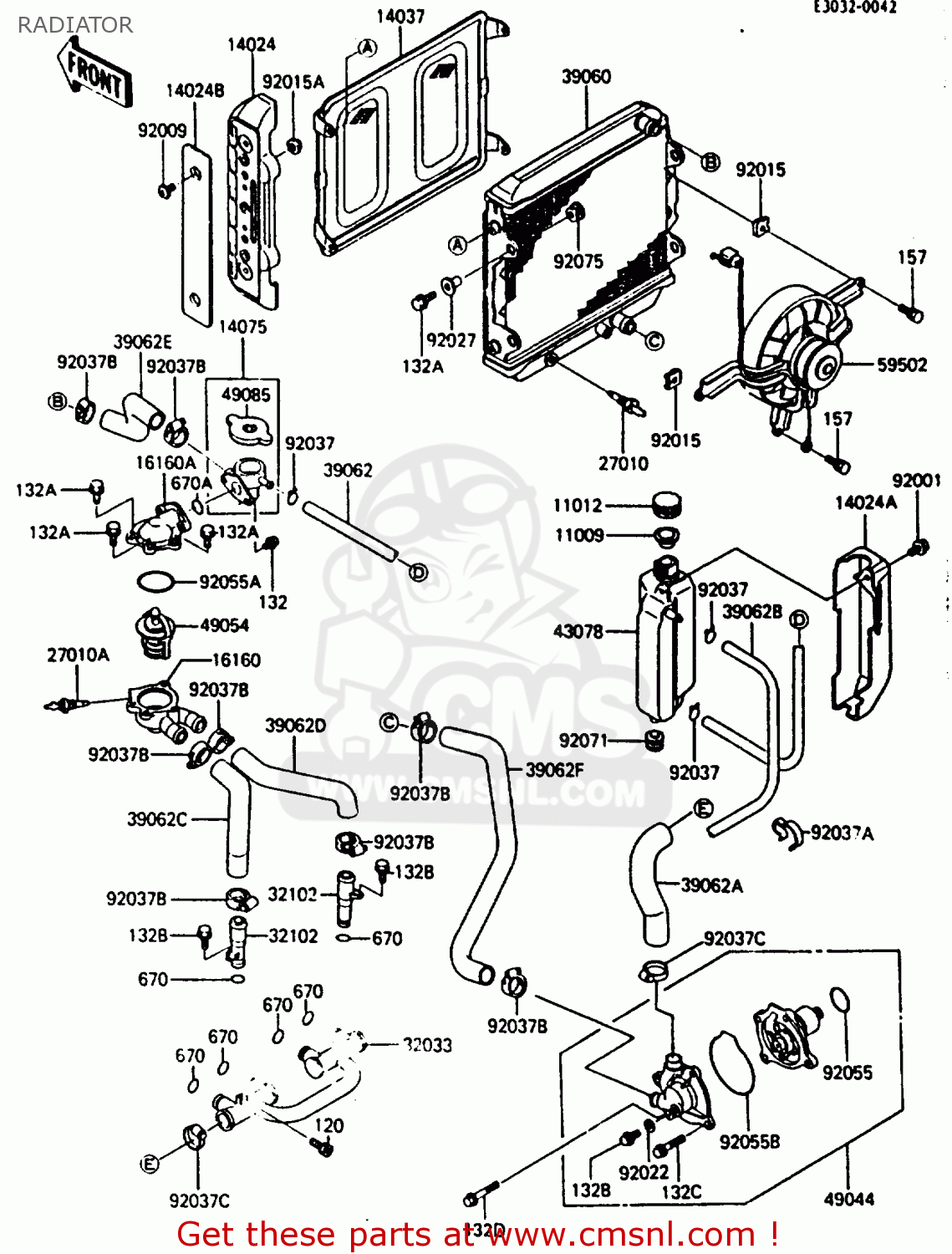

Radiator diagram ZL600A2 1987 EUROPE WG ST / KPH
RADIATOR ZL600A2 1987 EUROPE WG ST / KPH
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14024
140241221
ref: 14024
COVER,RADIATOR
€ 38.50
14024A
140241222
ref: 14024A
COVER,RESERVOIR
€ 16.50
14024B
140241313
ref: 14024B
COVER,RADIATOR
€ 51.50
14037
140371080
ref: 14037
SCREEN
€ 52.50
14075
140751065
ref: 14075
CAP-ASSY
€ 120.00
16160
161601112
ref: 16160
BODY,THERMOSTAT,LWR
€ 53.50
16160A
161601113
ref: 16160A
BODY,THERMOSTAT,UPP
€ 43.50
27010
270101167
ref: 27010
SWITCH,FAN
€ 108.50
27010A
270101173
ref: 27010A
SWITCH
€ 84.00
32033
320331593
ref: 32033
PIPE
€ 91.50
32102
321021043
ref: 32102
PIPE
€ 23.50
39060
390601070
ref: 39060
RADIATOR
€ 585.00
39062
390621069
ref: 39062
HOSE-COOLING,5.5X10.5
€ 25.00
39062A
390621111
ref: 39062A
HOSE-COOLING,PUMP-CYL
€ 21.00
39062B
390621125
ref: 39062B
HOSE-COOLING
€ 17.50
39062C
390621178
ref: 39062C
HOSE-COOLING,HEAD-THE
€ 17.50
39062D
390621179
ref: 39062D
HOSE-COOLING,HEAD-THE
€ 17.00
39062E
390621180
ref: 39062E
HOSE-COOLING,CAP-RADI
€ 13.50
39062F
390621181
ref: 39062F
HOSE-COOLING,RADIATOR
€ 31.50
43078
430781072
ref: 43078
RESERVOIR
€ 42.00
49044
490441054
ref: 49044
PUMP-WATER
€ 288.50
49054
490541055
ref: 49054
THERMOSTAT
€ 39.50
49085
490851005
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
59502
595021064
ref: 59502
FAN-ASSY
€ 442.50
92001
920011860
ref: 92001
BOLT,W/P,6X16
€ 2.50
92009
920091286
ref: 92009
SCREW,6X10
€ 2.50
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
92018005
ref: 92015A
NUT,PUSH,3MM
€ 2.00
92022
920221627
ref: 92022
WASHER,6MM
€ 4.00
92027
92027194
ref: 92027
COLLAR
€ 3.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371552
ref: 92037A
CLAMP
€ 6.50
93037B
920371589
ref: 93037B
CLAMP,COOLING HOSE
€ 13.00
92037C
920371600
ref: 92037C
CLAMP,COOLING HOSE
€ 4.00
92055
920551266
ref: 92055
RING-O,33.8MM
€ 12.00
92055A
920551279
ref: 92055A
RING-O,45MM
€ 4.50
92055B
920551315
ref: 92055B
RING-O,WATER PUMP
€ 8.00
92071
920711115
ref: 92071
GROMMET,RESERVOIR TAN
€ 3.50
92075
92075277
ref: 92075
DAMPER
€ 1.00
120
120S0612
ref: 120
BOLT-SOCKET
€ 1.50
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0620
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
132B
132W0612
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132W0625
ref: 132C
BOLT-FLANGED-SMALL
€ 2.50
132D
132W0645
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
157
157J0616
ref: 157
BOLT-WSP
€ 1.00
670
670B2016
ref: 670
O RING,16MM
€ 1.00
670A
670B2020
ref: 670A
O RING,20MM
€ 1.00
