FRONT FORK
ZL600A2 1987 EUROPE WG ST / KPH

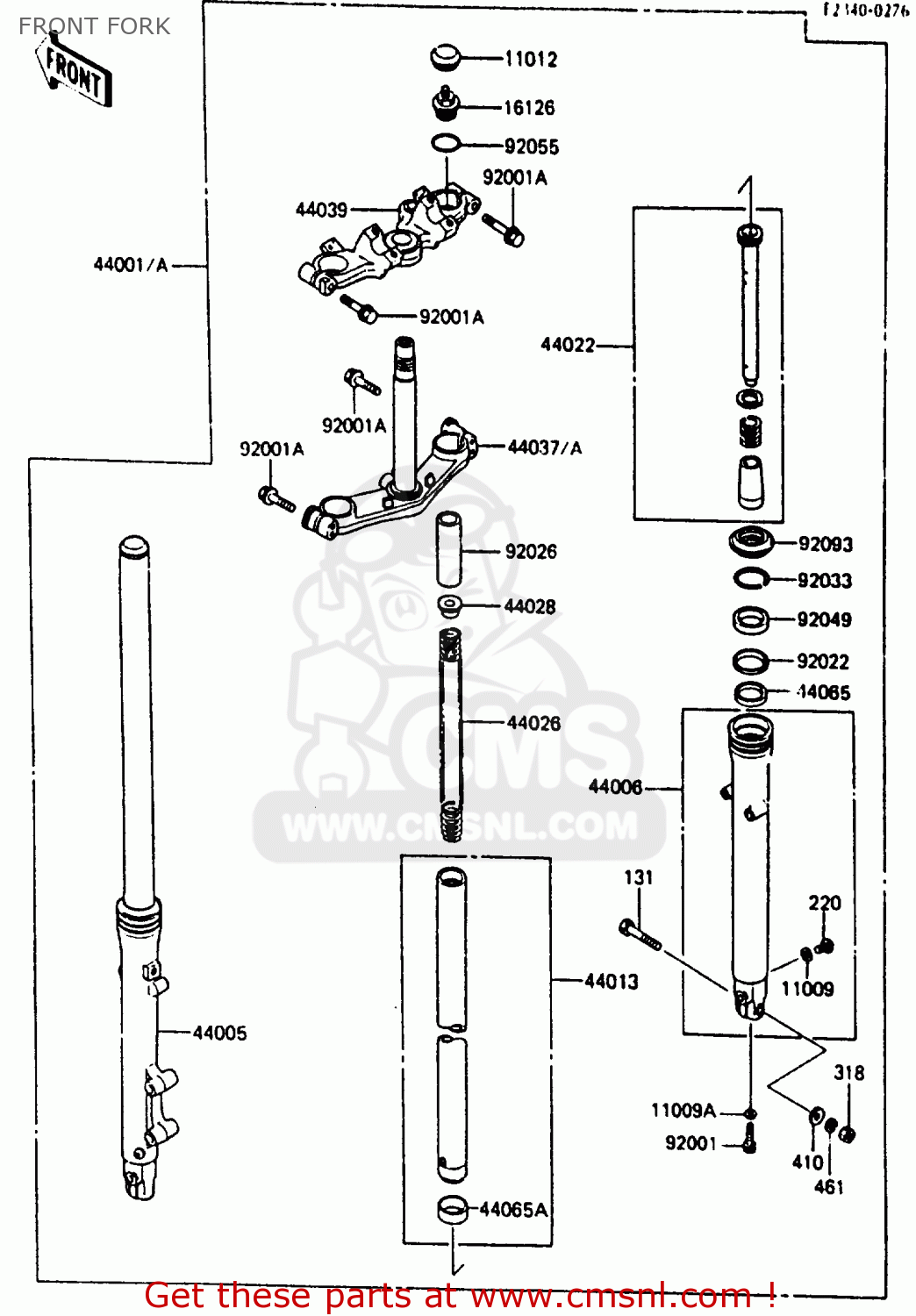

Front fork diagram ZL600A2 1987 EUROPE WG ST / KPH
FRONT FORK ZL600A2 1987 EUROPE WG ST / KPH
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
€ 3.00
11012
110121548
ref: 11012
CAP,FORK TOP
€ 9.50
16126
161261177
ref: 16126
VALVE,AIR
€ 20.50
44001
440011622
ref: 44001
EU, ST
FORK-FRONT
€ 2,372.50
44001A
440011633
ref: 44001A
NR, WG
FORK-FRONT
€ 2,372.50
44005
440051248
ref: 44005
PIPE-LEFT FORK OUTER
€ 255.50
44006
440061247
ref: 44006
PIPE-RIGHT FORK OUTER
€ 285.00
44013
440131251
ref: 44013
PIPE-FORK INNER
€ 156.00
44022
440221195
ref: 44022
CYLINDER-FORK
€ 72.00
44026
440261336
ref: 44026
SPRING-FRONT FORK
€ 40.00
44028
440281058
ref: 44028
GUIDE-FORK SPRING
€ 6.00
44037
440371197
ref: 44037
FU, ST
HOLDER-FORK UNDER
€ 186.00
44037A
440371205
ref: 44037A
NR, WG
HOLDER-FORK UNDER
€ 186.00
44039
440391134
ref: 44039
HOLDER-FORK UPPER
€ 178.50
44065
440651051
ref: 44065
BUSHING-FRONT FORK
€ 15.00
44065A
440651058
ref: 44065A
BUSHING-FRONT FORK,IN
€ 20.00
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92001A
920011188
ref: 92001A
BOLT,8X40
€ 5.50
92022
920221455
ref: 92022
WASHER,FORK OUTER PIP
€ 4.50
92026
920264002
ref: 92026
SPACER,FORK SPRING
€ 3.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92049
920491177
ref: 92049
SEAL-OIL,FORK
€ 15.00
92055
920551361
ref: 92055
RING-O,FORK TOP
€ 2.50
92093
920931160
ref: 92093
SEAL,FORK
€ 16.50
131
131G0860
ref: 131
BOLT.8X60
€ 1.00
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
€ 2.50
318
318G0800
ref: 318
NUT-HEX-SMALL,8MM
€ 1.00
410
410D0800
ref: 410
WASHER-PLAIN,8MM
€ 2.00
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
