CARBURETOR PARTS
ZL600A2 1987 EUROPE WG ST / KPH

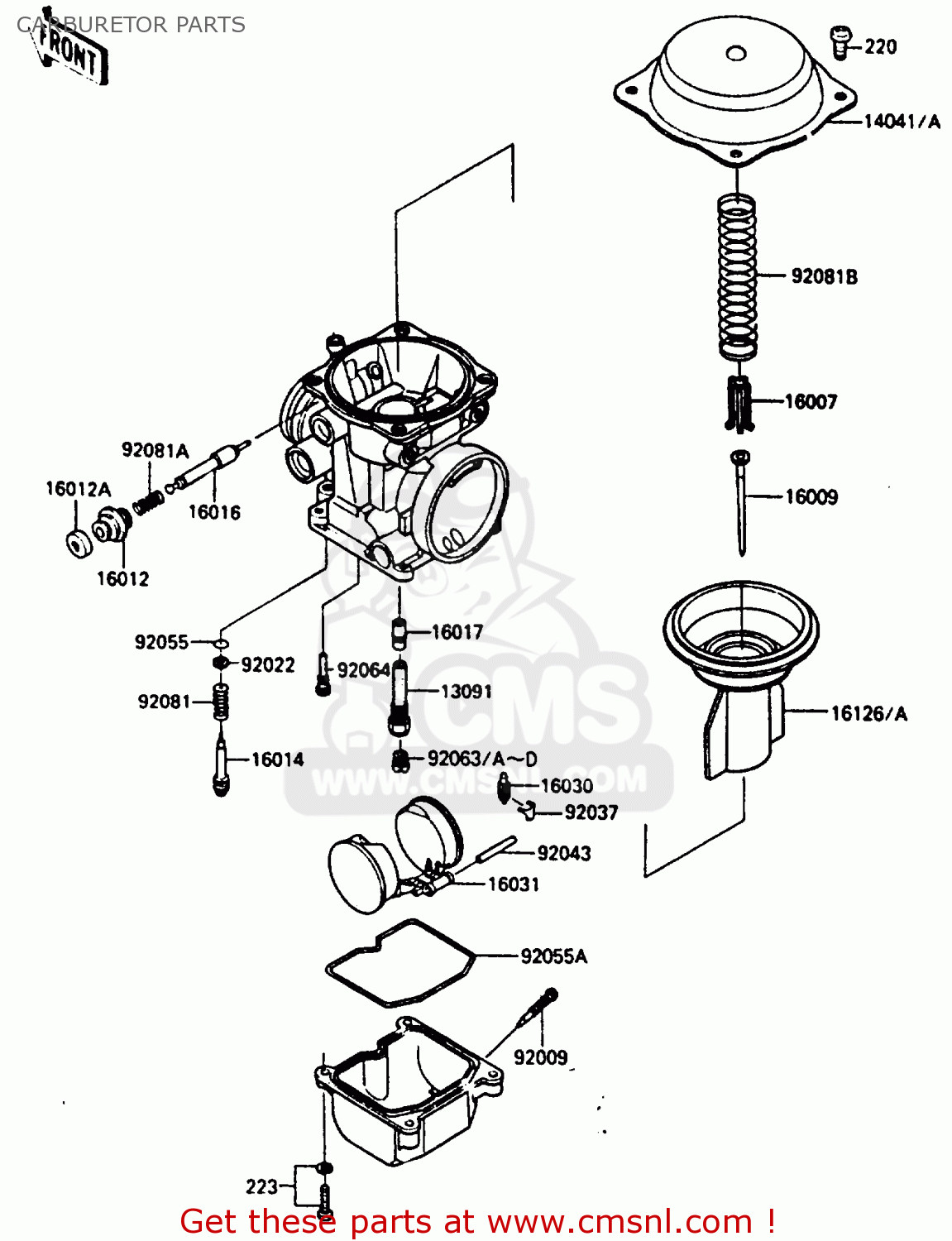

Carburetor parts diagram ZL600A2 1987 EUROPE WG ST / KPH
CARBURETOR PARTS ZL600A2 1987 EUROPE WG ST / KPH
×
prices are in EUR
ref
part #
description
quantity
13091
130911406
ref: 13091
HOLDER,NEEDLE JET
€ 19.00
14041
140411076
ref: 14041
TOP-CHAMBER
€ 68.00
14041A
140411077
ref: 14041A
TOP-CHAMBER,MIXING,IN
€ 68.00
16007
160071120
ref: 16007
SEAT-SPRING
€ 16.50
16009
160091310
ref: 16009
NEEDLE-JET,N27Z
€ 20.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16016
160141054
ref: 16016
SCREW-PILOT AIR
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
€ 30.50
16017
160171292
ref: 16017
JET-NEEDLE
€ 36.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
16126
161261159
ref: 16126
EU, NR, WG
VALVE,VACUUM
€ 176.50
16126A
161261184
ref: 16126A
ST
VALVE,VACUUM
€ 122.00
92009
920091434
ref: 92009
SCREW
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551222
ref: 92055A
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631001
ref: 92063
(RACING USE ONLY)
JET-MAIN,#95
€ 10.00
92063A
920631003
ref: 92063A
MAIN JET, 2ND, # 90
€ 9.50
92063B
920631004
ref: 92063B
(RACING USE ONLY)
JET-MAIN,#92
€ 10.00
92063C
920631023
ref: 92063C
(RACING USE ONLY)
JET-MAIN,#85
€ 9.50
92063D
920631024
ref: 92063D
(RACING USE ONLY)
JET-MAIN,#88
€ 10.00
92064
920641033
ref: 92064
JET-PILOT,#27.5
€ 11.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
€ 6.00
92081B
920811775
ref: 92081B
SPRING,VACUUM VALVE
€ 17.00
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
