BATTERY CASE
ZL600A2 1987 EUROPE WG ST / KPH

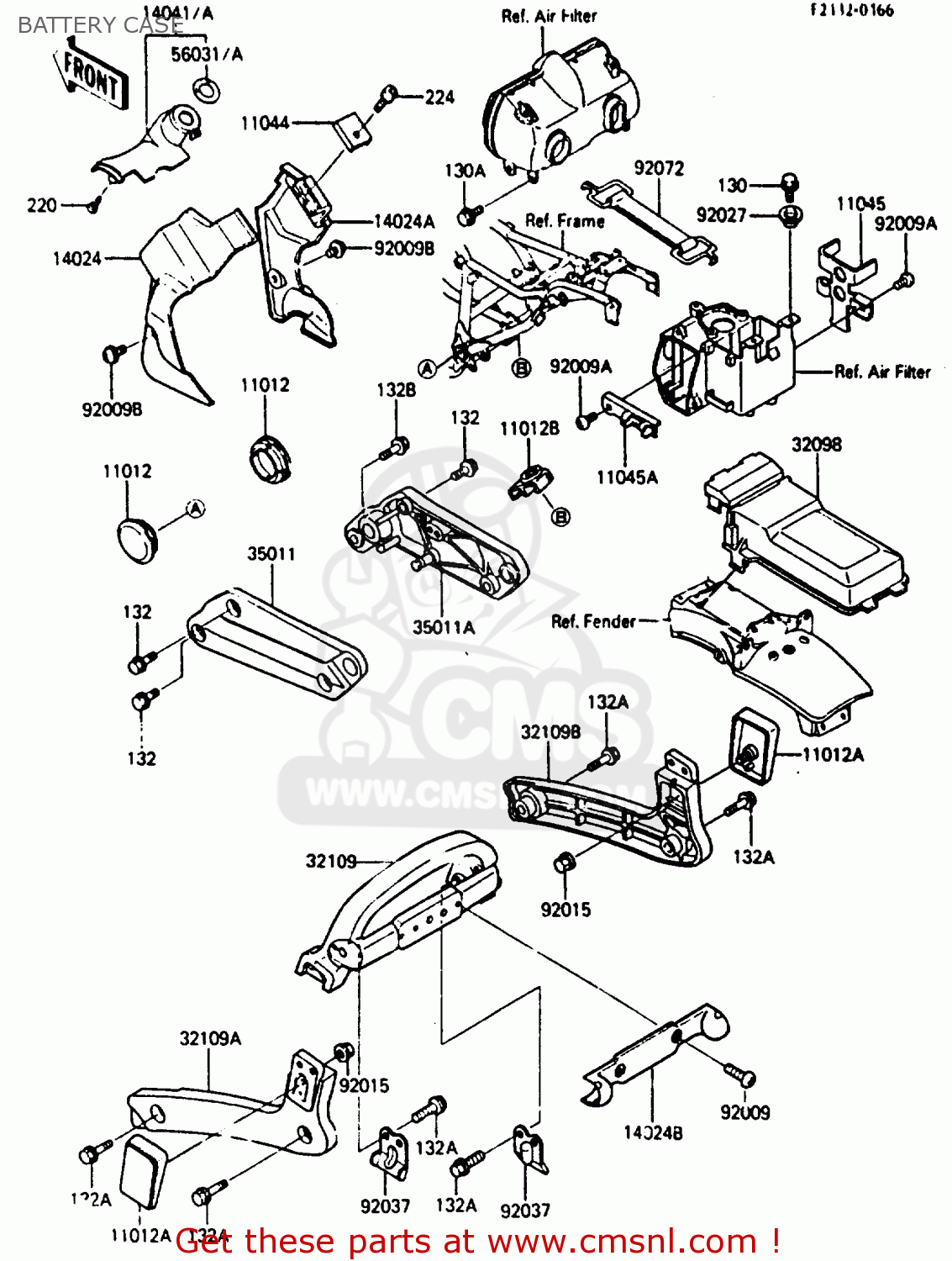

Battery case diagram ZL600A2 1987 EUROPE WG ST / KPH
BATTERY CASE ZL600A2 1987 EUROPE WG ST / KPH
×
prices are in EUR
ref
part #
description
quantity
11012
110121385
ref: 11012
CAP,SWING ARM
€ 11.50
11012A
110121553
ref: 11012A
CAP,REFLECTOR
€ 12.50
11012B
110121554
ref: 11012B
CAP
€ 5.50
11044
110441293
ref: 11044
BRACKET,GUSSET COVER
€ 6.50
11045
110441810
ref: 11045
BRACKET,ELECTRIC BASE
€ 8.00
11045A
110451210
ref: 11045A
BRACKET,JUNCTION BOX
€ 8.50
14024
140241242
ref: 14024
COVER,HEAD GUSSET,LH
€ 11.00
14026A
140241243
ref: 14026A
COVER,HEAD GUSSET,RH
€ 12.00
14024B
140241328
ref: 14024B
COVER,FRAME GRIP
€ 10.50
14041
140411062
ref: 14041
EU, ST
COVER-COMP,HANDLE HOL
€ 36.50
14041A
140411074
ref: 14041A
NR, WG
COVER-COMP,HANDLE HOL
€ 35.00
32098
320981072
ref: 32098
CASE-TOOL
€ 13.50
32109
321091142
ref: 32109
GRIP-FRAME,UPP
€ 122.50
32109A
321091150
ref: 32109A
GRIP-FRAME,LWR,LH
€ 143.50
32109B
321091151
ref: 32109B
GRIP-FRAME,LWR,RH
€ 143.50
35011
350111296
ref: 35011
STAY,MUFFLER,LH
€ 194.50
35011A
350111297
ref: 35011A
STAY,MUFFLER,RH
€ 194.50
56031
560311419
ref: 56031
EU, ST
LABEL-MANUAL,IGNITION
€ 5.50
56031A
560311457
ref: 56031A
NR, WG
LABEL-MANUAL,IGNITION
€ 3.00
92009
920091182
ref: 92009
SCREW,5X12,BLACK
€ 1.50
92009A
920091261
ref: 92009A
SCREW,TAPPING,6MM
€ 2.00
92009B
920091402
ref: 92009B
SCREW,6X10
€ 1.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92027
92027122
ref: 92027
COLLAR,L=4.7
€ 5.50
92037
920371801
ref: 92037
CLAMP,FRAME GRIP
€ 4.00
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
130A
130C0612
ref: 130A
BOLT-FLANGED,6X12
€ 1.50
132
132E0825
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132E0830
ref: 132A
BOLT-FLANGED-SMALL
€ 3.50
132B
132E0835
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
224
224C0516
ref: 224
SCREW-PAN-WP-CROS
€ 0.50
