HEAD LAMP
ZL600A2 1987 EUROPE WG ST / KPH

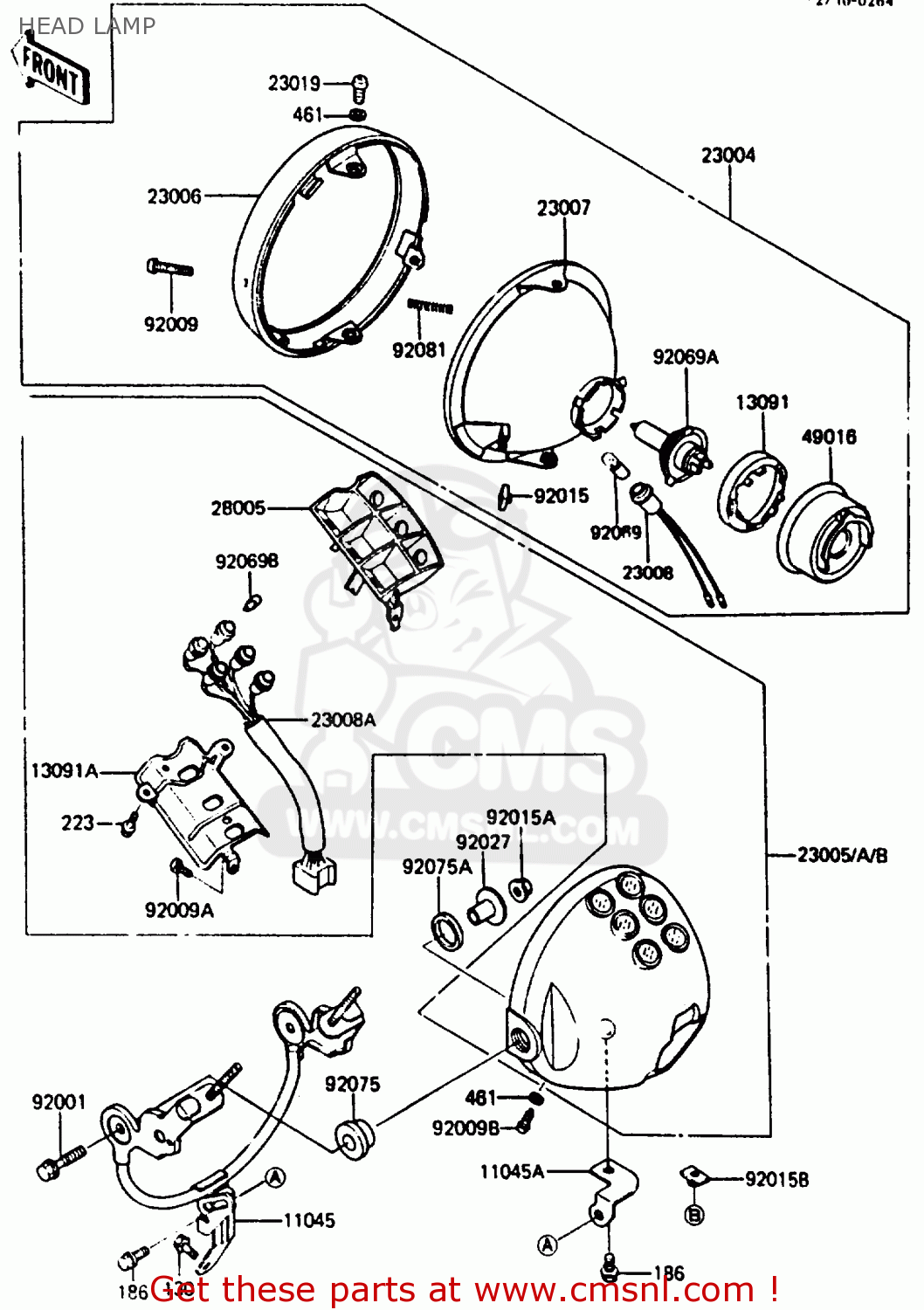

Head lamp diagram ZL600A2 1987 EUROPE WG ST / KPH
HEAD LAMP ZL600A2 1987 EUROPE WG ST / KPH
×
prices are in EUR
ref
part #
description
quantity
11045
110441804
ref: 11045
BRACKET,HEAD LAMP STA
€ 79.50
11045A
110441915
ref: 11045A
BRACKET,HEAD LAMP,LWR
€ 6.50
13091
130911386
ref: 13091
HOLDER
€ 7.50
13091A
130911387
ref: 13091A
HOLDER,HEAD LAMP
€ 17.50
23004
230041203
ref: 23004
LAMP-HEAD
€ 468.00
23005
230051076H3
ref: 23005
BODY-COMP-HEAD LAMP,C
€ 246.00
23005A
230051076H8
ref: 23005A
BODY-COMP-HEAD LAMP,E
€ 335.00
23006
230061057
ref: 23006
RIM-LAMP
€ 36.00
23007
230071154
ref: 23007
LENS-COMP,HEAD LAMP
€ 42.00
23008
23008042
ref: 23008
SOCKET-ASSY,PARKING L
€ 8.50
23008A
230081316
ref: 23008A
SOCKET-ASSY,HEAD LAMP
€ 55.00
23019
23019031
ref: 23019
SCREW,LENS FITTING
€ 2.50
28005
280051053
ref: 28005
BODY-LAMP,INDICATOR
€ 20.00
49016
490161110
ref: 49016
COVER-SEAL
€ 8.50
92001
920011910
ref: 92001
BOLT,FLANGED,8X35
€ 4.50
92009
920091394
ref: 92009
SCREW
€ 3.00
92009A
920091395
ref: 92009A
SCREW
€ 2.50
92009B
92011024
ref: 92009B
SCREW-PAN HEAD,5MM
€ 2.00
92015
23020012
ref: 92015
NUT,ADJUSTING
€ 2.50
92015A
920151014
ref: 92015A
NUT,8MM
€ 0.50
92015B
920151231
ref: 92015B
NUT,6MM,HEAD LAMP
€ 6.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
92049B
920691020
ref: 92049B
BULB,12C3W T-7
€ 3.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92081
920811892
ref: 92081
SPRING
€ 3.00
130
130N0610
ref: 130
BOLT,FLANGED,6X10
€ 2.50
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
223
223D0410
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
