TRANSMISSION

ZG1300A1 Z1300 1984 EUROPE UK FR FG IT NR SD

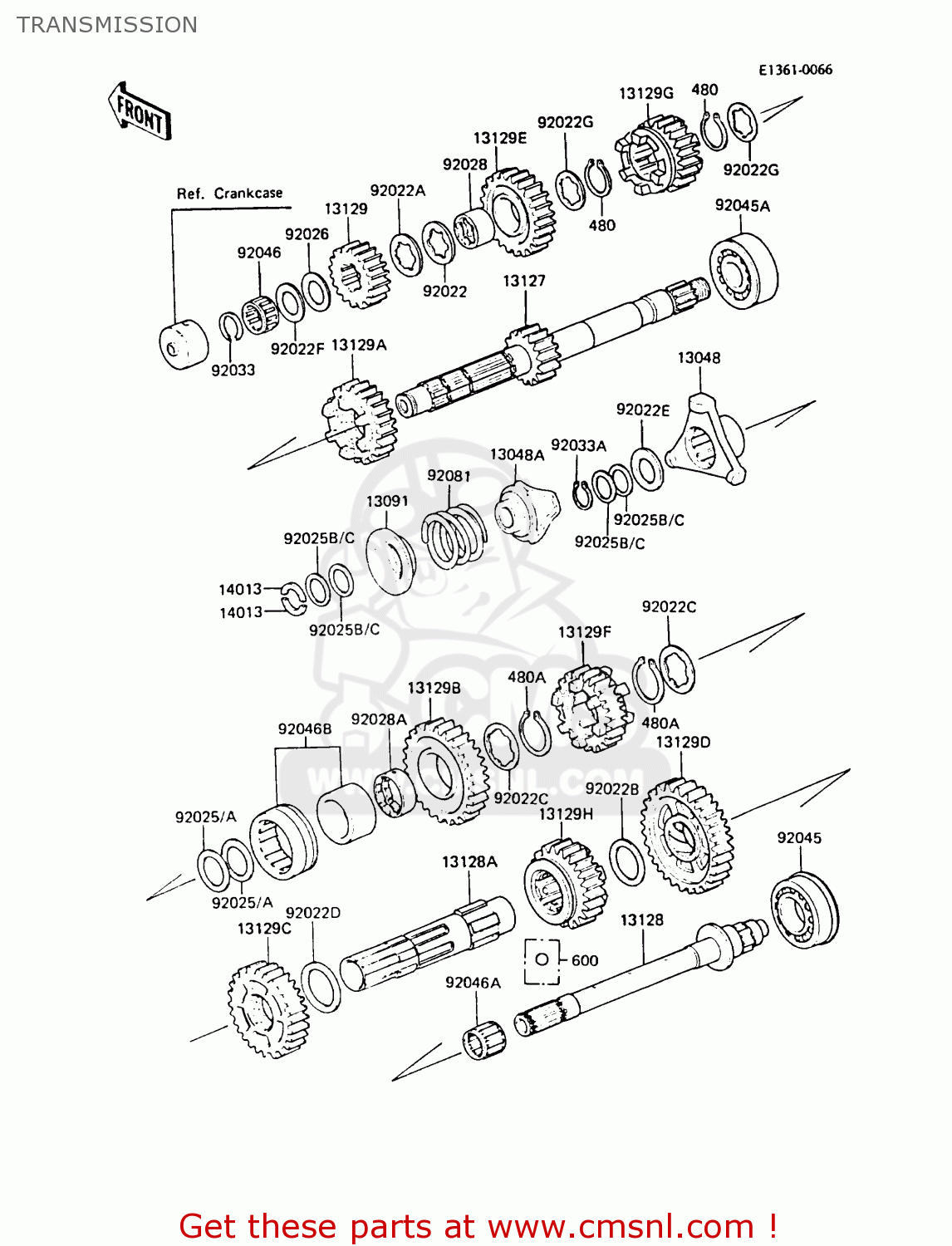

Transmission diagram ZG1300A1 Z1300 1984 EUROPE UK FR FG IT NR SD

TRANSMISSION ZG1300A1 Z1300 1984 EUROPE UK FR FG IT NR SD
TRANSMISSION ZG1300A1 Z1300 1984 EUROPE UK FR FG IT NR SD
TRANSMISSION ZG1300A1 Z1300 1984 EUROPE UK FR FG IT NR SD
prices are in EUR
ref
part #
description
quantity
480
480J2800
ref: 480
CIRCLIP-TYPE-C,28MM
480J2800
€ 3.50
13048
130481010
ref: 13048
CAM-DAMPER
130481010
€ 64.00
13048A
130481011
ref: 13048A
CAM-DAMPER
130481011
€ 82.50
13091
130911091
ref: 13091
HOLDER,SPRING
€ 41.00
13127
131271114
ref: 13127
SHAFT-TRANSMISSION IN
€ 262.50
13128
131281050
ref: 13128
SHAFT-TRANSMISSION OU
131281050
€ 336.50
13128A
131281116
ref: 13128A
SHAFT-OUTPUT,OUTER
€ 295.00
13129
131291096
ref: 13129
GEAR,INPUT 2ND,21T
131291096
€ 49.50
13129A
131291098
ref: 13129A
GEAR,INPUT 4TH,27T
131291098
€ 173.00
13129B
131291101
ref: 13129B
GEAR,OUTPUT 2ND,35T
131291101
€ 187.00
13129C
131291102
ref: 13129C
GEAR,OUTPUT 3RD,32T
€ 189.00
13129D
131291257
ref: 13129D
GEAR,OUTPUT LOW,39T
€ 216.50
13129E
131291592
ref: 13129E
GEAR,INPUT TOP,29T
131291592
€ 157.00
13129F
131291593
ref: 13129F
GEAR,OUTPUT TOP,27T
131291593
€ 123.00
13129G
131291597
ref: 13129G
GEAR,INPUT 3RD,25T
€ 216.50
13129H
131291598
ref: 13129H
GEAR,OUTPUT 4TH,29T
131291598
€ 130.50
14013
140131001
ref: 14013
RING,POSITION
140131001
€ 2.00
92022
920221098
ref: 92022
WASHER,TOOTHED,30X38X
920221098
€ 6.00
92022A
920221099
ref: 92022A
WASHER,CLAW,29X38X1
920221099
€ 3.50
92022B
920221100
ref: 92022B
WASHER,34.3X44X1
920221100
€ 2.50
92022C
920221101
ref: 92022C
WASHER,TOOTHED,36.3X4
920221101
€ 3.50
92022D
920221102
ref: 92022D
WASHER,36.3X46X2.0
€ 4.00
92022E
920221103
ref: 92022E
WASHER,23.2X38X3
€ 6.00
92022F
92022212
ref: 92022F
WASHER-PLAIN,22MM
92022212
€ 6.50
92022G
92024042
ref: 92022G
WASHER,TOOTHED,26X35.
92024042
€ 7.50
92025
920251002
ref: 92025
SHIM,34.3X42X0.1
920251002
€ 3.00
92025A
920251003
ref: 92025A
SHIM,34.3X42X0.3
920251003
€ 3.00
92025B
920251004
ref: 92025B
SHIM,23.3X30.7X0.1
€ 3.00
92025C
920251005
ref: 92025C
SHIM,23.3X30.7X0.3
€ 3.50
92026
920261020
ref: 92026
SPACER,22X35.5X1.0
920261020
€ 3.50
92028
920281302
ref: 92028
BUSHING,INPUT TOP GEA
920281302
€ 18.50
92028A
920281303
ref: 92028A
BUSHING,OUTPUT 2ND GE
920281303
€ 19.50
92033
92033025
ref: 92033
CIRCLIP,25MM
92033025
€ 3.00
92033A
920331021
ref: 92033A
RING-SNAP,22.8MM
920331021
€ 2.00
92045
920451018
ref: 92045
BEARING,BALL,#3206
920451018
€ 83.50
92045A
920451028
ref: 92045A
BEARING-BALL,5305NSH2
920451028
€ 135.00
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
92046031
€ 19.50
92046A
920461015
ref: 92046A
BEARING-NEEDLE,K23X28
€ 17.50
92046B
920461119
ref: 92046B
BEARING-NEEDLE,TR1-34
€ 130.00
92081
920811286
ref: 92081
SPRING,DAMPER
€ 36.00
480A
480J3600
ref: 480A
CIRCLIP-TYPE-C,36MM
480J3600
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
