REAR MASTER CYLINDER

ZG1300A1 Z1300 1984 EUROPE UK FR FG IT NR SD

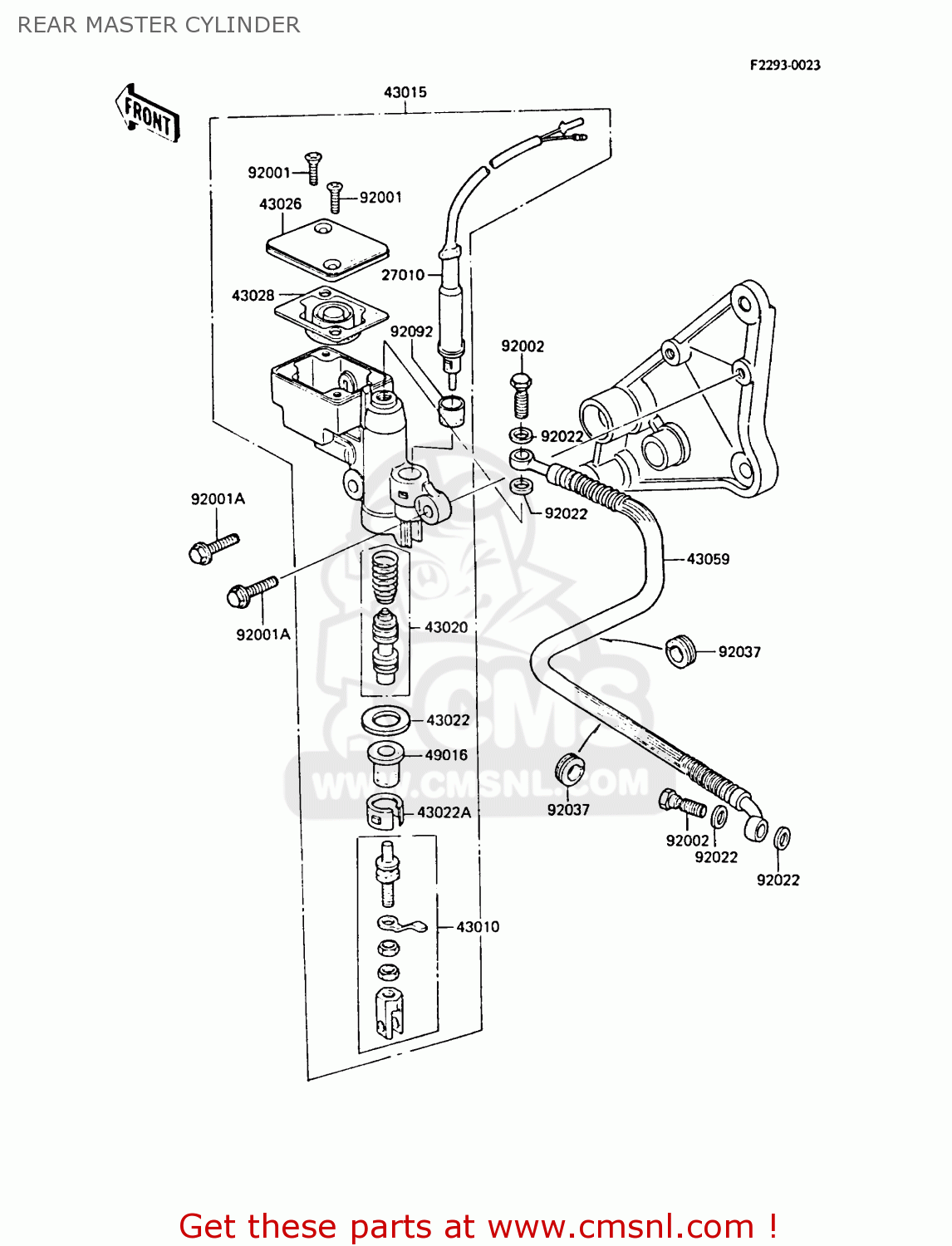

Rear master cylinder diagram ZG1300A1 Z1300 1984 EUROPE UK FR FG IT NR SD

prices are in EUR

ref

part #

description

quantity

27010

270101027
ref: 27010

SWITCH,BRAKE,RR

€ 66.50

43010

430101001
ref: 43010

ROD-ASSY-BRAKE

€ 41.00

43015

430151037
ref: 43015

CYLINDER,RR MASTER

€ 484.50

43020

430201024
ref: 43020

PISTON-COMP-BRAKE,RR

€ 41.50

43022

430221002
ref: 43022

STOPPER-BRAKE,PISTON

€ 2.50

43022A

430221003
ref: 43022A

STOPPER-BRAKE,DUST CO

€ 2.50

43026

430261009
ref: 43026

CAP,OIL CUP

€ 27.00

43028

430281007
ref: 43028

DIAPHRAGM,MASTER CYLI

€ 20.00

43059

430591254
ref: 43059

HOSE-BRAKE,L=620

€ 72.50

49016

490161026
ref: 49016

COVER-SEAL

€ 10.00

92001

920011055
ref: 92001

SCREW,COUNTERSUNK HED

€ 3.50

92001A

920011095
ref: 92001A

BOLT,8X28

€ 4.50

92002

920021888
ref: 92002

BOLT,OIL,L=23

€ 3.50

92022

43067001
ref: 92022

WASHER,10.5X15X1.5

€ 1.50

92037

43064007
ref: 92037

43064007

92092

920921007
ref: 92092

BUSHING-RUBBER

€ 9.50

REAR MASTER CYLINDER
