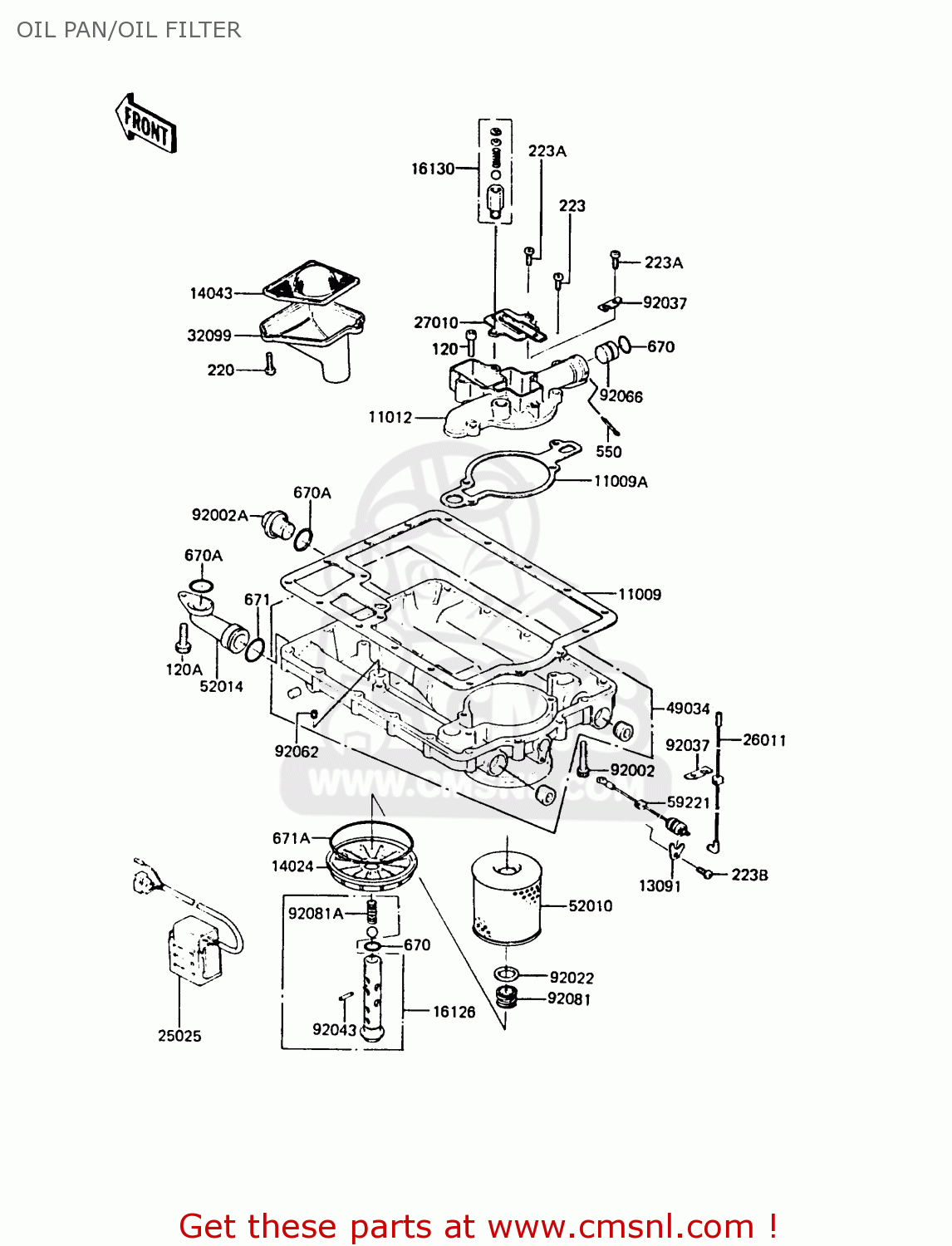

OIL PAN/OIL FILTER

ref

part #

description

quantity

120

120P0635
ref: 120

BOLT,SOCKET,6X35

€ 1.50

120A

120Z0620
ref: 120A

BOLT-SOCKET,6X20

€ 3.00

220

220B0620
ref: 220

SCREW-PAN HEAD,6X20

€ 2.50

223

223B0406
ref: 223

SCREW-PAN-WS-CROS

€ 0.50

223A

223B0614
ref: 223A

SCREW-KIT

€ 2.50

223B

223D0614
ref: 223B

SCREW-PAN-WS-CROS

€ 2.00

550

550D2040
ref: 550

PIN,COTTER,2.0X40

€ 1.50

670

670B2016
ref: 670

O RING,16MM

€ 1.00

670A

670B2022
ref: 670A

O RING,22MM

€ 3.00

671

671B2525
ref: 671

O RING,25MM

€ 3.00

671A

671B2595
ref: 671A

O RING,95MM

€ 4.50

11009

110091093
ref: 11009

GASKET,OIL PAN (MCA)

€ 22.50

11009A

110091198
ref: 11009A

GASKET,OIL FILTER (MCA)

€ 7.00

11012

110121148
ref: 11012

CAP,OIL FILTER

€ 40.50

13091

130911080
ref: 13091

HOLDER,CONNECTOR

€ 3.50

14024

140251170
ref: 14024

COVER,OIL FILTER

€ 35.00

14043

140431008
ref: 14043

FILTER,OIL

€ 17.50

16126

161261006
ref: 16126

BOLT ASSY,OIL FILTER

€ 39.00

16130

161301001
ref: 16130

VALVE-ASSY-RELIEF

€ 28.50

25025

250251003
ref: 25025

WARNER,OIL LEVEL

€ 238.00

26011

260111262
ref: 26011

WIRE-LEAD,OIL SWITCH

€ 6.50

27010

270101038
ref: 27010

SWITCH,OIL LEVEL

€ 96.50

32099

320991017
ref: 32099

CASE,OIL FILTER

€ 24.00

49034

490345005
ref: 49034

PAN-OIL

€ 210.00

52010

16099002
ref: 52010

ELEMENT-OIL FILTER

€ 13.00

52014

520141002
ref: 52014

ELBOW,OIL PASSAGE

€ 31.50

59221

592211002
ref: 59221

CONNECTOR,OIL SW CORD

€ 65.50

92002

920021270
ref: 92002

BOLT,6X35

€ 2.50

92002A

920021276
ref: 92002A

BOLT,OIL DRAIN

€ 17.50

92022

920221012
ref: 92022

WASHER,20.5X30X1

€ 3.00

92037

920371211
ref: 92037

CLAMP,LEAD WIRE

€ 2.50

92043

92043111
ref: 92043

SPRING PIN

€ 4.00

92062

92062011
ref: 92062

NOZZLE,OIL

€ 5.50

92066

920661023
ref: 92066

PLUG,OIL GALLARY,16X3

€ 3.50

92081

920811018
ref: 92081

SPRING,OIL FILTER

€ 3.00

92081A

92081133
ref: 92081A

SPRING,PISTON

€ 5.50
