FRONT BRAKE

ZG1300A1 Z1300 1984 EUROPE UK FR FG IT NR SD

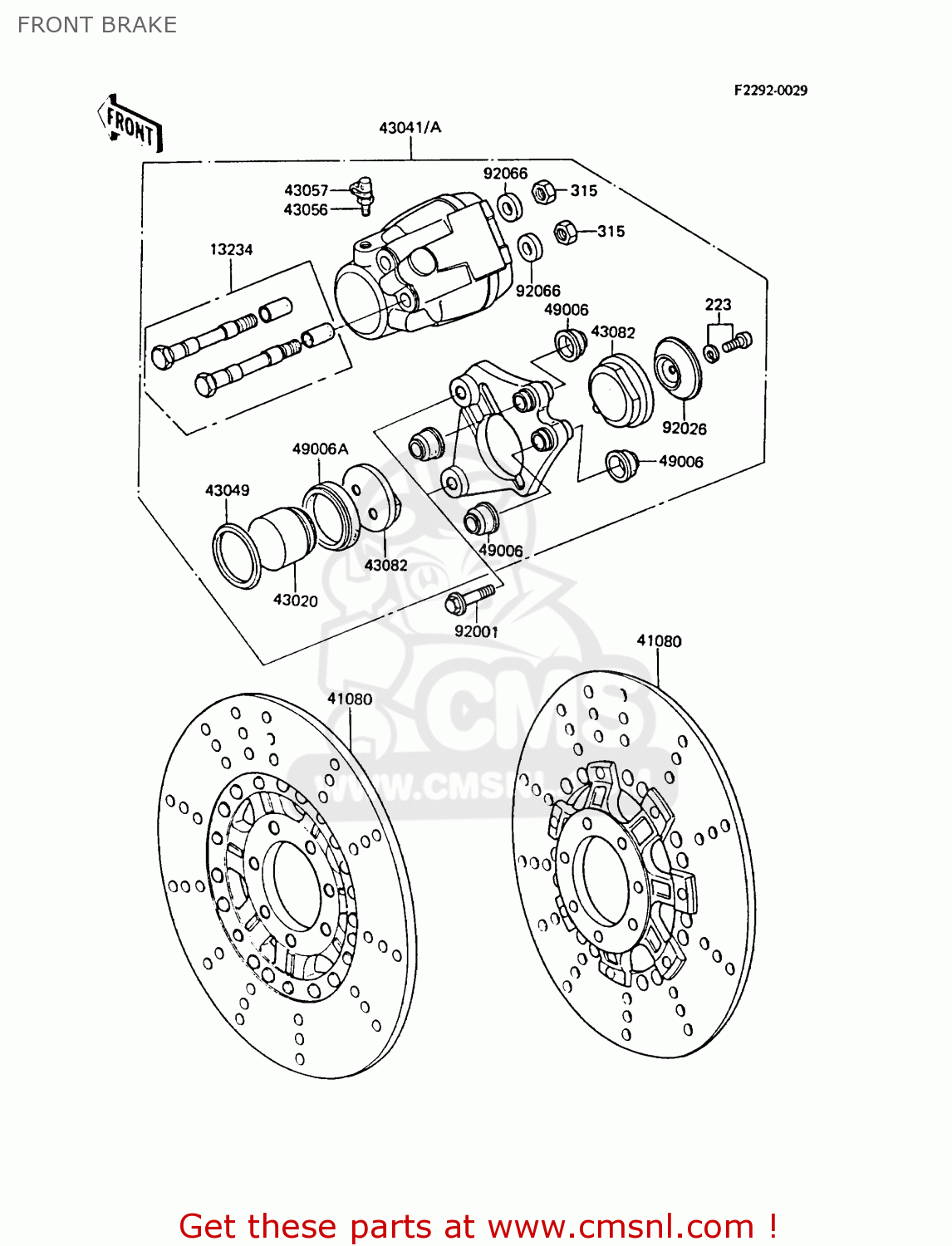

Front brake diagram ZG1300A1 Z1300 1984 EUROPE UK FR FG IT NR SD

prices are in EUR

ref

part #

description

quantity

223

223B0612
ref: 223

SCREW-PAN-WS-CROS

€ 0.50

315

315B1000
ref: 315

NUT,10MM

€ 0.50

13234

132341002
ref: 13234

SHAFT-COMP,CALIPER

€ 38.50

41080

410801123
ref: 41080

DISC,FR,SILVER

€ 408.00

43020

430201012
ref: 43020

PISTON-COMP-BRAKE

€ 65.50

43041

430411156
ref: 43041

CALIPER-ASSY,FR,LH

€ 441.00

43041A

430411157
ref: 43041A

CALIPER-ASSY,FR,RH

€ 441.00

43049

43049002A
ref: 43049

PISTON SEAL RING

€ 9.00

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43057

43057003
ref: 43057

CAP-BREATHER

€ 3.00

43082

430821058
ref: 43082

PAD-ASSY-BRAKE (MCA)

€ 35.50

49006

43052005
ref: 49006

BOOT,SHAFT

€ 7.50

49006A

43054003
ref: 49006A

BOOT,PISTON

€ 10.00

92001

920011299
ref: 92001

BOLT,HEX HEAD,10X44

€ 3.50

92026

43040004
ref: 92026

SPACER

€ 8.00

92066

43088002
ref: 92066

PLUG

€ 6.50
