TAILLIGHT(S)

ZG1300A1 Z1300 1984 EUROPE UK FR FG IT NR SD

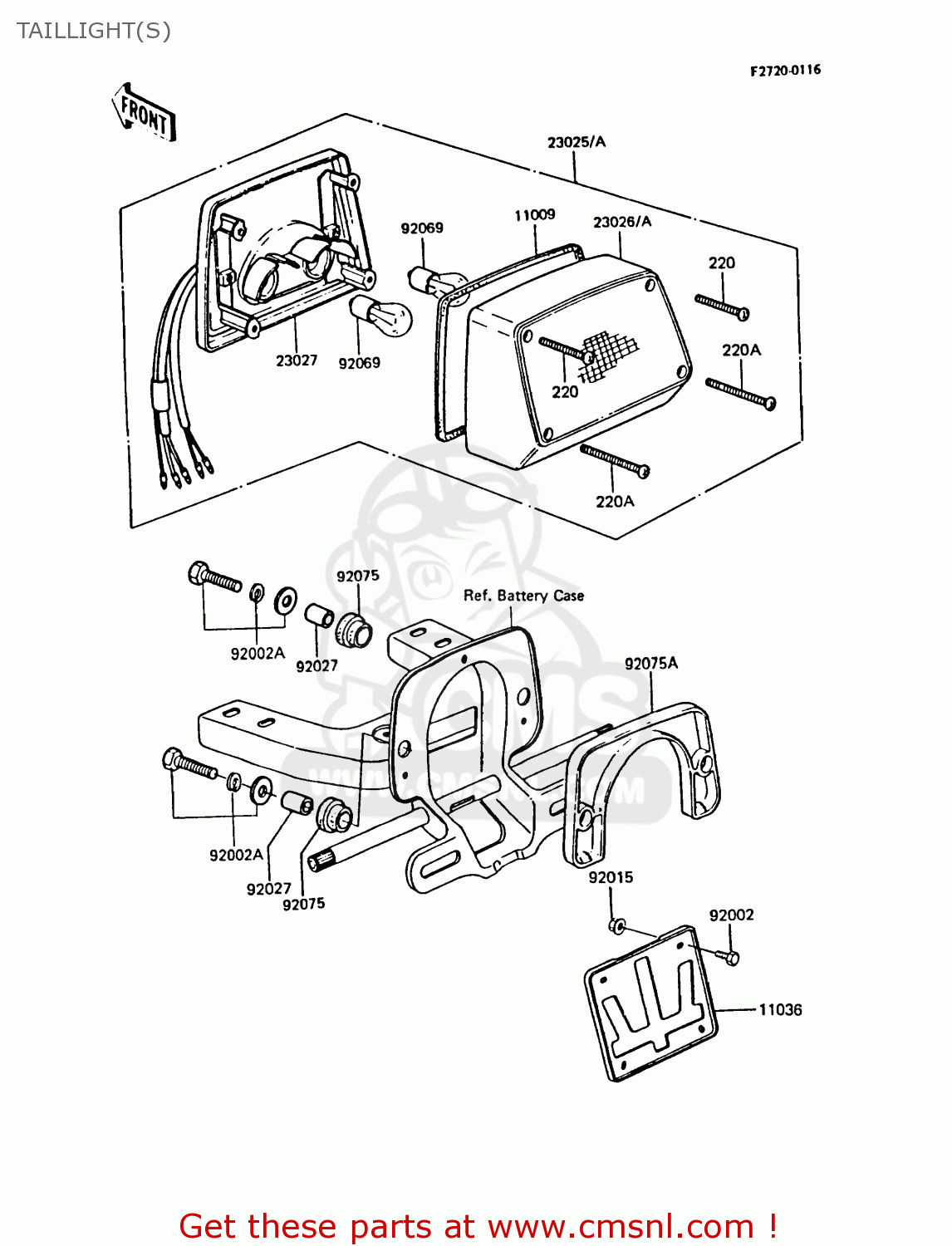

Taillight(s) diagram ZG1300A1 Z1300 1984 EUROPE UK FR FG IT NR SD

prices are in EUR

ref

part #

description

quantity

220

220B0445
ref: 220

SCREW-PAN-CROS

€ 2.50

220A

220B0460
ref: 220A

SCREW-PAN-CROS

€ 2.50

11009

110091098
ref: 11009

GASKET,TAIL LAMP LENS (NAS)

€ 6.50

11036

110361820
ref: 11036
IT

BRACKET-A,LICENSE PLA

€ 13.50

23025

230251011
ref: 23025
FG

LAMP ASSY,TAIL,GMN

€ 206.00

23025A

230251156
ref: 23025A
EUFRITNRSDUK

LAMP-TAIL

€ 206.00

23026

230261008
ref: 23026
FG

LENS,TAIL LAMP

€ 98.50

23026A

230261085
ref: 23026A
EUFRITNRSDUK

LENS,TAIL LAMP

€ 98.50

23027

230271005
ref: 23027

BODY-COMP-TAIL LAMP

€ 109.00

92002

920021132
ref: 92002
IT

BOLT,6X12

€ 2.50

92002A

920021137
ref: 92002A

BOLT,6X25

€ 2.50

92015

920151367
ref: 92015
IT

NUT,FLANGED,6MM

€ 0.50

92027

92027156
ref: 92027

COLLAR-BATTERY CASE

€ 3.00

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92075

920751092
ref: 92075

DAMPER

€ 7.50

92075A

920751111
ref: 92075A

DAMPER,TAIL LAMP

€ 15.50

TAILLIGHT(S)

all assemblies
