WATER PUMP

ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA

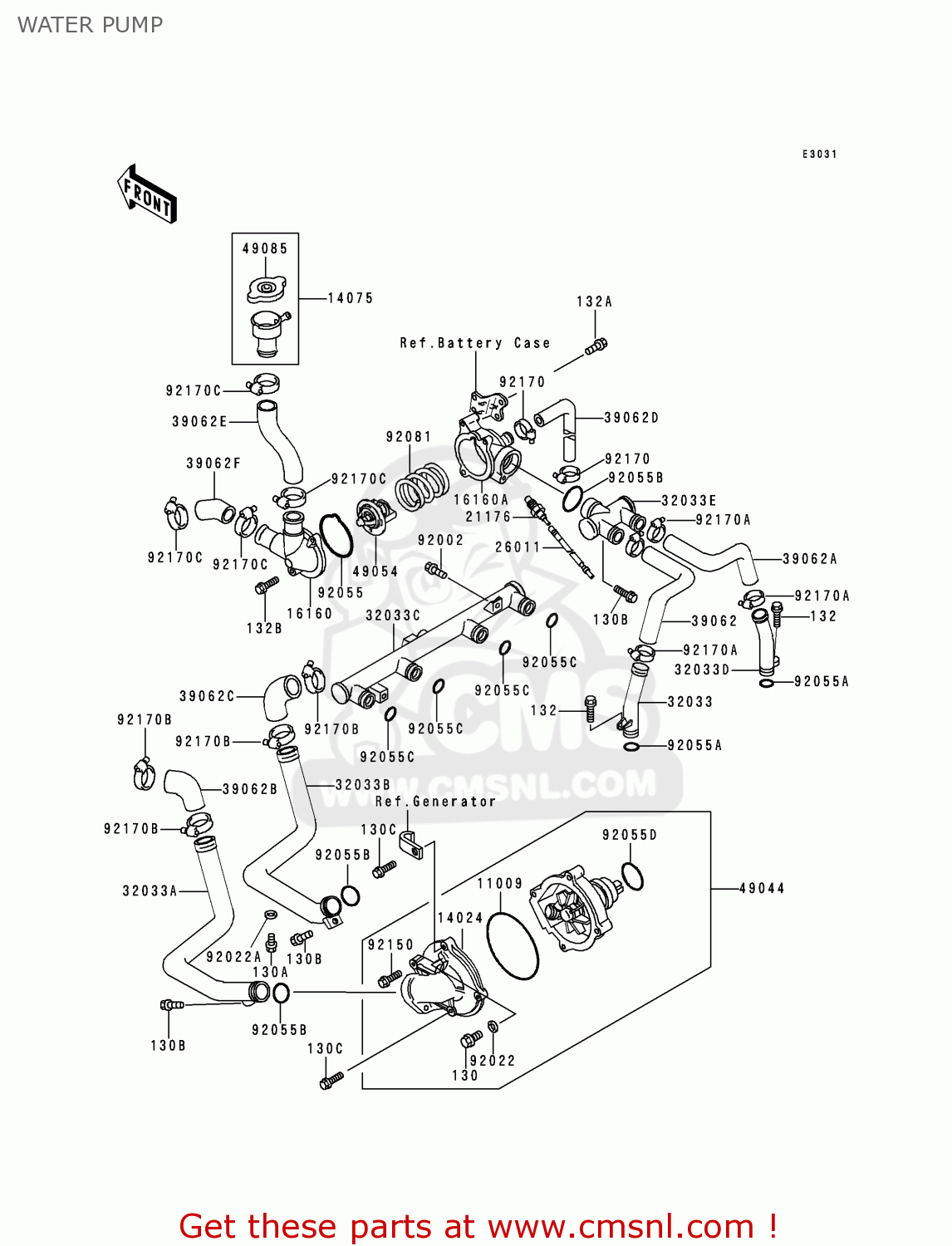

Water pump diagram ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA

WATER PUMP ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA
WATER PUMP ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA
WATER PUMP ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130A
130N0610
ref: 130A
BOLT,FLANGED,6X10
€ 2.50
130B
130N0612
ref: 130B
BOLT-FLANGED,6X12
130N0612
€ 2.50
11009
110091621
ref: 11009
GASKET,WATER PUMP (NAS)
110091621
€ 6.00
14024
140241348
ref: 14024
WATER PUMP COVER
€ 45.00
14075
140751083
ref: 14075
RADIATOR CAP ASSEMBLY
€ 83.50
16160
161601103
ref: 16160
THERMOSTAT BODY,UPPER
€ 30.50
16160A
161601104
ref: 16160A
THERMOSTAT BODY,LOWER
€ 37.50
21176
211761054
ref: 21176
SENSOR,WATER
211761054
€ 49.50
26011
260111364
ref: 26011
SENSOR WIRE LEAD
€ 5.50
32033
320331933
ref: 32033
PIPE HEAD,LH
320331933
€ 18.00
32033A
320331934
ref: 32033A
PIPE,HOSE-PUMP
€ 29.00
32033B
320331935
ref: 32033B
PUMP-HOSE PIPE
€ 31.50
32033C
320331936
ref: 32033C
PIPE,CYLINDER
€ 130.00
32033D
320331968
ref: 32033D
PIPE HEAD,RH
320331968
€ 18.00
32033E
320331990
ref: 32033E
THERMOSTAT PIPE
€ 50.00
39062
390621149
ref: 39062
HOSE-COOLING,LH
390621149
€ 20.50
39062A
390621150
ref: 39062A
HOSE-COOLING,RH
390621150
€ 24.50
39062B
390621151
ref: 39062B
HOSE-COOLING,RADIATOR
390621151
€ 12.00
39062C
390621152
ref: 39062C
HOSE-COOLING,PIPE-PIP
390621152
€ 14.50
39062D
390621153
ref: 39062D
HOSE-COOLING,BY-PASS
€ 31.50
39062E
390621154
ref: 39062E
HOSE-COOLING,THERMO-C
€ 16.00
39062F
390621174
ref: 39062F
HOSE-COOLING,THERMO-R
390621174
€ 10.00
49044
490441056
ref: 49044
PUMP-WATER
€ 264.50
49054
490541001
ref: 49054
THERMOSTAT
490541001
€ 44.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
490851066
€ 23.50
92002
920021350
ref: 92002
BOLT
920021350
€ 2.50
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
92022304
€ 2.50
92055
920551324
ref: 92055
RING-O,THERMOSTAT
920551324
€ 5.00
92055A
920551325
ref: 92055A
RING-O,18.8X2.4
920551325
€ 2.50
92055B
920551328
ref: 92055B
RING-O,27.6X3.2
920551328
€ 4.50
92055C
920551350
ref: 92055C
RING-O,18.54X2.6
920551350
€ 3.00
92055D
920551424
ref: 92055D
RING-O,33.2X2.4
920551424
€ 4.00
92081
920811104
ref: 92081
SPRING,THERMOSTAT
920811104
€ 9.50
92150
921501379
ref: 92150
BOLT
921501379
€ 3.00
92170
921701032
ref: 92170
CLAMP,COOLING HOSE
921701032
€ 16.50
92170A
921701034
ref: 92170A
CLAMP,COOLING HOSE
921701034
€ 14.00
92170B
921701036
ref: 92170B
CLAMP,COOLING HOSE
921701036
€ 16.50
92170C
921701284
ref: 92170C
CLAMP,CABLE
921701284
€ 7.50
130C
130N0645
ref: 130C
BOLT-FLANGED
€ 2.50
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
132A
132J0614
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
132B
132J0620
ref: 132B
BOLT-FLANGED-SMALL
132J0620
€ 2.00
