Genuine ZG Kawasaki Parts delivered quickly!


COWLING LOWERS

ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA

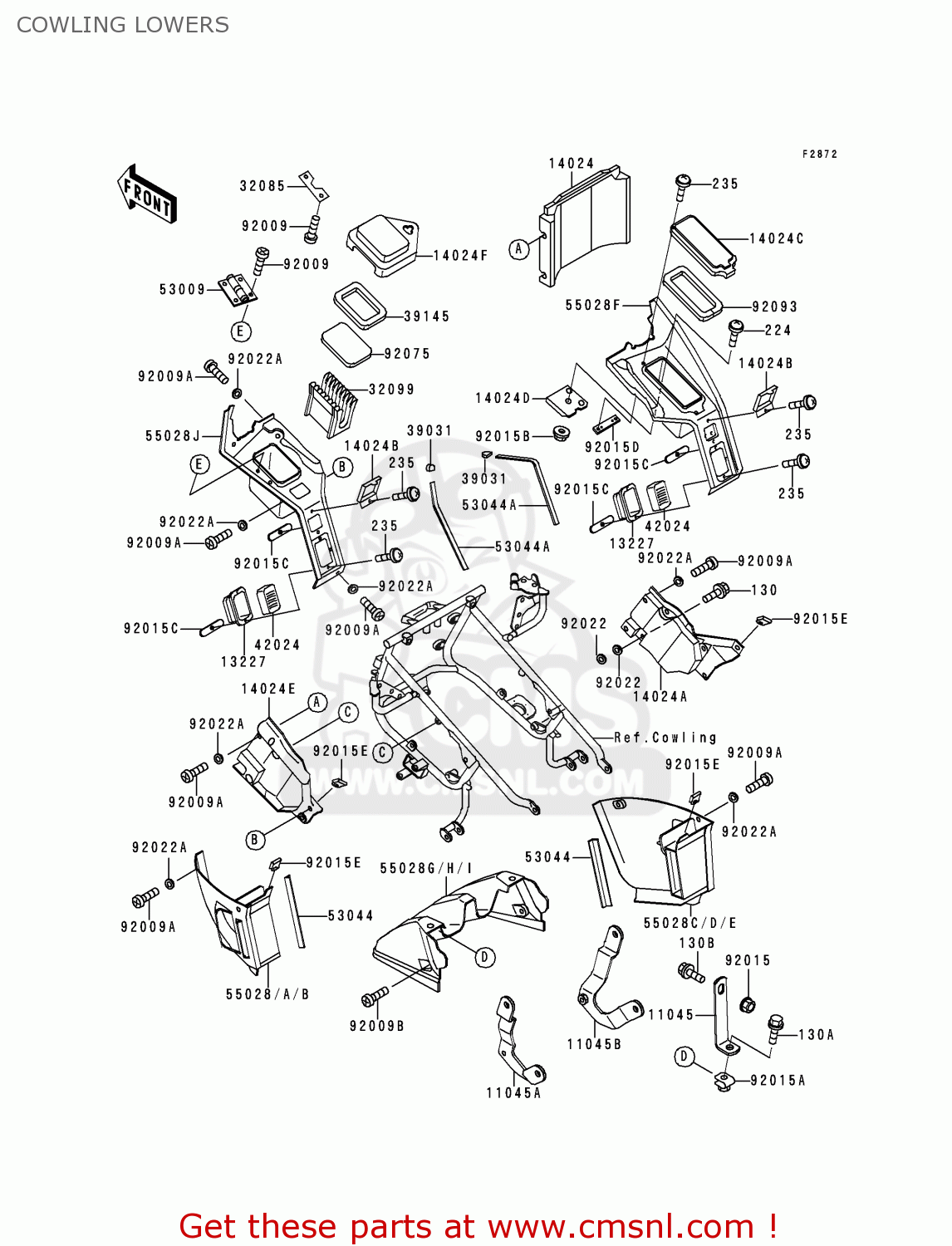

Cowling lowers diagram ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA

COWLING LOWERS ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA
COWLING LOWERS ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA
COWLING LOWERS ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11045
110451410
ref: 11045
COWLING BRACKET,LOWER
€ 5.50
11045A
110451934
ref: 11045A
COWLING BRACKET,LOWER
€ 10.00
11045B
110451935
ref: 11045B
COWLING BRACKET,LOWER
€ 11.50
13227
132271012
ref: 13227
HOUSING, SHUTTER
€ 8.00
14024
140241183
ref: 14024
COWLING COVER,FRONT,INNER
€ 92.00
14024A
140241185
ref: 14024A
CVR,COWL INNER RH
€ 100.50
14024B
140241191
ref: 14024B
COVER,TRANSCEIVER
140241191
€ 17.00
14024C
140241200
ref: 14024C
COVER,FAIRING POCKET,
€ 69.00
14024D
140241304
ref: 14024D
COVER,AMPLIFIER
€ 9.50
14024E
140241478
ref: 14024E
COVER,COWLING, INNER,
€ 100.50
14024F
140241480
ref: 14024F
COVER,FAIRING POCKET,
€ 106.00
32085
320851271
ref: 32085
FAIRING POCKET STOPPER
€ 6.00
32099
320991103
ref: 32099
CASE,CASSETTE
€ 28.50
39031
390311058
ref: 39031
END CAP
390311058
€ 2.50
39145
391451085
ref: 39145
TRIM-SEAL,FAIRING POC
€ 4.50
42024
420241002
ref: 42024
SHUTTER,LOUVER
420241002
€ 15.00
53009
530091062
ref: 53009
HINGE,SIDE BAG
530091062
€ 21.50
53044
530441159
ref: 53044
TRIM,COWLING,LWR
€ 16.50
53044A
530441161
ref: 53044A
TRIM,L=350
530441161
€ 17.50
55028
550281106HR
ref: 55028
COWLING,LWR,LH,C,C,RE
€ 496.00
55028C
550281107HR
ref: 55028C
COWLING,LWR,RH,C,C,RE
€ 496.00
55028F
550281109
ref: 55028F
COWLING,INNER,RH
€ 173.00
55028G
550281169HR
ref: 55028G
COWLING,LWR,C,C,RED
550281169HR
€ 382.50
55028J
550281170
ref: 55028J
COWLING,INNER,LH
550281170
€ 112.50
92009
920091040
ref: 92009
SCREW,TAPPING,4X10
920091040
€ 2.50
92009A
920091655
ref: 92009A
SCREW, 5X18 BLACK
920091655
€ 2.50
92009B
920091663
ref: 92009B
SCREW
920091663
€ 2.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151217
ref: 92015A
NUT,6MM,BLACK
920151217
€ 4.00
92015B
920151259
ref: 92015B
NUT,FLANGED,5MM
920151259
€ 2.50
92015C
920151598
ref: 92015C
NUT,4MM
920151598
€ 2.50
92015D
920151599
ref: 92015D
NUT,BRACKET,4MM
€ 5.50
92015E
920151710
ref: 92015E
NUT
920151710
€ 4.00
92022
92022104
ref: 92022
WASHER-SPEEDMETR FIT
92022104
€ 2.50
130
130B0530
ref: 130
BOLT-FLANGED,5X30
€ 1.00
130A
130C0616
ref: 130A
BOLT-FLANGED,6X16
€ 1.50
130B
130C0835
ref: 130B
BOLT-FLANGED
€ 2.50
224
224B0514
ref: 224
SCREW-PAN-WP-CROS
224B0514
€ 2.50
235
235C0412
ref: 235
SCREW-PAN-WP-CROS
235C0412
€ 1.50
92022A
920221521
ref: 92022A
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92075
920751961
ref: 92075
DAMPER,FAIRING POCKET
€ 7.00
92093
920931211
ref: 92093
SEAL,FAIRING POCKET
€ 5.00
