IGNITION SWITCH/LOCKS/REFLECTORS

ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA

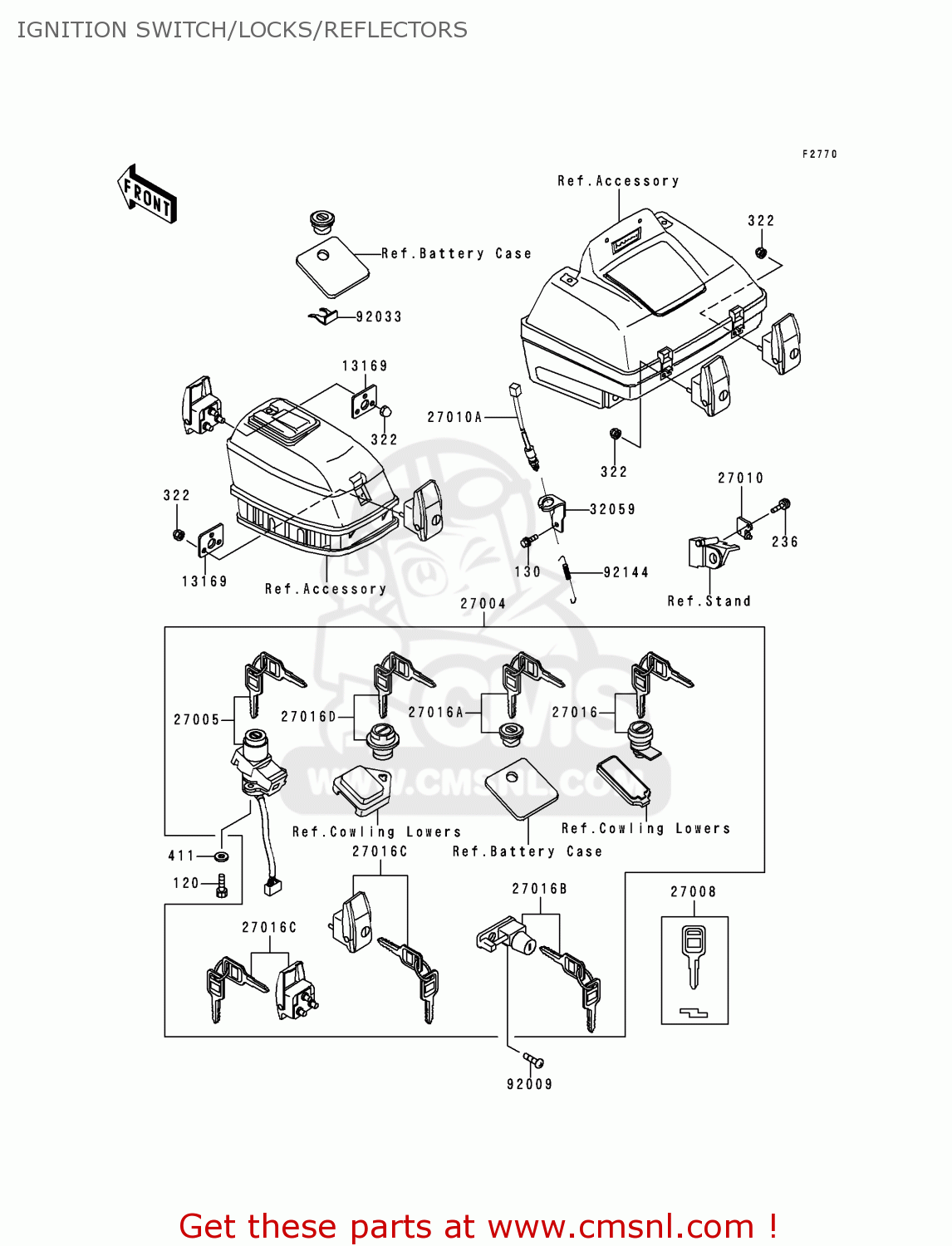

Ignition switch/locks/reflectors diagram ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120T0616
ref: 120

BOLT-SOCKET

€ 1.50

130

130D0610
ref: 130

BOLT-FLANGED

€ 0.50

236

236B0416
ref: 236

SCREW-PAN-WSP-CROS

€ 2.50

322

322C0400
ref: 322

NUT-CAP,4MM

€ 2.00

411

411E0600
ref: 411

W-PLAIN-S

€ 0.50

13169

131691641
ref: 13169

BAG PLATE

€ 4.00

27004

270045318
ref: 27004

SWITCH ASSEMBLY

€ 546.00

27005

270055063
ref: 27005

SWITH-ASSY-IGNITION

€ 225.00

27008

270081103
ref: 27008

KEY-LOCK,BLANK

€ 13.50

27010

270101185
ref: 27010

SWITCH,BRAKE/SIDE STA

€ 25.50

27010A

270101200
ref: 27010A

SWITCH,REAR BRAKE

€ 23.50

27016

270165105
ref: 27016

LOCK ASSEMBLY

€ 88.50

27016A

270165106
ref: 27016A

LOCK-ASSY,TANK CAP CO

€ 43.50

27016B

270165107
ref: 27016B

LOCK-ASSY,HELMET

€ 56.50

27016C

270165108
ref: 27016C

LOCK-ASSY, BAG

€ 147.00

27016D

270165128
ref: 27016D

LOCK-ASSY,FAIRING POC

€ 88.50

32059

320591068
ref: 32059

SWITCH BRACKET,B,REAR

€ 4.50

92009

920091401
ref: 92009

SCREW

€ 2.50

92033

920331095
ref: 92033

RING-SNAP,COWLING POC

€ 4.50

92144

921441015
ref: 92144

SPRING REAR BRAKE

€ 3.50
