CLUTCH MASTER CYLINDER

ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA

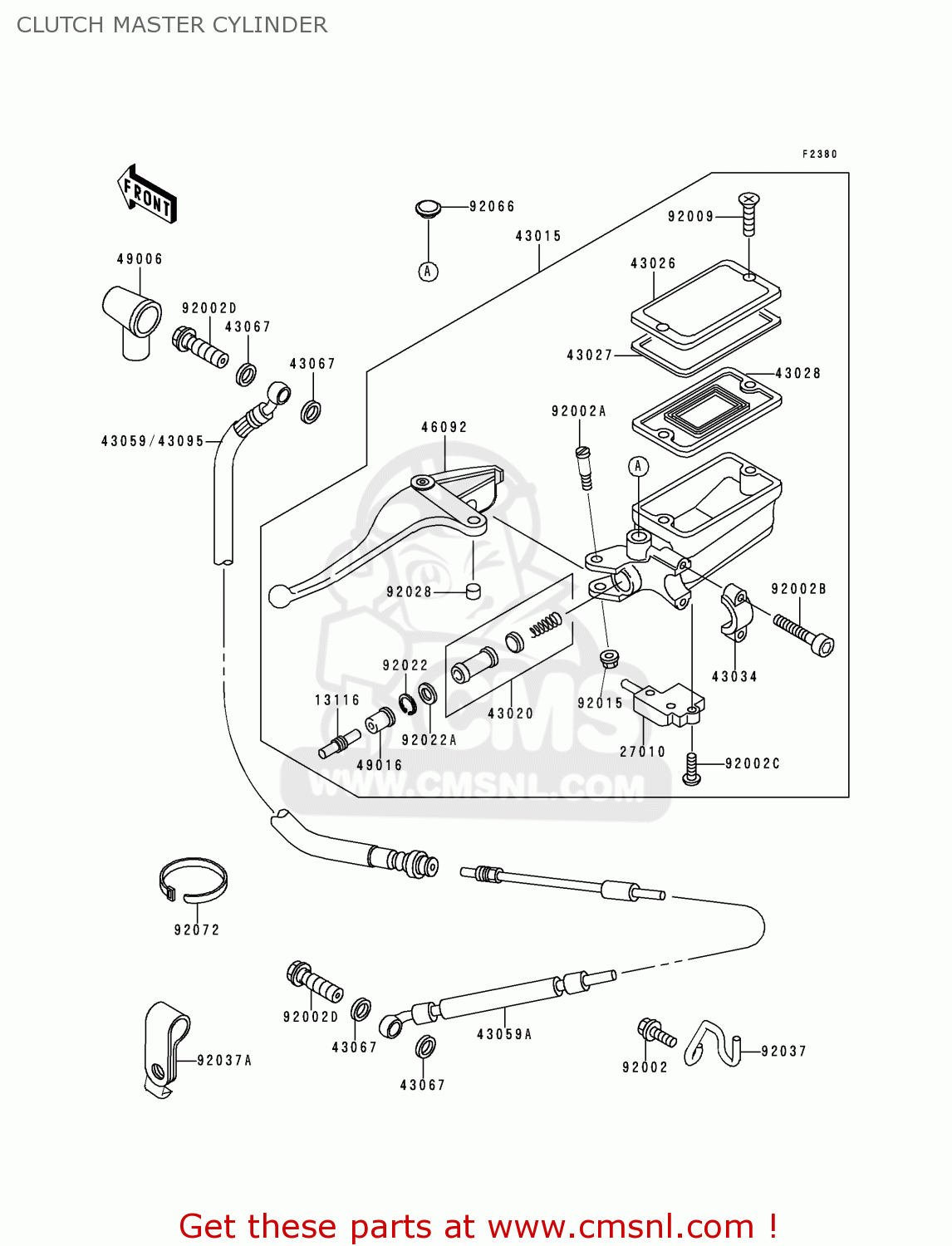

Clutch master cylinder diagram ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA

CLUTCH MASTER CYLINDER ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA
CLUTCH MASTER CYLINDER ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA
CLUTCH MASTER CYLINDER ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13116
131161110
ref: 13116
ROD-PUSH,MASTER CYLIN
131161110
€ 24.00
27010
270101406
ref: 27010
SWITCH,CLUTCH
270101406
€ 25.00
43015
430151507
ref: 43015
CYLINDER-ASSY-MASTER,
430151507
€ 318.00
43020
430201055
ref: 43020
PISTON-COMP-BRAKE,CLU
430201055
€ 47.50
43026
430261076
ref: 43026
CAP-BRAKE
430261076
€ 31.00
43027
430271055
ref: 43027
PLATE-DIAPHRAGM
430271055
€ 5.50
43028
430281058
ref: 43028
DIAPHRAGM,MASTER CYLI
430281058
€ 15.50
43034
430341054
ref: 43034
HOLDER-BRAKE,MASTER C
430341054
€ 26.00
43059
430591329
ref: 43059
BRAKE & CLUTCH HOSE
€ 62.00
43059A
430591330
ref: 43059A
BRAKE & CLUTCH HOSE
€ 81.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
46092
460921130
ref: 46092
LEVER-GRIP,CLUTCH
460921130
€ 14.50
49006
490061040
ref: 49006
BOOT,DUST
490061040
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
92002
920021133
ref: 92002
BOLT,6X14
€ 0.50
92002A
920021322
ref: 92002A
BOLT,LEVER SET
920021322
€ 8.00
92002B
920021324
ref: 92002B
BOLT,SOCKET,6X20
920021324
€ 5.00
92002C
920021325
ref: 92002C
BOLT
920021325
€ 4.00
92002D
920021888
ref: 92002D
BOLT,OIL,L=23
920021888
€ 3.50
92009
920091458
ref: 92009
SCREW,4MM
920091458
€ 2.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
920151233
€ 3.50
92022
920221605
ref: 92022
WASHER,PISTON
920221605
€ 3.00
92022A
920221606
ref: 92022A
WASHER,PISTON
920221606
€ 3.00
92028
920281310
ref: 92028
BUSHING,MASTER CYLIND
920281310
€ 10.00
92037
920371789
ref: 92037
CLAMP
€ 4.00
92037A
920371944
ref: 92037A
HOSE CLAMP
€ 5.50
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
920661077
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
