STARTER MOTOR

ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA

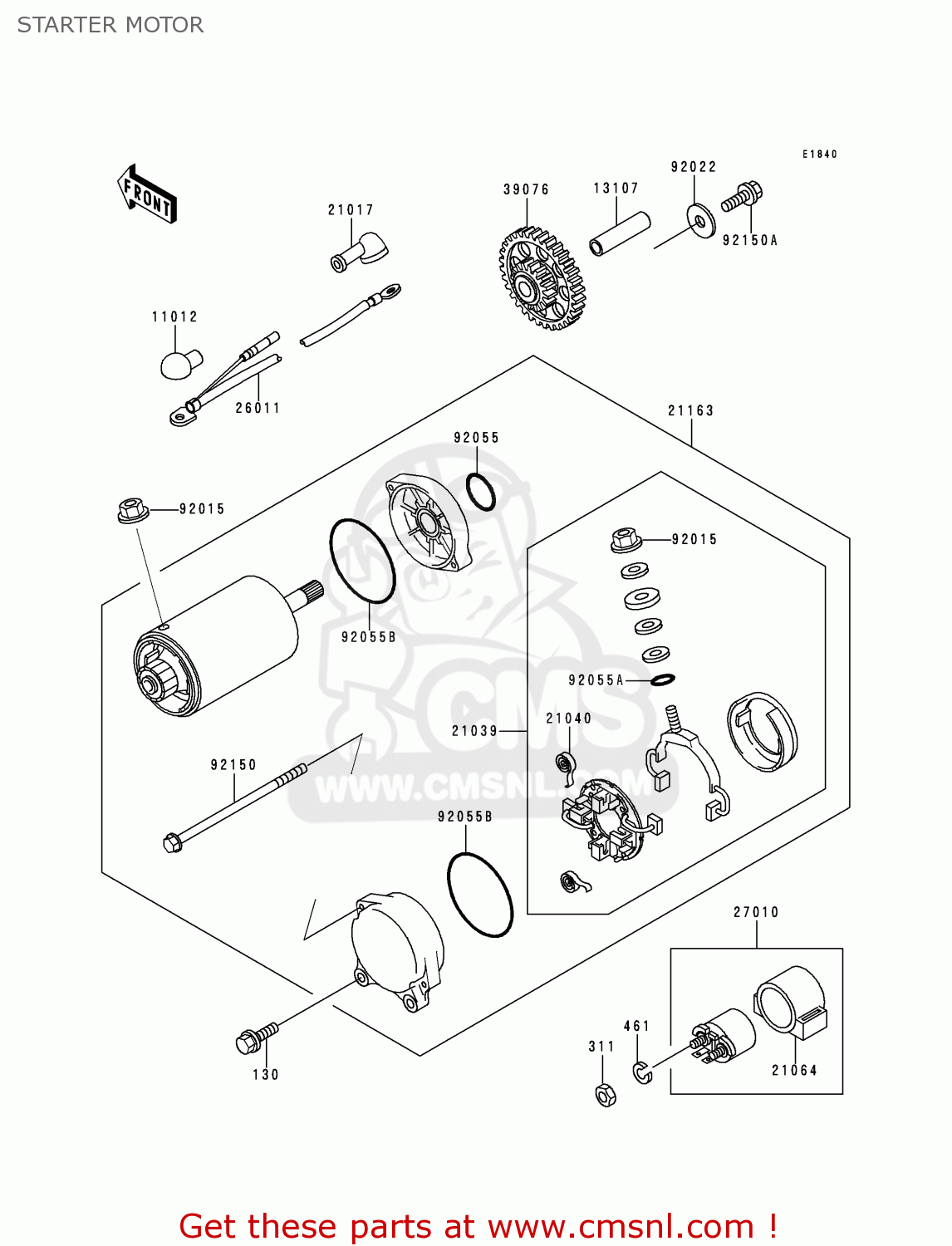

Starter motor diagram ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA

STARTER MOTOR ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA
STARTER MOTOR ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA
STARTER MOTOR ZG1200B11 VOYAGER XII 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130G0625
ref: 130
BOLT,FLANGED,6X25
130G0625
€ 0.50
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
11012
110121354
ref: 11012
CAP,TERMINAL
110121354
€ 7.00
13107
131071106
ref: 13107
SHAFT,IDLE GEAR
131071106
€ 11.50
21017
21017017
ref: 21017
GROMMET-CORD
21017017
€ 6.50
21039
210391060
ref: 21039
BRUSH,CARBON
210391060
€ 74.00
21040
210401055
ref: 21040
SPRING-BRUSH
210401055
€ 5.50
21064
21064002
ref: 21064
DAMPER,MAGNETIC SWITC
21064002
€ 13.50
21163
211631196
ref: 21163
STARTER-ELECTRIC
€ 611.50
26011
260111369
ref: 26011
STARTER MOTOR WIRE LEAD
€ 33.50
27010
270101209
ref: 27010
SWITCH,MAGNETIC
270101209
€ 110.50
39076
390761067
ref: 39076
LIMITER,STARTER IDLE
390761067
€ 93.50
92015
920151476
ref: 92015
NUT,6MM
920151476
€ 2.50
92022
920221517
ref: 92022
WASHER,6X19.5X2
920221517
€ 1.50
92055
920551276
ref: 92055
RING-O
920551276
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
920551370
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
920551381
€ 6.50
92150
921501572
ref: 92150
BOLT,STARTER MOTOR
€ 6.50
92150A
921501826
ref: 92150A
BOLT,6X12
921501826
€ 2.50
