Genuine ZG Kawasaki Parts delivered quickly!


MUFFLER(S)

ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA

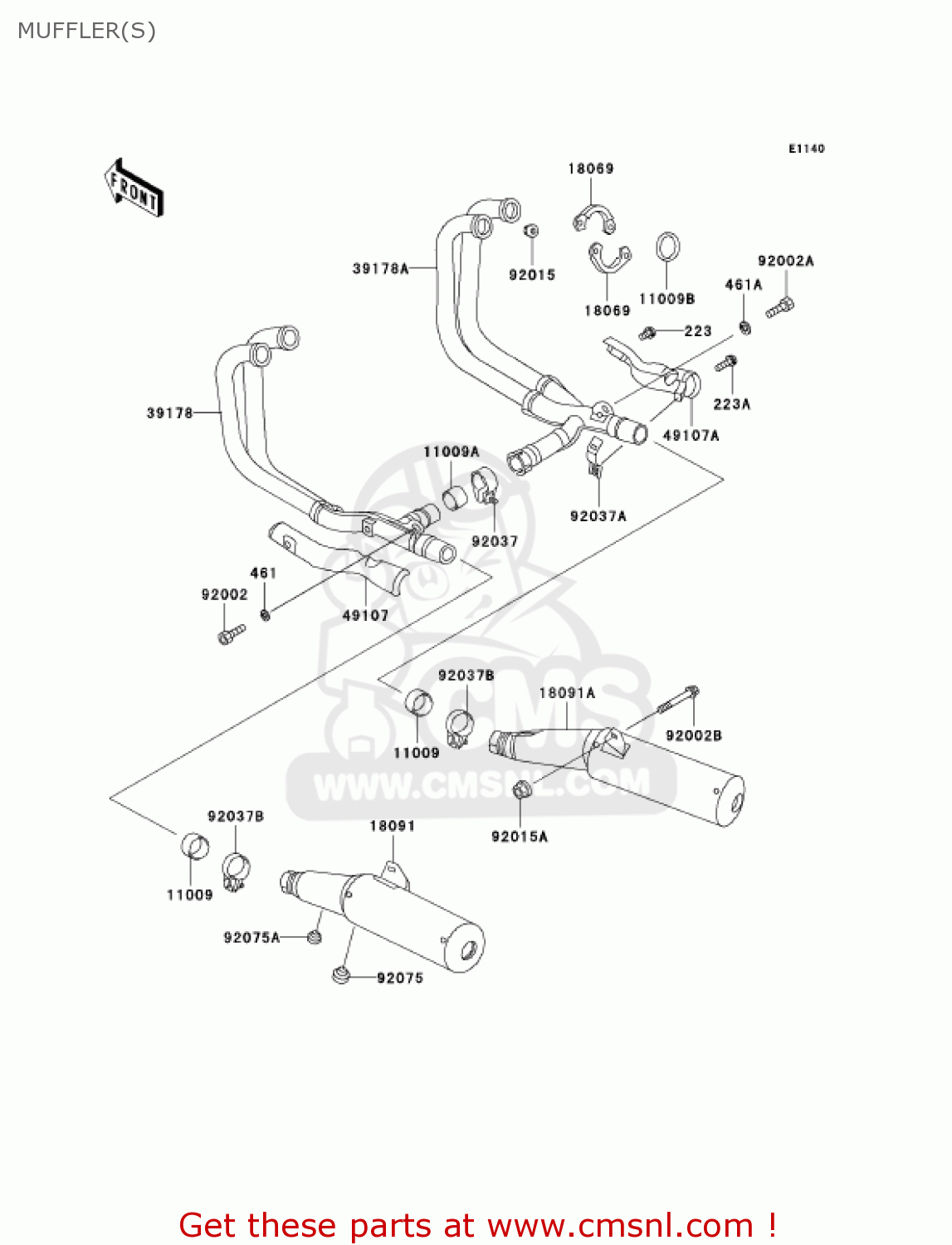

Muffler(s) diagram ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA

MUFFLER(S) ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA
MUFFLER(S) ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA
MUFFLER(S) ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
223
223C0612
ref: 223
SCREW-PAN-WS-CROS
223C0612
€ 2.00
223A
223C0620
ref: 223A
SCREW-PAN-WS-CROS
223C0620
€ 2.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
461F0800
€ 0.50
461A
461K1000
ref: 461A
461K1000
11009
110091666
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
110091666
€ 20.50
11009A
110091668
ref: 11009A
GASKET,EXHAUST MANIFO (NAS)
110091668
€ 20.00
11009B
110091840
ref: 11009B
GASKET,EXHAUST PIPE H (NAS)
110091840
€ 7.00
18069
180691122
ref: 18069
HOLDER-EXHAUST PIPE
180691122
€ 16.50
18091
180910206
ref: 18091
BODY-COMP-MUFFLER,LH
€ 484.00
18091A
180910207
ref: 18091A
BODY-COMP-MUFFLER,RH
€ 484.00
39178
391781105
ref: 39178
MANIFOLD-COMP-EXHAUST
391781105
€ 402.50
39178A
391781106
ref: 39178A
MANIFOLD-COMP-EXHAUST
€ 454.50
49107
491071053
ref: 49107
COVER-EXHAUST PIPE,LH
491071053
€ 73.00
49107A
491071058
ref: 49107A
COVER-EXHAUST PIPE,RH
491071058
€ 73.00
92002
920021477
ref: 92002
BOLT,SOCKET,8X20
920021477
€ 4.00
92002A
920021683
ref: 92002A
BOLT,SOCKET,10X25
920021683
€ 6.00
92002B
920021817
ref: 92002B
BOLT
920021817
€ 4.50
92015
920151380
ref: 92015
NUT,LOCK,8MM
920151380
€ 3.00
92015A
920151387
ref: 92015A
NUT,FLANGED,10MM
920151387
€ 2.50
92037
920371270
ref: 92037
CLAMP,MUFFLER,BLACK
920371270
€ 13.50
92037A
920371506
ref: 92037A
CLAMP,EXHAUST PIPE CO
920371506
€ 10.50
92037B
920371537
ref: 92037B
CLAMP,POWER CHAMBER
920371537
€ 14.50
92075
920751002
ref: 92075
DAMPER RUBBER,MAIN ST
920751002
€ 4.00
92075A
92075281
ref: 92075A
DAMPER,9X24X14
92075281
€ 4.00
