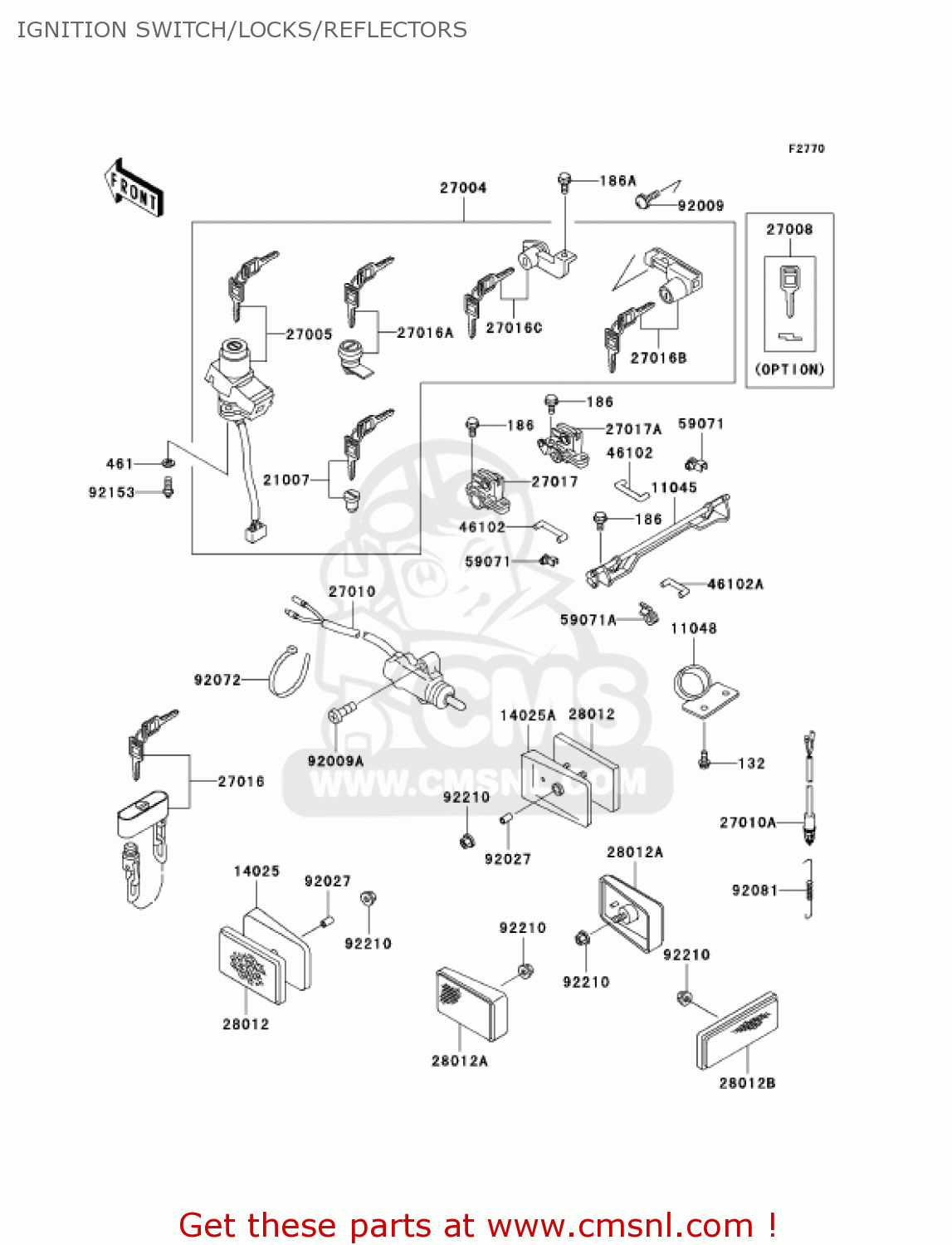

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

132

132J0612
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

186

186C0614
ref: 186

BOLT-UPSET-WP

€ 2.50

186A

186C0616
ref: 186A

BOLT-UPSET-WP

€ 2.50

461

461L0600
ref: 461

WASHER-SPRING

€ 0.50

11045

110451544
ref: 11045

BRACKET,SEAT LOCK

€ 26.00

11048

110481451
ref: 11048

BRACKET,IGNITION GUAR

€ 22.00

14025

140251886
ref: 14025

COVER,REFLECTOR,FR

€ 9.50

14025A

140251887
ref: 14025A

COVER,REFLECTOR,FR

€ 9.50

21007

210075037
ref: 21007

ROTOR,LOCK,TANK CAP

€ 65.50

27004

270045474
ref: 27004

SWITCH ASSEMBLY

€ 250.00

27005

270055101
ref: 27005

SWITCH-ASSY-IGNITION

€ 246.00

27008

270081173
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 13.00

27010

270101220
ref: 27010

SWITCH,SIDE STAND

€ 60.00

27010A

270101474
ref: 27010A

SWITCH,REAR BRAKE

€ 23.00

27016

270161051
ref: 27016

LOCK-ASSY,WHEEL

€ 104.50

27016A

270165204
ref: 27016A

LOCK-ASSY,TOOL BOX

€ 48.00

27016B

270165211
ref: 27016B

LOCK-ASSY,HELMET

€ 56.50

27016C

270165221
ref: 27016C

LOCK-ASSY,SEAT

€ 56.50

27017

270171112
ref: 27017

LOCK,SEAT,LH

€ 61.50

27017A

270171113
ref: 27017A

LOCK,SEAT,RH

€ 61.50

28012

280121052
ref: 28012

REFLECTOR-REFLEX,FR

€ 17.50

28012A

280121056
ref: 28012A

REFLECTOR,REAR,REFLEX

€ 13.50

28012B

280121088
ref: 28012B

REFLECTOR-REFLEX

€ 15.00

46102

461021187
ref: 46102

ROD,SEAT LOCK,FR

€ 5.50

46102A

461021188
ref: 46102A

ROD,SEAT LOCK,RR

€ 2.50

59071

590711103
ref: 59071

JOINT

€ 5.50

59071A

590711125
ref: 59071A

JOINT

€ 5.00

92009

920091401
ref: 92009

SCREW

€ 2.50

92009A

920091459
ref: 92009A

SCREW

€ 2.50

92027

920271789
ref: 92027

COLLAR,5X8X14.5

€ 3.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92081

920811990
ref: 92081

SPRING,BRAKE LAMP SWI

€ 4.00

92153

921530967
ref: 92153

BOLT,TORX,6X16

€ 1.50

92210

922100007
ref: 92210

NUT,FLANGED,5MM

€ 2.00

all assemblies
