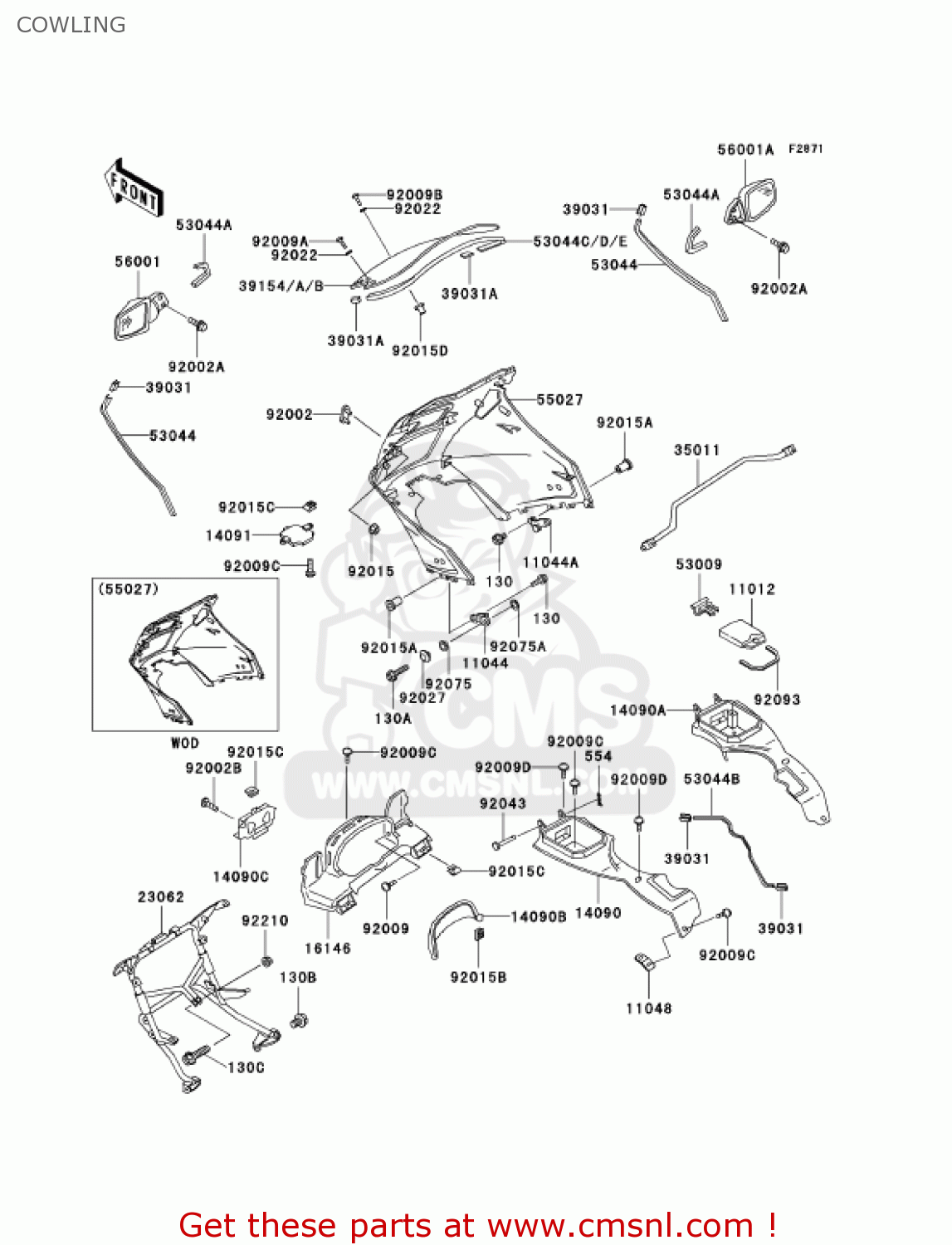

COWLING

ref

part #

description

quantity

11012

110121878
ref: 11012

CAP,INNER COWLING COV

€ 46.00

11044

110441907
ref: 11044

BRACKET,UPPER COWLING

€ 7.00

11044A

110441908
ref: 11044A

BRACKET,UPPER COWLING

€ 7.00

11048

110481490
ref: 11048

BRACKET,INNER COWLING

€ 7.00

14090

140901424
ref: 14090

COVER,INNER COWLING,L

€ 86.00

14090A

140901425
ref: 14090A

COVER,INNER COWLING,R

€ 81.50

14090B

140901456
ref: 14090B

COVER,METER VISER

€ 82.00

14090C

140901481
ref: 14090C

COVER,INNER COWLING,C

€ 74.50

14091

140911057TK
ref: 14091

COVER,UPPER COWLING,L

€ 26.00

16146

161461158
ref: 16146

COVER-ASSY,INNER COWL

€ 110.00

23062

230621100
ref: 23062

BRACKET-COMP,UPP COWL

€ 323.00

35011

350111340
ref: 35011

STAY,SIDE COWLING

€ 66.00

39031

390311055
ref: 39031

CAP-END,TRIM

€ 3.50

39031A

390311063
ref: 39031A

CAP-END,TRIM

€ 2.00

39154

391541094
ref: 39154
(OPTION)

WINDSHIELD,SHORT TYPE

€ 523.00

39154A

391541095
ref: 39154A

WINDSHIELD,LONG TYPE

€ 458.50

39154B

391541096
ref: 39154B
(OPTION)

WINDSHIELD,SUPER LONG

€ 481.50

53009

530091086
ref: 53009

HINGE,INNER COVER

€ 7.50

53044

530441157
ref: 53044

TRIM,COWLING

€ 18.50

53044A

530441173
ref: 53044A

TRIM,MIRROR

€ 5.50

53044B

530441184
ref: 53044B

TRIM,INNER COWLING

€ 18.50

53044C

530441272
ref: 53044C
(OPTION)

TRIM,WINDSHIELD,SHORT

€ 20.00

53044D

530441273
ref: 53044D

TRIM,WINDSHIELD,LONG

€ 21.00

53044E

530441274
ref: 53044E
(OPTION)

TRIM,WINDSHIELD,SUPER

€ 22.50

55027

550271163TK
ref: 55027

COWLING-ASSY,UPP,OUTE

€ 510.00

56001

560011333
ref: 56001

MIRROR-ASSY,LH

€ 156.50

56001A

560011334
ref: 56001A

MIRROR-ASSY,RH

€ 156.50

92002

920021800
ref: 92002

BOLT,"U"

€ 7.00

92002A

920021852
ref: 92002A

BOLT

€ 2.50

92002B

920021884
ref: 92002B

BOLT,6X12

€ 2.50

92009

920091500
ref: 92009

SCREW,4X16

€ 2.50

92009A

920091654
ref: 92009A

SCREW

€ 0.50

92009B

920091656
ref: 92009B

SCREW

€ 2.50

92009C

920091662
ref: 92009C

SCREW

€ 2.50

92009D

920091663
ref: 92009D

SCREW

€ 2.50

92015

920151233
ref: 92015

NUT,FLANGED,6MM

€ 3.50

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 2.00

130B

130J0812
ref: 130B

BOLT-FLANGED

€ 0.50

130C

130J0830
ref: 130C

BOLT-FLANGED,8X30

€ 2.50

554

554A0400
ref: 554

PIN-SNAP

€ 1.50

92015A

920151394
ref: 92015A

NUT,STAY,6MM

€ 2.50

92015B

920151593
ref: 92015B

NUT,4MM

€ 4.50

92015C

920151602
ref: 92015C

NUT,6MM

€ 4.50

92015D

920151757A
ref: 92015D

NUT,5MM

€ 5.00

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92027

920271450
ref: 92027

COLLAR,L=13.1,BLACK

€ 4.00

92043

920431501
ref: 92043

PIN,4X70

€ 3.50

92075

92075174
ref: 92075

DAMPER,MALE

€ 3.00

92075A

92075175
ref: 92075A

DAMPER,FEMALE

€ 2.50

92093

920931368
ref: 92093

SEAL,INNER COWLING CA

€ 5.00

92210

922100004
ref: 92210

NUT,FLANGED,8MM

€ 1.00

all assemblies
