BRAKE PEDAL/TORQUE LINK

ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA

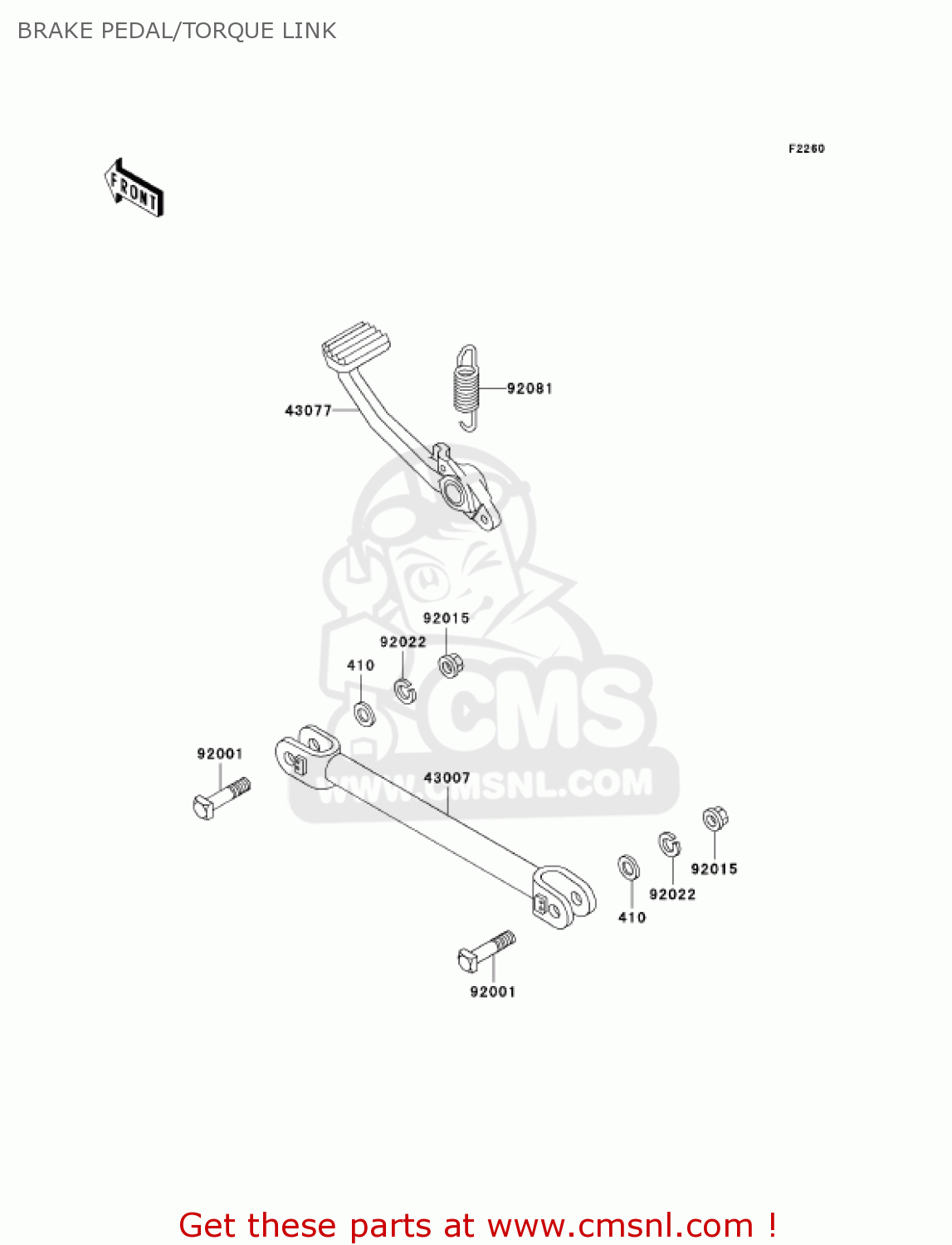

Brake pedal/torque link diagram ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

410

410B1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 0.50

43007

430071130
ref: 43007

ROD-TORQUE

€ 69.00

43077

430771062
ref: 43077

LEVER-ASSY-BRAKE,PEDA

€ 99.50

92001

920011208
ref: 92001

BOLT,TORQUE ROD,FRONT

€ 3.50

92015

920151429
ref: 92015

NUT,10MM

€ 4.50

92022

920221540
ref: 92022

WASHER,SPRING,10MM

€ 2.50

92081

920811845
ref: 92081

SPRING,BRAKE PEDAL

€ 6.50
