DRIVE SHAFT/FINAL GEAR

ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA

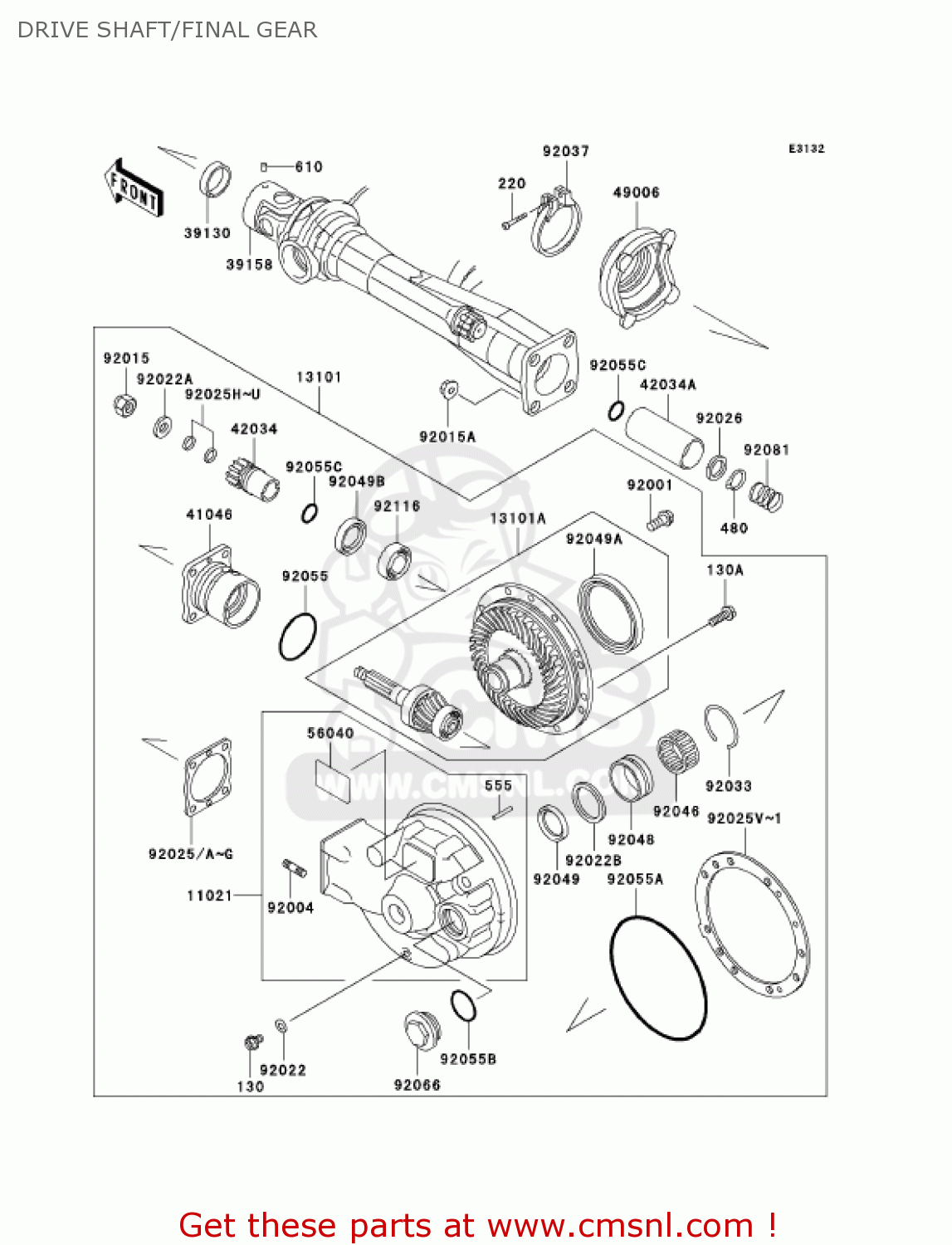

Drive shaft/final gear diagram ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA

DRIVE SHAFT/FINAL GEAR ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA
DRIVE SHAFT/FINAL GEAR ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA
DRIVE SHAFT/FINAL GEAR ZG1000A6F CONCOURS 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11021
110211063GD
ref: 11021
CASE-ASSY,FINAL BEVEL
€ 1,125.00
13101
131011099GD
ref: 13101
GEAR-ASSY,FINAL BEVEL
€ 2,364.00
13101A
131015063
ref: 13101A
GEAR-ASSY,FINAL BEVEL
€ 1,475.00
39130
391301002
ref: 39130
SPRING,LEAF
391301002
€ 3.00
39158
391581059
ref: 39158
SHAFT-ASSY-DRIVE
€ 389.50
41046
410461069
ref: 41046
HOUSING-BEARING,BLACK
€ 178.50
42034
420341079
ref: 42034
COUPLING
€ 108.00
42034A
420341178
ref: 42034A
COUPLING,DRIVE SHAFT,
€ 78.00
49006
490061188
ref: 49006
BOOT
490061188
€ 29.00
56040
560401047
ref: 56040
LABEL,HYPOID GEAR OIL
560401047
€ 4.00
92001
920011778
ref: 92001
BOLT,FLANGED,10X23
€ 3.50
92004
920041045
ref: 92004
STUD,10X30,BLACK
€ 4.50
92015
920151059
ref: 92015
NUT,16MM
920151059
€ 7.50
92015A
920151649
ref: 92015A
NUT,10MM
920151649
€ 3.50
92022
920221086
ref: 92022
WASHER,8.2X16X1
920221086
€ 2.50
92022A
920221105
ref: 92022A
WASHER,16X32X3.2
920221105
€ 7.00
92022B
920221294
ref: 92022B
WASHER,39X49.5X1
920221294
€ 4.50
92025
920251052
ref: 92025
SHIM,T=0.15
920251052
€ 9.50
92025A
920251053
ref: 92025A
SHIM,T=0.50
920251053
€ 7.00
92025B
920251054
ref: 92025B
SHIM,T=0.60
920251054
€ 7.00
92025C
920251055
ref: 92025C
SHIM,T=0.70
€ 6.50
92025D
920251056
ref: 92025D
SHIM,T=0.80
€ 6.50
92025E
920251057
ref: 92025E
SHIM,T=0.90
920251057
€ 7.00
92025F
920251058
ref: 92025F
SHIM,T=1.00
920251058
€ 6.50
92025G
920251059
ref: 92025G
SHIM,T=1.20
920251059
€ 7.00
92025H
920251214
ref: 92025H
SHIM,T=1.30
€ 6.00
92025I
920251215
ref: 92025I
SHIM,T=1.32
920251215
€ 6.50
92025J
920251216
ref: 92025J
SHIM,T=1.34
€ 6.50
92025K
920251217
ref: 92025K
SHIM,T=1.36
€ 6.50
92025L
920251218
ref: 92025L
SHIM,T=1.38
€ 6.50
92025M
920251219
ref: 92025M
SHIM,T=0.10
€ 4.00
92025N
920251220
ref: 92025N
SHIM,T=0.20
920251220
€ 4.00
92025O
920251221
ref: 92025O
SHIM,T=0.30
€ 4.00
92025P
920251222
ref: 92025P
SHIM,T=0.50
€ 4.00
92025Q
920251223
ref: 92025Q
SHIM,T=0.60
€ 5.50
92025R
920251224
ref: 92025R
SHIM,T=0.70
920251224
€ 5.50
92025S
920251225
ref: 92025S
SHIM,T=0.80
€ 5.50
92025T
920251226
ref: 92025T
SHIM,T=0.90
€ 5.50
92025U
920251227
ref: 92025U
SHIM,T=1.00
€ 5.50
92025V
920251625
ref: 92025V
SHIM,T=0.10
920251625
€ 7.50
130
130X0812
ref: 130
BOLT-FLANGED
€ 2.50
130A
130Y0825
ref: 130A
BOLT-FLANGED
130Y0825
€ 2.50
220
220B0430
ref: 220
SCREW-PAN-CROS
220B0430
€ 0.50
480
480J2600
ref: 480
CIRCLIP-TYPE-C,26MM
480J2600
€ 1.50
555
555A0428
ref: 555
PIN-SPRING
555A0428
€ 1.00
610
610A0406
ref: 610
ROLLER,4X6
610A0406
€ 2.50
920250
920251630
ref: 920250
SHIM,T=0.90
€ 14.00
920251
920251631
ref: 920251
SHIM,T=1.20
€ 14.00
92025W
920251626
ref: 92025W
SHIM,T=0.15
€ 8.00
92025X
920251627
ref: 92025X
SHIM,T=0.20
€ 7.00
92025Y
920251628
ref: 92025Y
SHIM,T=0.30
€ 7.00
92025Z
920251629
ref: 92025Z
SHIM,T=0.60
€ 14.00
92026
920261085
ref: 92026
SPACER,26.2X36X2
920261085
€ 5.00
92033
920331074
ref: 92033
RING-SNAP,52MM
920331074
€ 3.00
92037
920371112
ref: 92037
CLAMP,BOOT FITTING
920371112
€ 11.50
92046
920461057
ref: 92046
BEARING-NEEDLE,KTV384
920461057
€ 47.00
92048
920481019
ref: 92048
RACE,ORT465021E01
920481019
€ 35.00
92049
920491025
ref: 92049
OIL SEAL,S-35477HS
920491025
€ 10.00
92049A
920491026
ref: 92049A
OIL SEAL,S-901159HS
920491026
€ 28.00
92049B
920491033
ref: 92049B
OIL SEAL,SC32487
920491033
€ 12.00
92055
920551038
ref: 92055
RING-O,57.6X2.4
920551038
€ 4.50
92055A
920551165
ref: 92055A
RING-O,154X3
920551165
€ 7.50
92055B
920551281
ref: 92055B
RING-O,35.8MM
920551281
€ 4.50
92055C
920551646
ref: 92055C
RING-O,32.7X3.5
920551646
€ 5.00
92066
920661006GD
ref: 92066
PLUG,36X7.5,G.GRAY
920661006GD
€ 11.00
92081
920811183
ref: 92081
SPRING,PROPELLER SHFT
920811183
€ 4.00
92116
921161004
ref: 92116
BEARING-ROLLER,4T3200
921161004
€ 53.50
