IGNITION SWITCH
ZG1000A4 CONCOURS 1989 CANADA

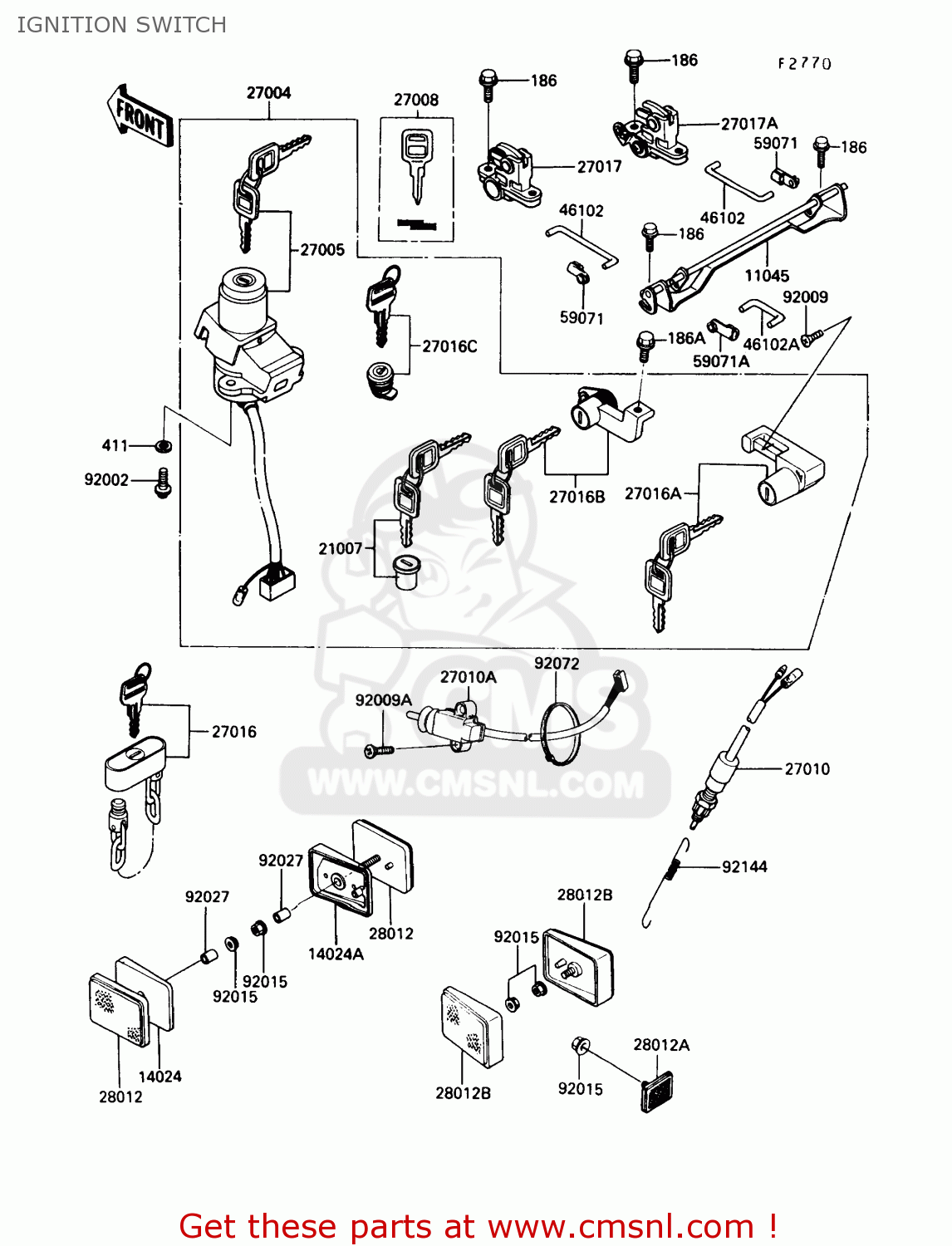

Ignition switch diagram ZG1000A4 CONCOURS 1989 CANADA
IGNITION SWITCH ZG1000A4 CONCOURS 1989 CANADA
×
prices are in EUR
ref
part #
description
quantity
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
186A
186C0616
ref: 186A
BOLT-UPSET-WP
€ 2.50
411
411E0600
ref: 411
W-PLAIN-S
€ 0.50
11045
110451544
ref: 11045
BRACKET,SEAT LOCK
€ 26.00
14024
140251886
ref: 14024
COVER,REFLECTOR,FR
€ 9.50
14024A
140251887
ref: 14024A
COVER,REFLECTOR,FR
€ 9.50
21007
210075017
ref: 21007
ROTOR,LOCK,TANK CAP
€ 65.50
27004
270045312
ref: 27004
SWITCH ASSEMBLY
€ 245.00
27005
270055064
ref: 27005
SWITCH-ASSY-IGNITION
€ 162.00
27008
270081103
ref: 27008
KEY-LOCK,BLANK
€ 13.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
€ 23.00
27010A
270101220
ref: 27010A
SWITCH,SIDE STAND
€ 60.00
27016
270161051
ref: 27016
LOCK-ASSY,WHEEL
€ 104.50
27016A
270165111
ref: 27016A
LOCK-ASSY,HELMET
€ 56.50
27016B
270165112
ref: 27016B
LOCK-ASSY,SEAT
€ 67.50
27016C
270165125
ref: 27016C
LOCK-ASSY
€ 48.00
27017
270171112
ref: 27017
LOCK,SEAT,LH
€ 61.50
27017A
270171113
ref: 27017A
LOCK,SEAT,RH
€ 61.50
28012
280121052
ref: 28012
REFLECTOR-REFLEX,FR
€ 17.50
28012A
280121054
ref: 28012A
REFLECTOR-REFLEX,RR
€ 15.00
28012B
280121056
ref: 28012B
REFLECTOR,REAR,REFLEX
€ 13.50
46102
461021187
ref: 46102
ROD,SEAT LOCK,FR
€ 5.50
46102A
461021188
ref: 46102A
ROD,SEAT LOCK,RR
€ 2.50
59071
590711103
ref: 59071
JOINT
€ 5.50
59071A
590711125
ref: 59071A
JOINT
€ 5.00
92002
920021333
ref: 92002
BOLT
€ 1.50
92009
920091401
ref: 92009
SCREW
€ 2.50
92009A
920091459
ref: 92009A
SCREW
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92027
920271789
ref: 92027
COLLAR,5X8X14.5
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92144
920811990
ref: 92144
SPRING,BRAKE LAMP SWI
€ 4.00
