FRONT FORK
ZG1000A4 CONCOURS 1989 CANADA

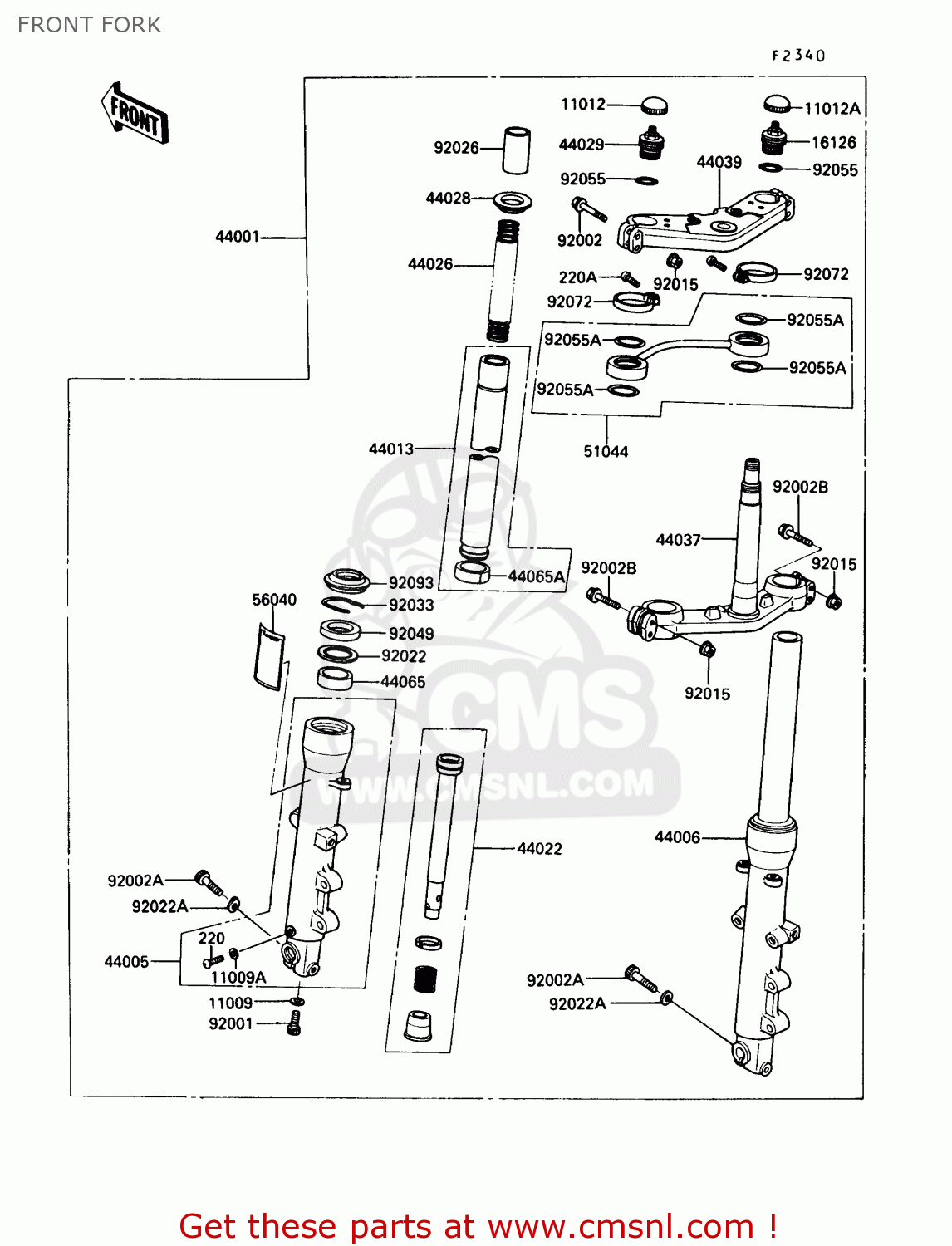

Front fork diagram ZG1000A4 CONCOURS 1989 CANADA
FRONT FORK ZG1000A4 CONCOURS 1989 CANADA
×
prices are in EUR
ref
part #
description
quantity
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
€ 2.50
220A
220E0412
ref: 220A
SCREW-PAN-CROS
€ 2.00
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121500
ref: 11012
CAP,FORK TOP
€ 8.00
11012A
110121501
ref: 11012A
CAP,FORK TOP
€ 8.00
16126
161261150
ref: 16126
VALVE
€ 29.00
44001
440011623
ref: 44001
FORK-FRONT
€ 1,887.00
44005
440051251
ref: 44005
PIPE-LEFT FORK OUTER
€ 331.00
44006
440061250
ref: 44006
PIPE-RIGHT FORK OUTER
€ 172.50
44013
440131254
ref: 44013
PIPE-FORK INNER
€ 174.00
44022
440221197
ref: 44022
CYLINDER-FORK
€ 63.50
44026
440261340
ref: 44026
SPRING-FRONT FORK
€ 48.50
44028
440281059
ref: 44028
GUIDE-FORK SPRING
€ 5.50
44029
440291122
ref: 44029
SEAT-FORK SPRING
€ 37.00
44037
440371198
ref: 44037
HOLDER-FORK UNDER
€ 490.00
44039
440391135
ref: 44039
HOLDER-FORK UPPER
€ 260.50
44065
440651064
ref: 44065
BUSHING-FRONT FORK
€ 21.00
44065A
440651081
ref: 44065A
BUSHING-FRONT FORK,IN
€ 13.00
51044
510441083
ref: 51044
TUBE-ASSY,FORK,AIR
€ 108.50
56040
560401117
ref: 56040
LABEL-WARNING,SHOCKAB
€ 2.50
92001
920011309
ref: 92001
BOLT,FORK CYLINDER
€ 4.50
92002
920021158
ref: 92002
BOLT,FLANGED,8X55
€ 6.00
92002A
920021847
ref: 92002A
BOLT,SOCKET,8X45
€ 3.00
92002B
920021848
ref: 92002B
BOLT,FLANGED,8X50
€ 9.00
92015
920151408
ref: 92015
NUT,FLANGED,8MM
€ 1.00
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92022A
920221598
ref: 92022A
WASHER
€ 4.50
92026
920261277
ref: 92026
SPACER,FORK SPRING
€ 4.50
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92049
920491273
ref: 92049
SEAL-OIL,FORK OUTER
€ 13.00
92055
920551052
ref: 92055
RING-O,FORK TOP
€ 2.50
92055A
920551106
ref: 92055A
RING-O,FORK AIR TUBE
€ 3.50
92072
920721157
ref: 92072
BAND
€ 5.50
92093
920931232
ref: 92093
SEAL,FORK OUTER TUBE
€ 14.00
