CLUTCH MASTER CYLINDER
ZG1000A4 CONCOURS 1989 CANADA

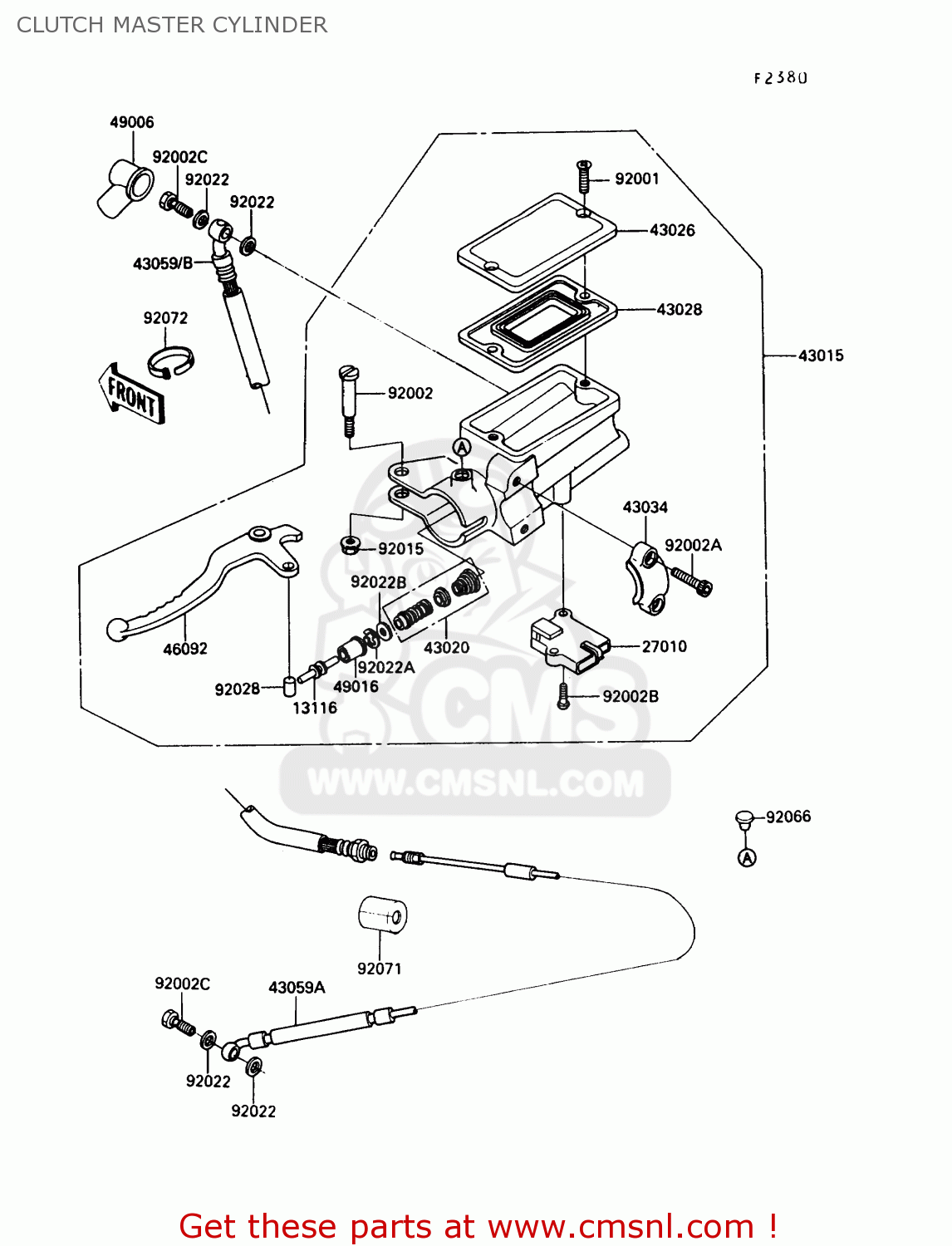

Clutch master cylinder diagram ZG1000A4 CONCOURS 1989 CANADA
CLUTCH MASTER CYLINDER ZG1000A4 CONCOURS 1989 CANADA
×
prices are in EUR
ref
part #
description
quantity
13116
131161110
ref: 13116
ROD-PUSH,MASTER CYLIN
€ 24.00
27010
270101171
ref: 27010
SWITCH,CLUTCH
€ 25.00
43015
430151318
ref: 43015
CYLINDER-ASSY-MASTER,
€ 280.50
43020
430201055
ref: 43020
PISTON-COMP-BRAKE,CLU
€ 47.50
43026
430261052
ref: 43026
CAP-BRAKE,FR
€ 41.00
43028
430281058
ref: 43028
DIAPHRAGM,MASTER CYLI
€ 15.50
43034
430341054
ref: 43034
HOLDER-BRAKE,MASTER C
€ 26.00
43059
430591339
ref: 43059
HOSE-CLUTCH,FOR LOW H
€ 49.00
43059A
430591340
ref: 43059A
HOSE-BRAKE,CLUTCH
€ 114.50
43059B
430591402
ref: 43059B
HOSE-CLUTCH,FOR UP HA
€ 30.00
46092
460921131
ref: 46092
LEVER-GRIP,CLUTCH
€ 12.00
49006
490061040
ref: 49006
BOOT,DUST
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
€ 7.00
92001
920011727
ref: 92001
BOLT,MASTER CYLINDER
€ 2.50
92002
920021322
ref: 92002
BOLT,LEVER SET
€ 8.00
92002A
920021324
ref: 92002A
BOLT,SOCKET,6X20
€ 5.00
92002B
920021325
ref: 92002B
BOLT
€ 4.00
92002C
920021888
ref: 92002C
BOLT,OIL,L=23
€ 3.50
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
€ 1.50
92022A
920221605
ref: 92022A
WASHER,PISTON
€ 3.00
92022B
920221606
ref: 92022B
WASHER,PISTON
€ 3.00
92028
920281310
ref: 92028
BUSHING,MASTER CYLIND
€ 10.00
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
€ 3.00
92071
920711143
ref: 92071
GROMMET
€ 4.00
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
