CAMSHAFT/TENSIONER
ZG1000A4 CONCOURS 1989 CANADA

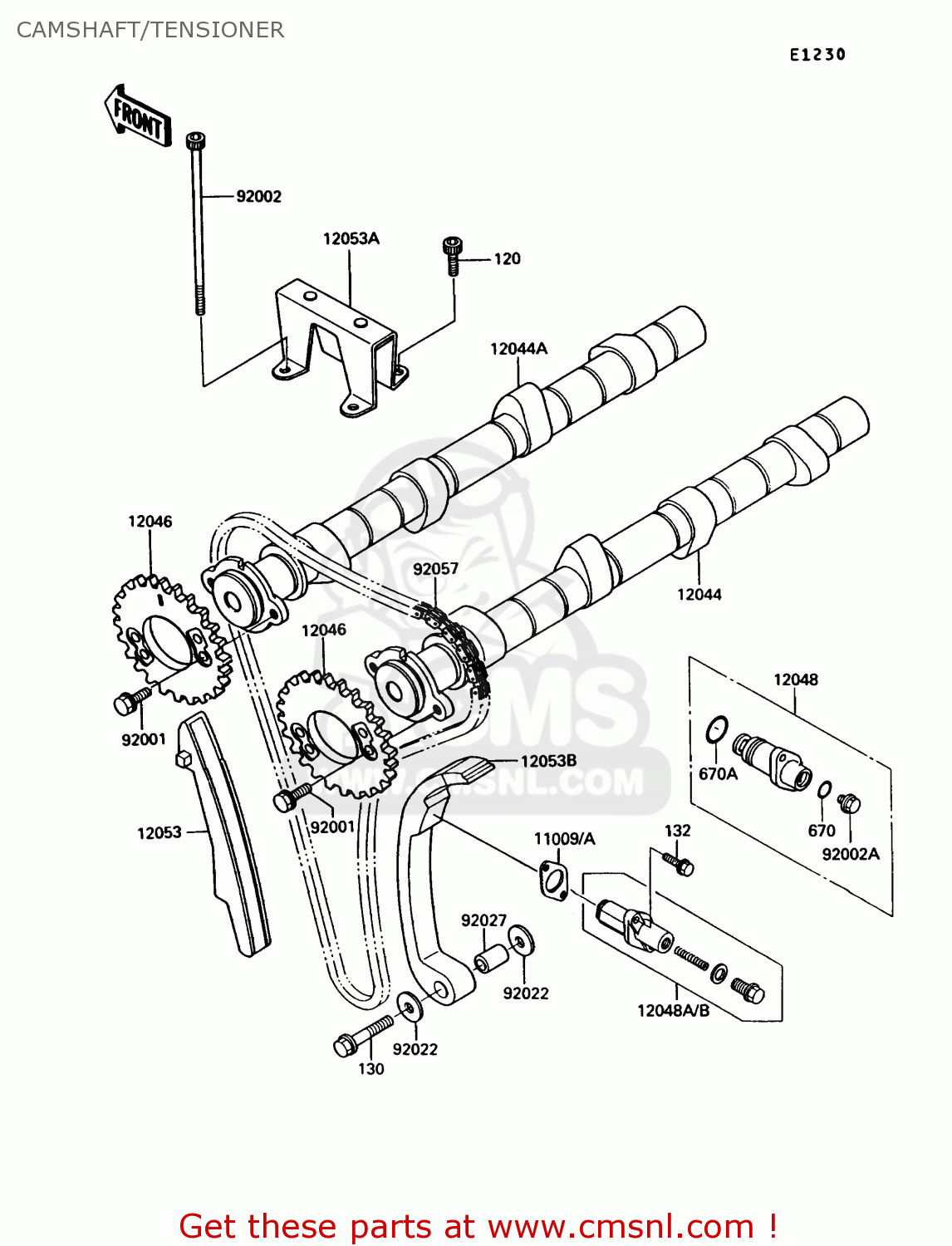

Camshaft/tensioner diagram ZG1000A4 CONCOURS 1989 CANADA
CAMSHAFT/TENSIONER ZG1000A4 CONCOURS 1989 CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120P0614
ref: 120
BOLT,6X14
€ 3.00
130
130G0835
ref: 130
BOLT,FLANGED,8X35
€ 1.00
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
670
670D2010
ref: 670
O RING,10MM
€ 1.00
670A
670D2021
ref: 670A
O RING,21MM
€ 5.00
11009A
110091858
ref: 11009A
GASKET,TENSIONER (NAS)
€ 3.00
12044
120441151
ref: 12044
CAMSHAFT-VALVE,INTAKE
€ 323.00
12044A
120441152
ref: 12044A
CAMSHAFT-VALVE,EXHAUS
€ 307.50
12046
120461082
ref: 12046
SPROCKET,CAMSHAFT,34T
€ 72.50
12048
120481087
ref: 12048
TENSIONER-ASSY,CAM CH
€ 112.00
12048B
120481089
ref: 12048B
TENSIONER-ASSY
€ 106.00
12053
120531114
ref: 12053
GUIDE-CHAIN,FR
€ 30.50
12053A
120531115
ref: 12053A
GUIDE-CHAIN,UPP
€ 27.00
12053B
120531239
ref: 12053B
GUIDE-CHAIN,RR
€ 58.00
92001
92003208
ref: 92001
BOLT,SPROCKET FITTING
€ 2.50
92002
920011904
ref: 92002
BOLT,6X118
€ 5.50
92002A
920021302
ref: 92002A
BOLT
€ 4.50
92022
920221533
ref: 92022
WASHER,8.2X19X2
€ 3.50
92027
920271763
ref: 92027
COLLAR,8.2X10.5X15.6
€ 4.00
92057
920571160
ref: 92057
CHAIN,CAMSHAFT
€ 35.50
